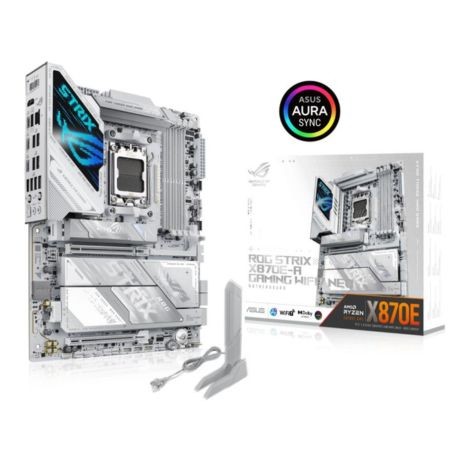

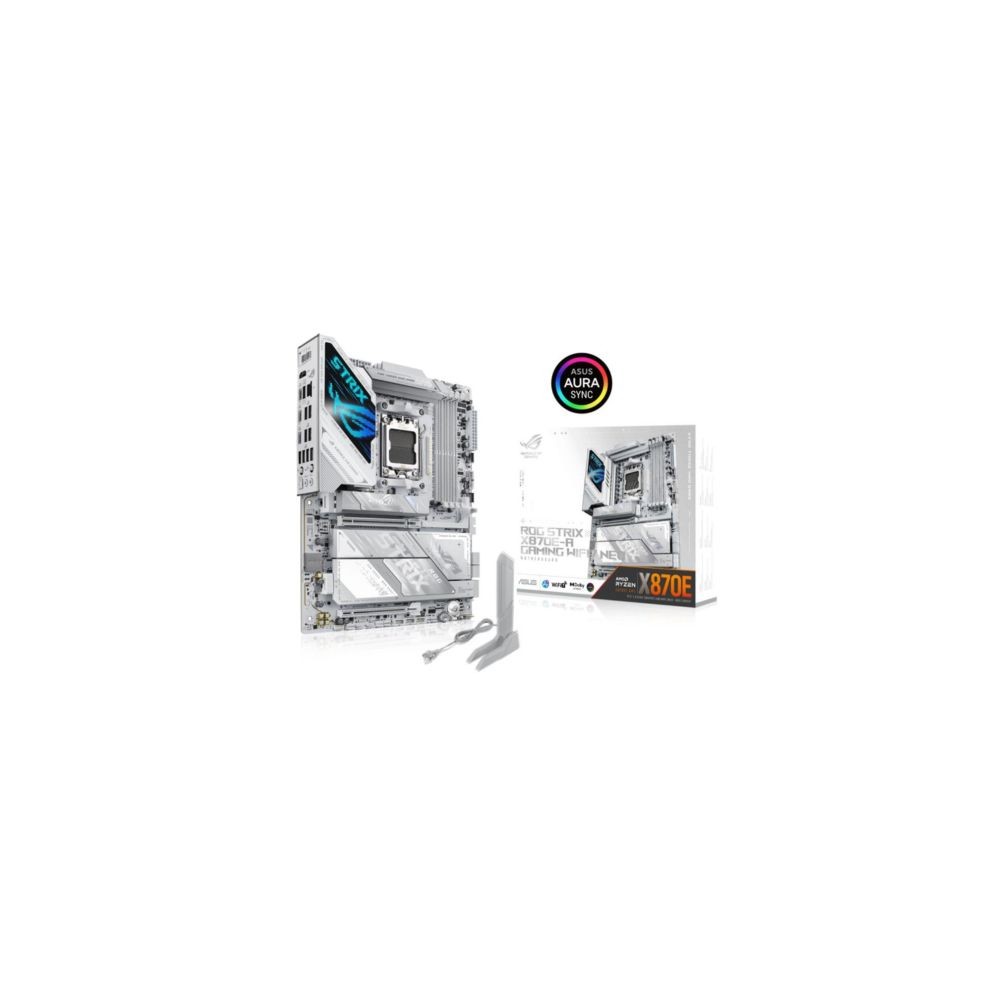

The ASUS ROG STRIX X870E-A GAMING WIFI7 NEO is an ATX motherboard designed for performance-focused desktop PCs built around compatible AMD Ryzen processors. Featuring the AMD X870E chipset and AM5 socket, it combines DDR5 memory support, PCIe 5.0 expansion, high-speed NVMe storage, Wi-Fi 7, and dual USB4 Type-C connectivity. Its distinctive white design makes it a strong choice for clean, modern PC builds.
Key Features
- AMD AM5 Platform: Supports compatible AMD Ryzen 9000, 8000, and 7000 Series desktop processors, subject to CPU and BIOS compatibility.
- Advanced DDR5 Memory: Four DIMM slots support up to 256GB of DDR5 memory, with AMD EXPO, DIMM Fit Pro, NitroPath DRAM Technology, and ASUS Enhanced Memory Profile support.
- PCIe 5.0 Expansion and Storage: Supports PCIe 5.0 graphics expansion with compatible processors and includes four M.2 slots for high-speed storage devices.
- Wi-Fi 7 and 5Gb Ethernet: Features Wi-Fi 7, Bluetooth 5.4, and Realtek 5Gb Ethernet for modern wireless and wired networking.
- Dual USB4 Connectivity: Two USB4 Type-C ports support data transfer up to 40Gbps and DisplayPort video output, with additional high-speed USB ports for compatible peripherals.
Processor and Memory Support
The AMD X870E chipset and AM5 socket support compatible Ryzen 9000, 8000, and 7000 Series desktop processors. Check the official ASUS CPU support list and required BIOS version before choosing a processor.
Four DDR5 DIMM slots provide dual-channel memory operation with a maximum supported capacity of 256GB. AMD EXPO, ASUS Enhanced Memory Profile, DIMM Fit, DIMM Fit Pro, and NitroPath DRAM Technology help configure and optimize compatible memory kits. Supported memory speeds vary by processor, memory configuration, and selected profile; listed overclocked speeds require compatible hardware and appropriate BIOS settings.
Expansion and Storage
The motherboard offers a primary PCIe 5.0 x16 graphics slot with compatible Ryzen 9000 and 7000 Series processors, along with a chipset-connected PCIe 4.0 x16 slot operating at up to x4. Expansion capabilities vary with the installed processor.
Four M.2 slots provide options for NVMe SSDs. With compatible Ryzen 9000 and 7000 Series processors, M.2_1 and M.2_2 support PCIe 5.0 x4, while M.2_3 and M.2_4 support PCIe 4.0 x4. Four SATA 6Gb/s connectors provide additional storage connectivity.
Storage bandwidth note: The M.2_2 slot shares bandwidth with the USB4 controller. Installing a drive in this slot can reduce the operating link width of both connections; configuring M.2_2 for x4 operation in BIOS disables the USB4 40Gbps ports. Review ASUS's slot-sharing documentation when planning your storage configuration.
Networking and Connectivity
Integrated Wi-Fi 7 supports compatible 2.4GHz, 5GHz, and 6GHz networks, while Bluetooth 5.4 supports compatible wireless peripherals. Realtek 5Gb Ethernet provides high-speed wired networking.
Rear connectivity includes two USB4 40Gbps Type-C ports with DisplayPort output support, six USB 10Gbps ports, four USB 5Gbps Type-A ports, HDMI, Ethernet, and audio connections. One rear USB Type-C port supports USB Power Delivery output of up to 30W under the specified operating conditions.
Audio and Cooling
ROG SupremeFX audio uses the ALC4080 codec and Savitech SV3H712 amplifier, with support for up to 32-bit/384kHz front-panel playback. Audio features include shielding technology and optical S/PDIF output.
Cooling provisions include a VRM heatsink design, M.2 heatsinks, one CPU fan header, one CPU optional fan header, one AIO pump header, and five chassis-fan headers. The listed package also includes an ROG assistant fan and DDR5 fan holder to support the motherboard's memory-cooling arrangement.
DC Supplies Product Note
The ASUS ROG STRIX X870E-A GAMING WIFI7 NEO combines a distinctive white finish with DDR5 memory support, four M.2 slots, Wi-Fi 7, 5Gb Ethernet, and dual USB4 connectivity. For best compatibility, confirm the processor, memory kit, graphics card, storage configuration, operating-system requirements, and PC case support before purchase.
Technical Specifications
| Brand | ASUS |
|---|
| Part Number / MPN | ROG STRIX X870E-A GAMING WIFI7 NEO |
|---|
| Product Type | ATX Desktop Motherboard |
|---|
| CPU Socket | AMD AM5 |
|---|
| Chipset | AMD X870E |
|---|
| Processor Support | Compatible AMD Ryzen 9000, 8000, and 7000 Series desktop processors; CPU and BIOS support must be verified |
|---|
| Memory Type | DDR5, ECC and non-ECC unbuffered DIMMs as supported |
|---|
| Memory Slots | 4 DIMM slots, dual-channel architecture |
|---|
| Maximum Memory Capacity | 256GB |
|---|
| Memory Overclocking | Up to 9600+ MT/s (OC) with supported Ryzen 8000 Series processors; maximum rated speeds vary by processor and memory profile |
|---|
| Memory Technologies | AMD EXPO, DIMM Fit, DIMM Fit Pro, NitroPath DRAM Technology, ASUS Enhanced Memory Profile |
|---|
| Primary Expansion Slot | 1 x PCIe 5.0 x16 with compatible Ryzen 9000 and 7000 Series processors; supported mode varies by CPU |
|---|
| Additional Expansion Slot | 1 x chipset-connected PCIe 4.0 x16 slot operating at up to x4 |
|---|
| M.2 Slots | 4 total: 2 x PCIe 5.0 x4 and 2 x PCIe 4.0 x4 with compatible processors; availability and operating modes vary by CPU |
|---|
| SATA Connectivity | 4 x SATA 6Gb/s |
|---|
| RAID Support | AMD RAIDXpert2, RAID 0/1/5/10 with supported Ryzen processors |
|---|
| Wired Networking | Realtek 5Gb Ethernet with ASUS LANGuard |
|---|
| Wireless Networking | Wi-Fi 7, 2x2, supporting 2.4GHz, 5GHz, and 6GHz bands |
|---|
| Bluetooth | Bluetooth 5.4 with LE Audio support |
|---|
| Audio | ROG SupremeFX ALC4080 codec with Savitech SV3H712 amplifier |
|---|
| Video Outputs | 1 x HDMI 2.1; 2 x USB4 Type-C with DisplayPort output support. Video output requires a compatible graphics source. |
|---|
| Rear USB Connectivity | 2 x USB4 40Gbps Type-C, 6 x USB 10Gbps (5 Type-A and 1 Type-C), 4 x USB 5Gbps Type-A |
|---|
| Front USB Connectivity | 1 x USB 20Gbps Type-C connector, 1 x USB 5Gbps Type-C connector, 2 x USB 5Gbps headers supporting 4 ports, and 3 x USB 2.0 headers supporting 6 ports |
|---|
| Cooling Headers | 1 x CPU fan, 1 x CPU OPT fan, 1 x AIO pump, 5 x chassis fan |
|---|
| Power Connectors | 1 x 24-pin main power, 2 x 8-pin +12V CPU power |
|---|
| Form Factor | ATX |
|---|
| Dimensions | 30.5 x 24.4 cm (12 x 9.6 inches) |
|---|
| Operating System Support | Windows 11, version 22H2 or later, as listed by ASUS |
|---|
Frequently Asked Questions
Which processors are compatible with this motherboard?
It supports compatible AMD Ryzen 9000, 8000, and 7000 Series desktop processors using the AM5 socket. Consult the ASUS CPU support list for the exact processor and BIOS requirements.
Does this motherboard support DDR4 memory?
No. It is designed for DDR5 memory and is not compatible with DDR4 DIMMs.
How many M.2 SSDs can be installed?
There are four M.2 slots. Supported interfaces and operating modes depend on the processor. The M.2_2 slot also shares bandwidth with the USB4 controller, so check the configuration requirements if you plan to use both.
Does the motherboard support Wi-Fi 7?
Yes. Wi-Fi 7 and Bluetooth 5.4 are integrated. Full Wi-Fi 7 functionality requires a compatible operating system and network equipment, and 6GHz availability depends on local regulations.
Can the USB4 ports be used for display output?
Yes. Both USB4 Type-C ports support DisplayPort video output. Display functionality depends on a compatible processor with integrated graphics or another supported graphics source.
What case is required for this motherboard?
The motherboard uses the ATX form factor and measures approximately 30.5 x 24.4 cm. Select a PC case that supports ATX motherboards and provides sufficient clearance for your chosen components.
