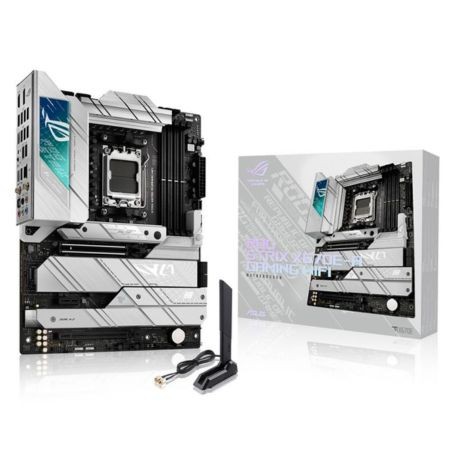

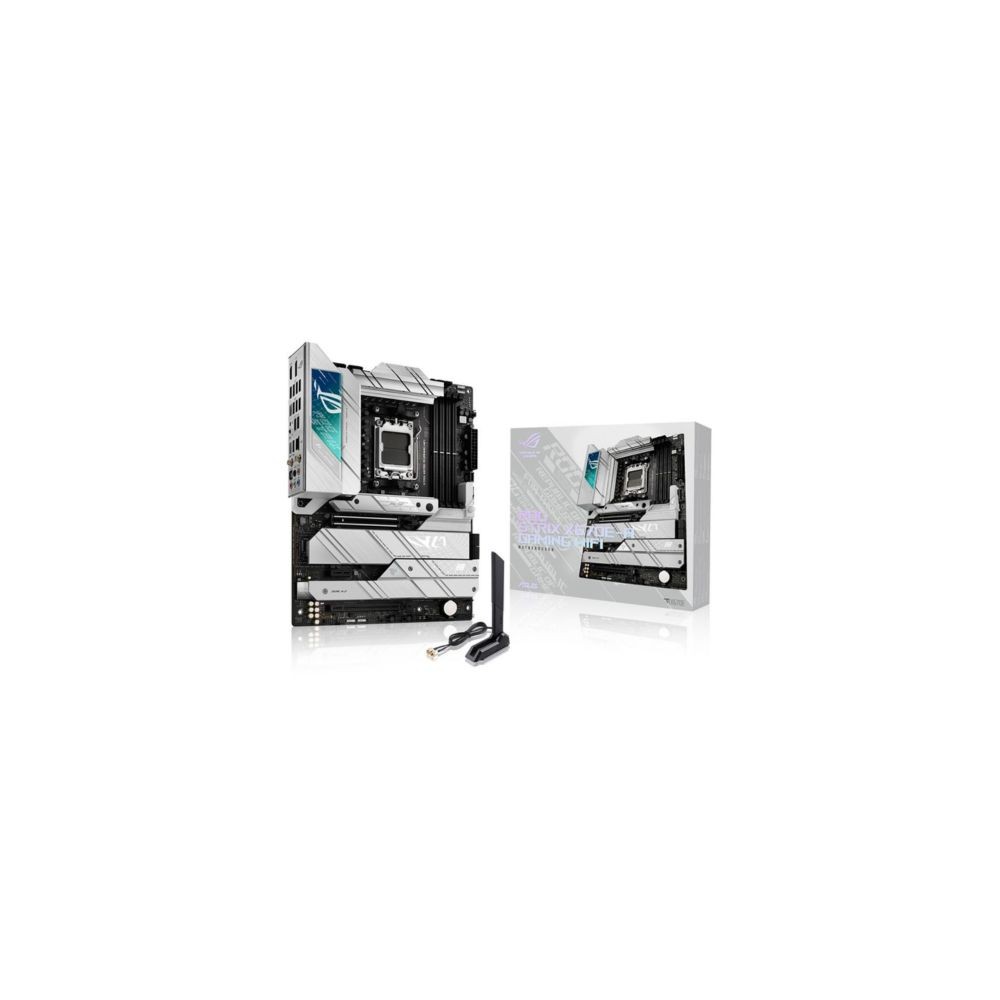

The ASUS ROG STRIX X670E-A GAMING WIFI is an ATX motherboard designed for desktop systems built around compatible AMD Ryzen processors. Powered by the AMD X670 chipset and AM5 socket, it combines DDR5 memory support, high-speed expansion, flexible storage options, and integrated wireless networking in a distinctive ROG Strix design.
Key Features
- AMD AM5 Platform: Supports compatible AMD Ryzen 9000, 8000, and 7000 Series desktop processors, subject to CPU support and BIOS requirements.
- DDR5 Memory: Four DIMM slots support dual-channel DDR5 memory, AMD EXPO memory overclocking profiles, and a maximum capacity of up to 192GB, depending on processor and memory configuration.
- PCIe Expansion: Provides a PCIe 5.0 x16 slot with supported Ryzen 9000 and 7000 Series processors, plus additional expansion slots. Slot capabilities vary by processor.
- Flexible Storage: Four M.2 slots and four SATA 6Gb/s ports provide options for compatible NVMe SSDs and SATA storage devices.
- Integrated Connectivity: Features Wi-Fi 6E, Bluetooth 5.2, Intel 2.5Gb Ethernet, USB Type-C connectivity, and SupremeFX audio.
Performance and Platform
The AMD X670 chipset and AM5 socket provide a foundation for compatible Ryzen desktop processors. Four DDR5 memory slots support dual-channel operation and AMD EXPO profiles, allowing users to configure compatible memory for their system requirements. Supported memory speeds depend on the processor, DIMM configuration, and memory kit.
Expansion and Storage
The motherboard includes four M.2 slots and four SATA 6Gb/s connectors. With supported Ryzen 9000 and 7000 Series processors, the first two M.2 slots support PCIe 5.0 x4 storage. Supported Ryzen 8000 Series processors can provide different M.2 and expansion-slot capabilities. Check the official specifications for processor-specific lane and slot details before selecting components.
Networking and Connectivity
Integrated Wi-Fi 6E and Bluetooth 5.2 provide wireless connectivity, while Intel 2.5Gb Ethernet offers a wired networking option. Rear connections include USB Type-A and Type-C ports, DisplayPort, HDMI, audio jacks, and optical S/PDIF. Wi-Fi 6E 6GHz availability depends on local regulations and compatible operating-system support.
Audio and Cooling Support
ROG SupremeFX audio, based on the ALC4080 codec, supports high-definition audio features and up to 32-bit/384kHz playback. The board also provides dedicated CPU, AIO pump, and chassis fan headers, along with heatsinks for supported motherboard components to assist with thermal management.
DC Supplies Product Note
The ROG STRIX X670E-A GAMING WIFI offers a combination of DDR5 support, four M.2 slots, PCIe 5.0 capabilities with supported processors, and integrated Wi-Fi 6E. For the best compatibility, confirm the exact CPU, BIOS version, memory kit, and expansion-device requirements before assembling your system.
Technical Specifications
| Brand | ASUS |
|---|
| Part Number / MPN | ROG STRIX X670E-A GAMING WIFI |
|---|
| Product Type | ATX Desktop Motherboard |
|---|
| CPU Socket | AMD AM5 |
|---|
| Chipset | AMD X670 |
|---|
| Processor Support | Compatible AMD Ryzen 9000, 8000, and 7000 Series desktop processors; support depends on CPU and BIOS |
|---|
| Memory Type | DDR5, ECC and non-ECC unbuffered memory support as specified by ASUS |
|---|
| Memory Slots | 4 DIMM slots, dual-channel architecture |
|---|
| Maximum Memory Capacity | Up to 192GB, subject to CPU and memory configuration |
|---|
| Memory Overclocking | AMD EXPO support; supported speeds depend on system configuration |
|---|
| Expansion Slots | 1 x PCIe 5.0 x16 with supported Ryzen 9000/7000 processors; additional PCIe 4.0 x16 and PCIe 3.0 x1 slots with processor-dependent capabilities |
|---|
| M.2 Slots | 4 x M.2; PCIe 5.0 or PCIe 4.0 support depends on slot and processor |
|---|
| SATA Connectivity | 4 x SATA 6Gb/s |
|---|
| Wired Networking | Intel 2.5Gb Ethernet |
|---|
| Wireless Networking | Wi-Fi 6E |
|---|
| Bluetooth | Bluetooth 5.2 |
|---|
| Audio | ROG SupremeFX ALC4080, 7.1-channel HD audio support |
|---|
| Video Outputs | 1 x DisplayPort 1.4; 1 x HDMI 2.1. Display capability depends on the processor's graphics support. |
|---|
| Rear USB | 12 ports: 1 x USB 3.2 Gen 2x2 Type-C, 8 x USB 3.2 Gen 2 (7 Type-A and 1 Type-C), 1 x USB 3.2 Gen 1 Type-A, and 2 x USB 2.0 Type-A |
|---|
| Form Factor | ATX |
|---|
| Dimensions | 30.5 x 24.4 cm (12 x 9.6 inches) |
|---|
| Operating System Support | Windows 11 and Windows 10 64-bit, as listed by ASUS |
|---|
Frequently Asked Questions
Which processors are compatible with this motherboard?
It supports compatible AMD Ryzen 9000, 8000, and 7000 Series desktop processors using the AM5 socket. Check ASUS's CPU support list and BIOS requirements for the exact processor you intend to install.
Does the motherboard support DDR4 memory?
No. This motherboard is designed for DDR5 memory and does not support DDR4 DIMMs.
How many M.2 SSDs can be installed?
The motherboard has four M.2 slots. Supported drive sizes and PCIe operating modes vary by slot and processor generation.
Does it include wireless networking?
Yes. Wi-Fi 6E and Bluetooth 5.2 are integrated. Availability of the 6GHz Wi-Fi band depends on regional regulations and compatible software.
Does it have onboard display outputs?
Yes. It provides DisplayPort and HDMI outputs, but these require a compatible processor with supported integrated graphics to produce a display signal.
What is the motherboard's form factor?
It uses the ATX form factor and measures approximately 30.5 x 24.4 cm. Check that your PC case supports ATX motherboards before installation.
