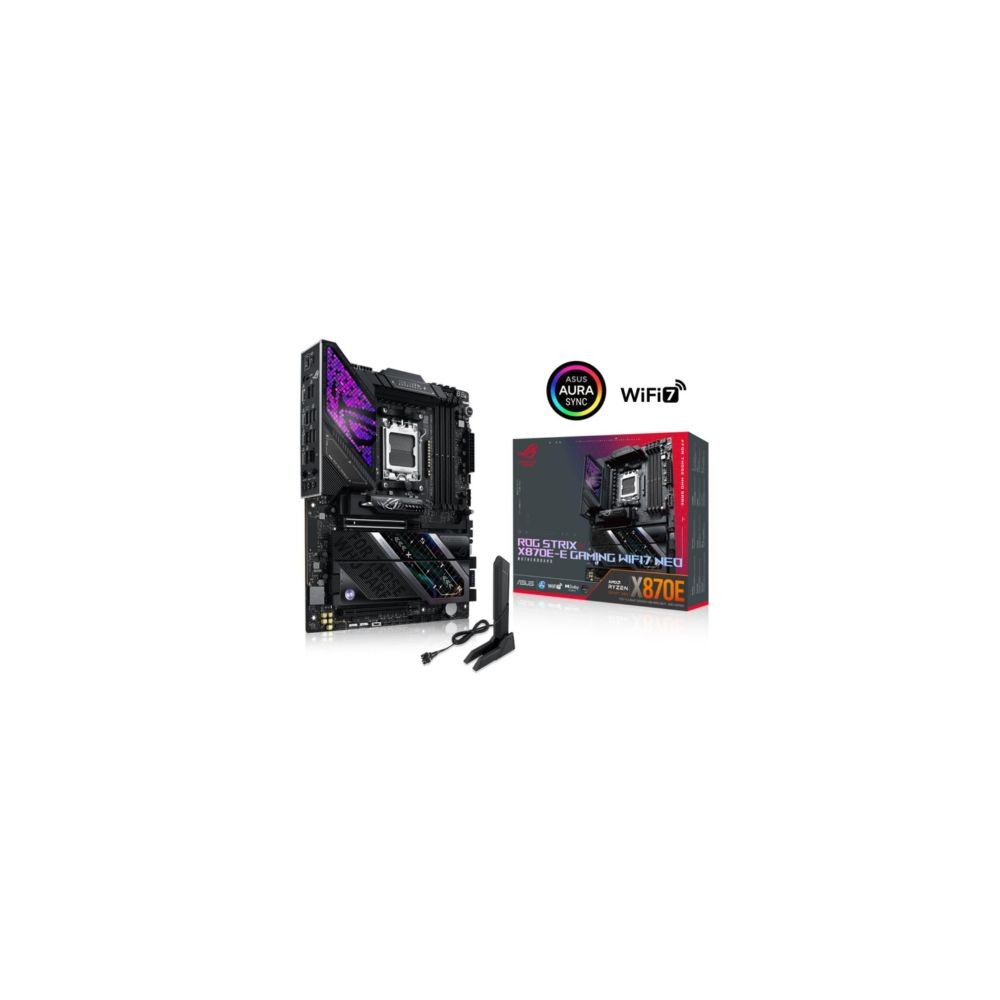

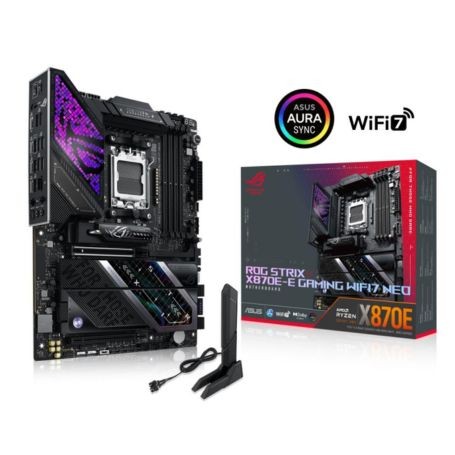

The ASUS ROG Strix X870E-E Gaming WiFi7 Neo is an enthusiast-class ATX motherboard designed for high-performance gaming PCs and advanced desktop workstations. Built around the AMD X870E chipset and AM5 socket, it supports compatible AMD Ryzen 9000, 8000, and 7000 Series desktop processors.
With DDR5 memory, PCIe 5.0 expansion, five M.2 storage sockets, Wi-Fi 7, 5Gb Ethernet, and dual USB4 Type-C connectivity, this motherboard combines high-speed data access with extensive connectivity and cooling features.
Key Features
- AMD AM5 platform: Supports compatible Ryzen 9000, 8000, and 7000 Series desktop processors.
- DDR5 memory: Four DIMM slots support up to 256GB of dual-channel memory, with overclocked speeds dependent on the processor and memory configuration.
- PCIe 5.0 support: Provides a PCIe 5.0 x16 graphics slot with supported processors and two PCIe 5.0 M.2 storage connections.
- Advanced networking: Combines Wi-Fi 7 wireless networking with 5Gb Ethernet for high-speed wired connectivity.
- Extensive connectivity: Includes dual USB4 40Gbps Type-C ports, five M.2 slots, four SATA ports, and a USB Type-C port supporting up to 30W PD/PPS fast charging.
Processor and Memory Support
The AMD AM5 socket supports compatible AMD Ryzen 9000, 8000, and 7000 Series desktop processors. Four DDR5 DIMM slots provide dual-channel memory architecture and support up to 256GB of memory.
Memory features include AMD EXPO, ASUS Enhanced Memory Profile (AEMP), DIMM Fit, DIMM Fit Pro, and NitroPath DRAM Technology. ASUS lists overclocked memory speeds of up to 8600+ MT/s with Ryzen 9000 Series processors, 9600+ MT/s with Ryzen 8000 Series processors, and 8000+ MT/s with Ryzen 7000 Series processors under specified configurations. Actual speeds depend on the CPU, memory modules, BIOS settings, and system configuration.
Graphics and Expansion
The motherboard provides a primary PCIe 5.0 x16 expansion slot for compatible graphics cards when used with supported Ryzen 9000 and 7000 Series processors. Supported Ryzen 8000 Series processors may operate the primary slot at PCIe 4.0 with reduced lane configurations, depending on the specific processor.
A secondary chipset-connected PCIe 4.0 x16 physical slot operates at up to x4. Its availability is affected by storage configuration because the M.2_3 socket shares bandwidth with this expansion slot.
Display connectivity includes one HDMI 2.1 output and two USB4 Type-C ports with DisplayPort Alt Mode. Display output capabilities depend on the installed processor and its graphics support.
Five M.2 Storage Slots
The motherboard includes five M.2 sockets for compatible solid-state drives. Two CPU-connected sockets support PCIe 5.0 x4 with compatible Ryzen 9000 and 7000 Series processors. The other three sockets support PCIe 4.0 x4 through the AMD X870E chipset.
Four SATA 6Gb/s ports provide additional connectivity for compatible SATA SSDs and hard drives. AMD RAIDXpert2 supports RAID 0, 1, 5, and 10 with compatible processors and storage configurations.
Storage bandwidth considerations: The M.2_2 socket shares bandwidth with the rear USB4 ports. With a device installed in M.2_2, both the M.2 connection and USB4 controller operate at x2 by default. Switching M.2_2 to x4 in the BIOS disables the USB4 ports. The M.2_3 socket also shares bandwidth with the secondary PCIe 4.0 slot; installing an SSD in M.2_3 disables that slot.
Wi-Fi 7 and 5Gb Ethernet
Integrated Wi-Fi 7 uses a MediaTek MT7927 wireless module and supports 2.4GHz, 5GHz, and 6GHz bands, with supported channel widths up to 320MHz. Actual wireless performance depends on compatible networking equipment, operating-system support, signal conditions, and regional regulations.
Realtek 5Gb Ethernet provides high-speed wired networking for compatible network infrastructure. The included ASUS WiFi Q-Antenna supports wireless connectivity.
USB4 and Rear Connectivity
Two rear USB4 Type-C ports support data transfer rates up to 40Gbps and DisplayPort Alt Mode. The rear panel also includes eleven USB 10Gbps ports, comprising nine Type-A ports and two Type-C ports. One of the Type-C ports supports up to 30W USB Power Delivery and PPS fast charging.
Internal headers provide two USB 20Gbps Type-C connectors, two USB 5Gbps headers supporting additional front-panel ports, and three USB 2.0 headers. Available front-panel connectivity depends on the case and connected devices.
Power Delivery and Cooling
The motherboard features an 18+2+2 power-stage design, dual ProCool II CPU power connectors, and dedicated thermal solutions for the voltage-regulation area, chipset, and M.2 storage.
Cooling connections include a CPU fan header, CPU optional fan header, AIO pump header, and five chassis fan headers. The included ROG assistant fan and DDR5 fan holder provide additional cooling accessories for supported configurations.
Audio and Personalization
ROG SupremeFX audio combines the Realtek ALC4080 codec with a Savitech SV3H712 amplifier. The rear panel includes two audio jacks and an optical S/PDIF output. Supported audio features include Dolby Atmos.
Polymo Lighting provides customizable motherboard illumination, while three Addressable Gen 2 RGB headers support compatible lighting components through ASUS Aura Sync. BIOS FlashBack, Clear CMOS, Q-Code, Q-LED, M.2 Q-Release, M.2 Q-Slide, and PCIe Slot Q-Release provide additional system setup and maintenance features.
Specifications
| Brand | ASUS |
|---|
| Part Number / MPN | ROG STRIX X870E-E GAMING WIFI7 NEO |
|---|
| Product Type | ATX Desktop Motherboard |
|---|
| Product Series | ROG Strix |
|---|
| CPU Socket | AMD AM5 |
|---|
| Chipset | AMD X870E |
|---|
| Supported Processors | Compatible AMD Ryzen 9000, 8000, and 7000 Series desktop processors |
|---|
| Memory Type | DDR5 |
|---|
| Memory Slots | 4 × DIMM |
|---|
| Maximum Memory Capacity | 256GB |
|---|
| Memory Architecture | Dual channel |
|---|
| Memory Overclocking | Up to 8600+ MT/s, 9600+ MT/s, or 8000+ MT/s depending on CPU series and configuration |
|---|
| Primary Expansion Slot | 1 × PCIe 5.0 x16 with supported CPUs |
|---|
| Secondary Expansion Slot | 1 × PCIe 4.0 x16 physical slot, operating at up to x4 |
|---|
| M.2 Slots | 5 × M.2 Key M |
|---|
| PCIe 5.0 Storage | 2 × M.2 PCIe 5.0 x4 with supported Ryzen 9000/7000 processors |
|---|
| PCIe 4.0 Storage | 3 × M.2 PCIe 4.0 x4 |
|---|
| SATA Ports | 4 × SATA 6Gb/s |
|---|
| RAID Support | RAID 0, 1, 5, and 10 with supported configurations |
|---|
| Wireless Networking | Wi-Fi 7 (802.11be), 2×2 |
|---|
| Wireless Module | MediaTek MT7927 |
|---|
| Wired Networking | Realtek 5Gb Ethernet |
|---|
| Rear USB4 | 2 × USB4 Type-C, up to 40Gbps |
|---|
| Rear USB 10Gbps | 11 ports: 9 × Type-A and 2 × Type-C; one Type-C supports up to 30W PD/PPS |
|---|
| Internal USB Type-C | 2 × USB 20Gbps connectors |
|---|
| Display Outputs | 1 × HDMI 2.1; 2 × USB4 Type-C with DisplayPort Alt Mode |
|---|
| Audio Codec | Realtek ALC4080 with Savitech SV3H712 amplifier |
|---|
| Power Stages | 18+2+2 |
|---|
| Fan Headers | 1 × CPU, 1 × CPU OPT, 1 × AIO pump, 5 × chassis fan |
|---|
| RGB Headers | 3 × Addressable Gen 2 RGB |
|---|
| Form Factor | ATX |
|---|
| Dimensions | 30.5 × 24.4 cm (12 × 9.6 inches) |
|---|
| Operating System | Windows 11 |
|---|
Included Accessories
- ASUS WiFi Q-Antenna
- 2 × SATA 6Gb/s cables
- ROG assistant fan, 60mm
- DDR5 fan holder and cooling-kit screw package
- M.2 Q-Latch and Q-Slide accessories
- Cable ties and M.2 rubber accessories
- ROG Strix stickers and key chain
- Quick start guide
Refer to the manufacturer's documentation and the specific regional retail package for the complete accessory list.
Compatibility and Installation
Use a compatible AM5 processor and DDR5 memory kit. Check ASUS's official CPU support list and required BIOS version before installation. Confirm that your case supports the ATX form factor and provides adequate clearance for your graphics card, CPU cooler, power supply, and storage devices.
Review the motherboard manual before populating all M.2 sockets, particularly if you intend to use the rear USB4 ports or secondary PCIe slot. Processor choice affects available PCIe lanes and M.2 operating modes.
For full Wi-Fi 7 functionality, ASUS specifies Windows 11 version 24H2 or later. Wireless features and 6GHz availability depend on regional regulations and compatible network equipment.
Frequently Asked Questions
Which processors are supported?
The motherboard supports compatible AMD Ryzen 9000, 8000, and 7000 Series desktop processors using the AM5 socket. Consult ASUS's CPU support list for specific models and BIOS requirements.
How much RAM can it support?
It supports up to 256GB of DDR5 memory across four DIMM slots. Supported memory speeds depend on the processor, memory kit, and configuration.
How many M.2 SSDs can be installed?
There are five M.2 sockets: two PCIe 5.0 x4 sockets with supported processors and three PCIe 4.0 x4 sockets. Review the manual for bandwidth-sharing limitations before installing drives in every socket.
Does this motherboard support Wi-Fi 7?
Yes. It includes a MediaTek MT7927 Wi-Fi 7 module and Realtek 5Gb Ethernet. Full Wi-Fi 7 functionality requires compatible software, operating-system support, and network equipment.
What is the USB4 bandwidth limitation?
The rear USB4 controller shares bandwidth with the M.2_2 socket. Installing an SSD in M.2_2 reduces both connections to x2 by default. Configuring M.2_2 for x4 in the BIOS disables the USB4 ports.
Will it fit in my PC case?
The motherboard measures 30.5 × 24.4 cm and uses the ATX form factor. Check your case specifications and component clearances before purchase.
DC Supplies Product Note
The ASUS ROG Strix X870E-E Gaming WiFi7 Neo combines an AMD X870E platform, DDR5 memory support up to 256GB, five M.2 sockets, PCIe 5.0 connectivity, Wi-Fi 7, and 5Gb Ethernet. Before ordering, verify processor and memory compatibility and review the shared-bandwidth limitations if you plan to populate multiple M.2 sockets.
