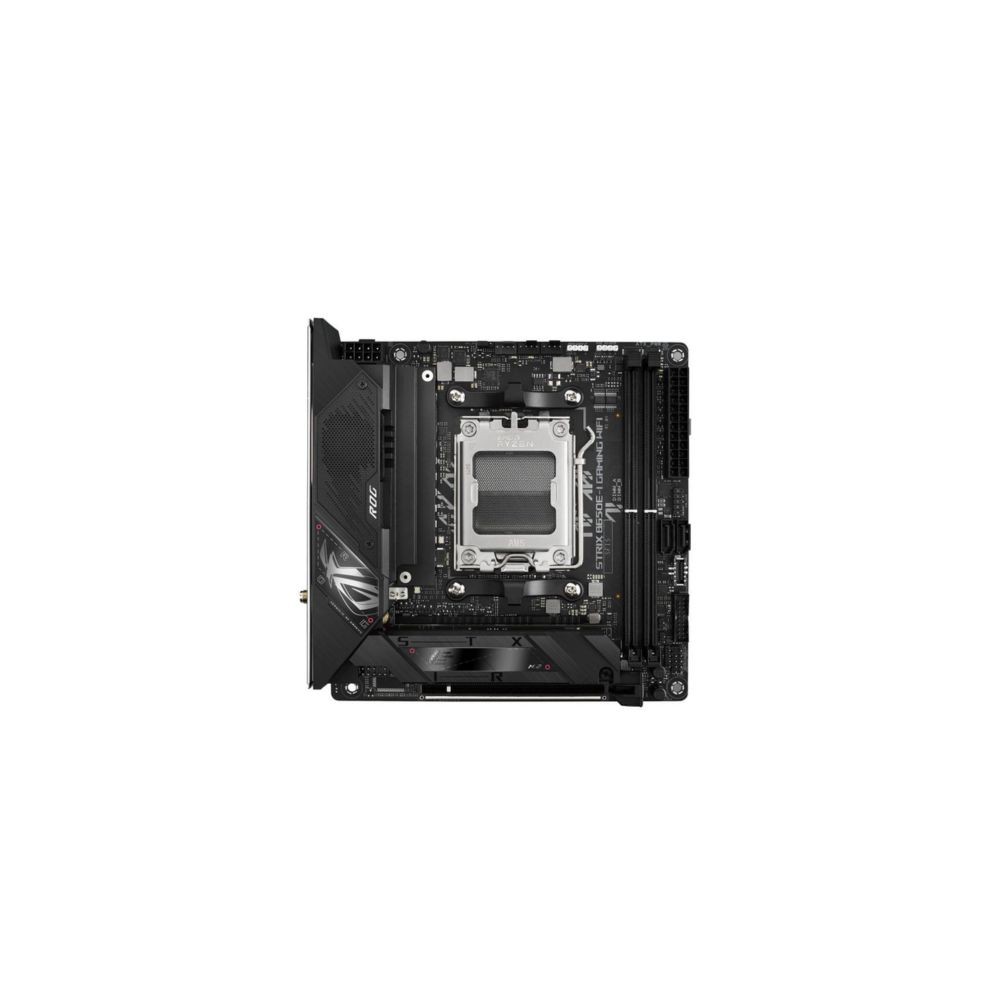

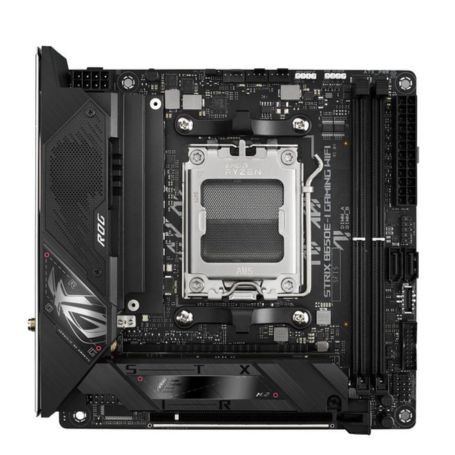

The ASUS ROG Strix B650E-I Gaming WiFi is a Mini-ITX motherboard designed for compact gaming systems and small-form-factor desktop PCs. Built around the AMD B650E chipset and AM5 socket, it supports compatible AMD Ryzen 7000 Series desktop processors and DDR5 memory.
With PCIe 5.0 graphics and storage support, dual M.2 slots, Wi-Fi 6E, and 2.5Gb Ethernet, this motherboard combines high-speed connectivity and essential gaming features in a compact 17 × 17 cm design.
Key Features
- AMD AM5 platform: Supports compatible AMD Ryzen 7000 Series desktop processors.
- DDR5 memory: Two DIMM slots support dual-channel memory and AMD EXPO memory overclocking profiles.
- PCIe 5.0 expansion: Includes a PCIe 5.0 x16 graphics card slot for compatible devices.
- Dual M.2 storage: Supports one PCIe 5.0 x4 M.2 drive and one PCIe 4.0 x4 M.2 drive with supported processors.
- Modern connectivity: Features Wi-Fi 6E, Bluetooth, Intel 2.5Gb Ethernet, and USB Type-C connectivity.
Processor and Memory Support
The AMD AM5 socket supports compatible AMD Ryzen 7000 Series desktop processors. Two DDR5 DIMM slots provide dual-channel memory operation, while AMD EXPO and ASUS OptiMem II technologies support memory configuration and optimization.
ASUS specifies memory speeds up to DDR5-6400+ MT/s through overclocking, depending on the processor and memory configuration. Actual supported speeds depend on the installed CPU, memory kit, BIOS version, and system settings.
Graphics and Expansion
The motherboard features one PCIe 5.0 x16 expansion slot for a compatible graphics card. The reinforced SafeSlot design provides additional support for installed expansion hardware.
Display connectivity includes one HDMI 2.1 output supporting up to 4K at 60Hz and one USB Type-C port with DisplayPort output functionality. Display output availability and capabilities depend on the installed processor and its graphics support.
Storage Connectivity
Two M.2 sockets support compatible 2242, 2260, and 2280 storage devices. The primary M.2 socket supports PCIe 5.0 x4, while the secondary socket supports PCIe 4.0 x4 with supported Ryzen 7000 Series processors.
Two SATA 6Gb/s ports provide additional connectivity for compatible SATA SSDs and hard drives. AMD RAIDXpert2 supports compatible PCIe and SATA RAID 0 and RAID 1 configurations.
Networking and USB Connectivity
Integrated Wi-Fi 6E supports compatible 2.4GHz, 5GHz, and 6GHz wireless networks. Bluetooth provides connectivity for compatible wireless accessories, while Intel 2.5Gb Ethernet supports high-speed wired networking.
The rear I/O panel includes one USB 3.2 Gen 2x2 Type-C port, four USB 3.2 Gen 2 Type-A ports, one USB 3.2 Gen 2 Type-C port with DisplayPort Alt Mode, and two USB 2.0 Type-A ports. Internal headers provide additional front-panel USB connectivity for compatible PC cases.
Audio and Cooling Features
ROG SupremeFX audio uses the Realtek ALC4080 codec and Savitech SV3H712 amplifier. The motherboard also includes optical S/PDIF digital audio output and dedicated audio connections.
Cooling-related features include VRM heatsinks, M.2 heatsinks, a CPU fan header, an AIO pump header, and a chassis fan header. BIOS FlashBack, FlexKey, Q-Design features, and Aura Sync lighting support help simplify system setup and customization.
Specifications
| Brand | ASUS |
|---|
| Part Number / MPN | ROG STRIX B650E-I GAMING WIFI |
|---|
| Product Type | Mini-ITX Desktop Motherboard |
|---|
| Product Series | ROG Strix |
|---|
| CPU Socket | AMD AM5 |
|---|
| Chipset | AMD B650E |
|---|
| Supported Processors | Compatible AMD Ryzen 7000 Series desktop processors |
|---|
| Memory Type | DDR5 |
|---|
| Memory Slots | 2 × DIMM |
|---|
| Maximum Memory Capacity | 64GB |
|---|
| Memory Architecture | Dual channel |
|---|
| Memory Overclocking | Up to DDR5-6400+ MT/s, depending on configuration |
|---|
| Expansion Slot | 1 × PCIe 5.0 x16 |
|---|
| M.2 Slots | 2 × M.2 Key M, supporting 2242/2260/2280 devices |
|---|
| Primary M.2 Interface | PCIe 5.0 x4 |
|---|
| Secondary M.2 Interface | PCIe 4.0 x4 |
|---|
| SATA Ports | 2 × SATA 6Gb/s |
|---|
| Wireless Networking | Wi-Fi 6E, 2×2 |
|---|
| Bluetooth | Bluetooth 5.2, subject to module specifications |
|---|
| Wired Networking | Intel 2.5Gb Ethernet |
|---|
| Rear USB | 1 × USB 3.2 Gen 2x2 Type-C, 5 × USB 3.2 Gen 2 (4 Type-A and 1 Type-C), 2 × USB 2.0 Type-A |
|---|
| Display Outputs | 1 × HDMI 2.1; 1 × USB Type-C with DisplayPort output |
|---|
| Audio Codec | ROG SupremeFX ALC4080 with Savitech SV3H712 amplifier |
|---|
| Form Factor | Mini-ITX |
|---|
| Dimensions | 17 × 17 cm (6.7 × 6.7 inches) |
|---|
| Operating System Support | Windows 11 64-bit and Windows 10 64-bit, as listed by ASUS |
|---|
Compatibility and Installation
Use a compatible AM5 processor and DDR5 memory kit. Check the official CPU support list and required BIOS version before installation. The case must support the Mini-ITX motherboard form factor and provide suitable clearance for the CPU cooler, graphics card, power supply, and storage devices.
Memory speeds and certain display functions depend on the installed processor and configuration. Verify component compatibility against the official motherboard manual before assembling the system.
Frequently Asked Questions
Which processors are supported?
The motherboard supports compatible AMD Ryzen 7000 Series desktop processors using the AM5 socket. Refer to ASUS's CPU support list for specific models and BIOS requirements.
How much RAM does the motherboard support?
It has two DDR5 DIMM slots and supports up to 64GB of memory. Supported speeds depend on the processor and memory configuration.
Does it support PCIe 5.0 SSDs?
Yes. The primary M.2 socket supports PCIe 5.0 x4 storage, while the secondary M.2 socket supports PCIe 4.0 x4.
Does the motherboard include Wi-Fi?
Yes. It includes Wi-Fi 6E, Bluetooth connectivity, and Intel 2.5Gb Ethernet.
Will it fit in a small-form-factor case?
The motherboard measures 17 × 17 cm and uses the Mini-ITX form factor. Confirm that your case supports Mini-ITX motherboards and provides adequate clearance for your other components.
DC Supplies Product Note
The ASUS ROG Strix B650E-I Gaming WiFi combines an AM5 platform, DDR5 memory, PCIe 5.0 graphics and storage support, and Wi-Fi 6E in a compact Mini-ITX design. Check CPU compatibility, memory requirements, and case clearance before ordering.
