Overview

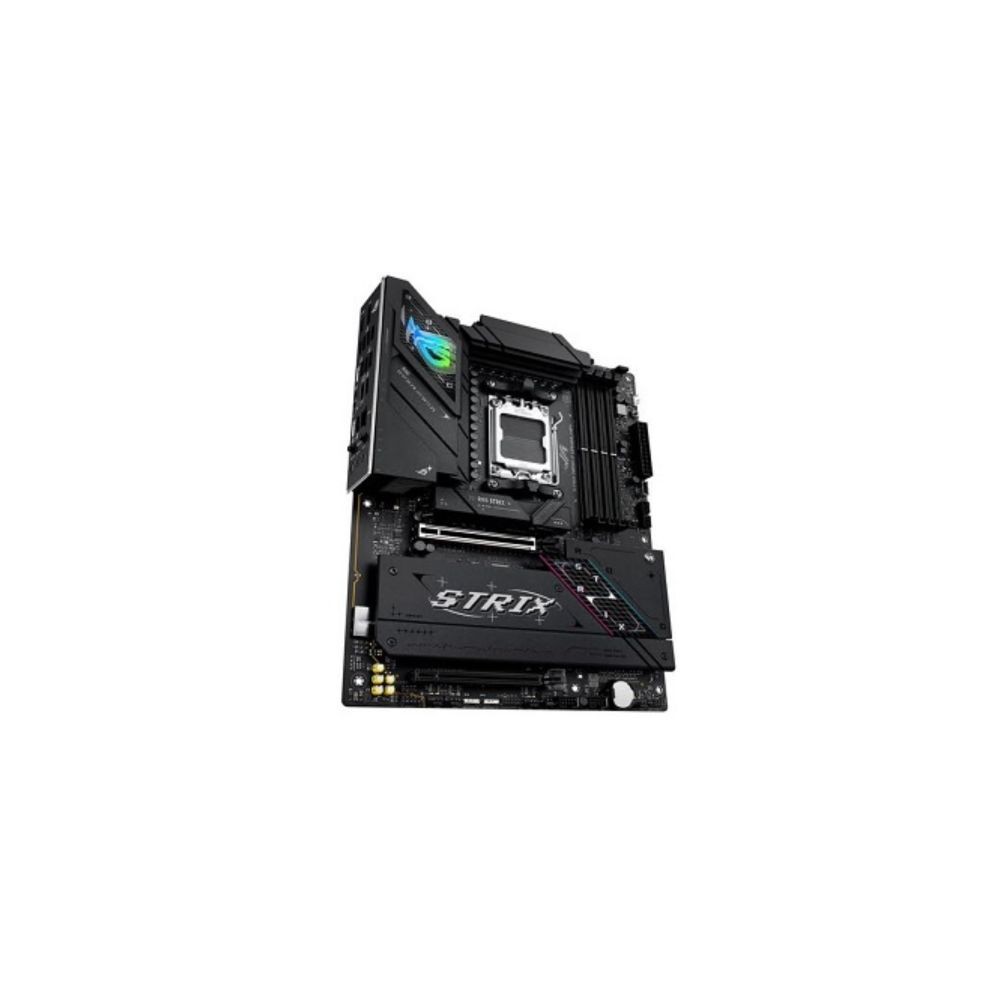

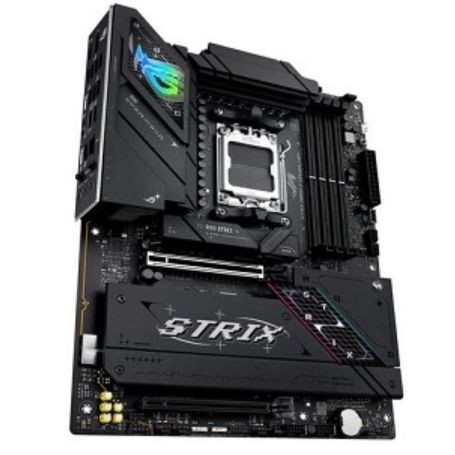

The ASUS ROG Strix B850-F Gaming WiFi is an ATX motherboard designed for desktop PCs built around AMD Ryzen 9000, 8000, and 7000 Series processors. Based on the AMD B850 chipset and AM5 socket, it combines DDR5 memory support, PCIe 5.0 expansion, high-speed M.2 storage, Wi-Fi 7 networking, and 2.5 Gigabit Ethernet.
Part of ASUS Republic of Gamers, the ROG Strix B850-F Gaming WiFi provides a platform for gaming systems and performance-oriented desktop workstations. Its integrated wireless connectivity, extensive USB interfaces, and multiple storage slots allow compatible components to be integrated into a single system.
Processor and Memory Support
The AM5 socket supports compatible AMD Ryzen 9000, 8000, and 7000 Series desktop processors. Processor compatibility and available features depend on the exact CPU model and the motherboard BIOS version.
The motherboard provides four DDR5 DIMM slots, supports up to 256GB of memory, and uses a dual-channel memory architecture. ASUS specifies memory speeds of up to 8000+ MT/s through overclocking with supported Ryzen 9000, 8000, and 7000 Series processors. Achievable speeds depend on the processor, memory modules, module configuration, and BIOS settings.
AMD EXPO and ASUS Enhanced Memory Profile (AEMP) support provide memory-profile options for compatible DDR5 modules. The board supports ECC and non-ECC unbuffered memory, subject to processor and memory compatibility requirements.
Expansion and Storage
The motherboard includes four M.2 sockets and two SATA 6Gb/s ports. Two processor-connected M.2 sockets support PCIe 5.0 x4 operation with compatible Ryzen 9000 and 7000 Series processors. With Ryzen 8000 Series processors, their supported interface speeds and lane configurations vary by processor model.
The remaining two M.2 sockets connect through the AMD B850 chipset and support PCIe 4.0 x4 storage. The board also provides a primary PCIe 5.0 x16 graphics slot and a chipset-connected PCIe 4.0 x16 slot operating at up to x4 mode.
Storage configuration requires attention to lane sharing. The M.2_3 socket shares bandwidth with the PCIEX16(G4) expansion slot; using that expansion slot disables M.2_3. Processor selection also affects the supported operating modes of the processor-connected M.2 and graphics slots.
Networking and Wireless Connectivity
Integrated Wi-Fi 7 supports 2.4GHz, 5GHz, and 6GHz frequency bands, with 2x2 connectivity and 160MHz channel bandwidth. ASUS specifies wireless transfer rates of up to 2.9Gbps under supported conditions. Actual performance depends on the router, operating system, regional wireless regulations, interference, and network configuration.
Bluetooth 5.4 provides wireless connectivity for compatible peripherals. For wired networking, the motherboard incorporates Intel 2.5Gb Ethernet and ASUS LANGuard protection.
ASUS notes that full Wi-Fi 7 functionality on Windows 11 requires version 24H2 or later. Earlier Windows 11 releases listed by ASUS support Wi-Fi 6E rather than the full Wi-Fi 7 feature set. ASUS also notes that a Windows 10 driver is not provided for the wireless functionality.
USB and Audio Interfaces
The rear I/O panel provides 12 USB ports across USB 20Gbps, USB 10Gbps, USB 5Gbps, and USB 2.0 categories. These include USB Type-C and Type-A connections for compatible external storage, peripherals, and other devices.
Internal headers support additional front-panel USB connectivity, including a USB Type-C connector. The motherboard also includes ROG SupremeFX audio based on the Realtek ALC4080 codec, with a rear optical S/PDIF output and audio connections for compatible speakers, headsets, and microphones.
Key Features
- AMD AM5 platform: Supports compatible Ryzen 9000, 8000, and 7000 Series desktop processors.
- DDR5 memory: Four DIMM slots support up to 256GB of memory, with compatible high-speed overclocking profiles.
- PCIe 5.0 expansion and storage: Provides a PCIe 5.0 x16 graphics slot and processor-dependent PCIe 5.0 x4 M.2 support.
- Integrated Wi-Fi 7: Provides tri-band wireless networking and Bluetooth 5.4 connectivity.
- Four M.2 sockets: Supports multiple NVMe storage devices alongside two SATA 6Gb/s connections.
Applications
- Gaming desktop systems: Provides a platform for compatible AMD Ryzen processors, discrete graphics cards, DDR5 memory, and NVMe storage.
- Content creation PCs: Supports compatible processor, memory, and storage configurations for video editing, design applications, and other demanding desktop workloads.
- High-speed storage systems: Accommodates multiple M.2 drives for operating systems, applications, project files, and game libraries.
- Connected desktop workstations: Combines Wi-Fi 7, Bluetooth, and 2.5Gb Ethernet for flexible network connectivity.
DC Supplies Product Note
Check the exact processor model before selecting M.2 drives and expansion cards. The available PCIe modes of the primary graphics and M.2 slots vary with the installed Ryzen processor, and using the chipset-connected PCIEX16(G4) slot disables the M.2_3 socket because they share bandwidth. Planning these connections before assembly helps avoid unexpected storage or expansion limitations.
Specifications
| Specification | Details |
|---|
| Brand | ASUS |
| Manufacturer | ASUSTeK Computer Inc. |
| Part Number / MPN | ROG STRIX B850-F GAMING WIFI |
| Product Type | Desktop motherboard |
| Product Family | Republic of Gamers (ROG) Strix |
| Chipset | AMD B850 |
| CPU Socket | AMD Socket AM5 |
| Supported Processor Families | AMD Ryzen 9000, 8000, and 7000 Series desktop processors |
| Memory Type | DDR5 |
| Memory Slots | 4 x DIMM |
| Maximum Memory Capacity | 256GB |
| Memory Architecture | Dual-channel |
| Maximum Specified Memory Speed | Up to 8000+ MT/s (OC), with supported processors and configurations |
| Memory Profile Support | AMD EXPO and ASUS AEMP |
| Graphics Expansion | 1 x PCIe 5.0 x16 slot, with processor-dependent operating modes |
| Additional Expansion | 1 x PCIe 4.0 x16 slot, operating at up to x4 mode |
| M.2 Storage | 4 x M.2 sockets |
| Processor-Connected M.2 | 2 x sockets; supported PCIe modes vary by processor |
| Chipset-Connected M.2 | 2 x PCIe 4.0 x4 sockets |
| SATA Storage | 2 x SATA 6Gb/s ports |
| Wired Networking | Intel 2.5Gb Ethernet |
| Wireless Networking | Wi-Fi 7 (802.11be), 2x2, 2.4GHz / 5GHz / 6GHz |
| Bluetooth | Bluetooth 5.4 |
| Rear USB | 12 ports: 1 x USB 20Gbps Type-C, 3 x USB 10Gbps, 4 x USB 5Gbps, and 4 x USB 2.0 |
| Front USB Expansion | USB 10Gbps Type-C header, USB 5Gbps header for 2 ports, and USB 2.0 headers for 4 ports |
| Audio Codec | ROG SupremeFX 7.1-channel audio, Realtek ALC4080 |
| Digital Audio Output | Optical S/PDIF |
| Rear Display Outputs | 1 x DisplayPort 1.4 and 1 x HDMI 2.1, subject to CPU graphics support |
| Internal CPU Power Connectors | 2 x 8-pin +12V |
| Motherboard Main Power Connector | 1 x 24-pin |
| BIOS Recovery | BIOS FlashBack |
| System Reset Utility | Clear CMOS button |
Frequently Asked Questions
Which processors are compatible with this motherboard?
The ASUS ROG Strix B850-F Gaming WiFi supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors using the AM5 socket. Check ASUS's CPU support list and the installed BIOS version to confirm compatibility with a specific processor.
Does this motherboard support PCIe 5.0 SSDs?
Yes. The processor-connected M.2 sockets support PCIe 5.0 x4 with compatible Ryzen 9000 and 7000 Series processors. Ryzen 8000 Series processors have different M.2 interface limitations depending on the specific CPU model.
Can all four M.2 sockets be used with a graphics card installed?
The motherboard provides four M.2 sockets, but configuration matters. The M.2_3 socket shares bandwidth with the chipset-connected PCIEX16(G4) expansion slot and is disabled when that expansion slot is operating. Check the motherboard manual when planning multiple storage drives and expansion cards.
Does the motherboard include Wi-Fi and Bluetooth?
Yes. Wi-Fi 7 and Bluetooth 5.4 are integrated. Wireless features and available frequency bands depend on operating-system support, regional regulations, and compatible network equipment.
Does the motherboard have HDMI and DisplayPort outputs?
Yes. The rear panel includes one HDMI 2.1 port and one DisplayPort 1.4 port. These outputs rely on graphics capabilities provided by the installed processor and do not replace the display outputs on a separately installed graphics card.
What memory should be purchased for this motherboard?
Choose compatible DDR5 unbuffered memory and check the ASUS memory compatibility list for the intended processor and memory kit. Although the board supports up to 256GB and high memory speeds through overclocking, achievable capacity and speed depend on the selected modules, processor, and configuration.
Product Identification
Brand: ASUS
Manufacturer: ASUSTeK Computer Inc.
Series: ROG Strix
Model: B850-F Gaming WiFi
Part Number / MPN: ROG STRIX B850-F GAMING WIFI
Product Type: AMD AM5 ATX motherboard
