Overview

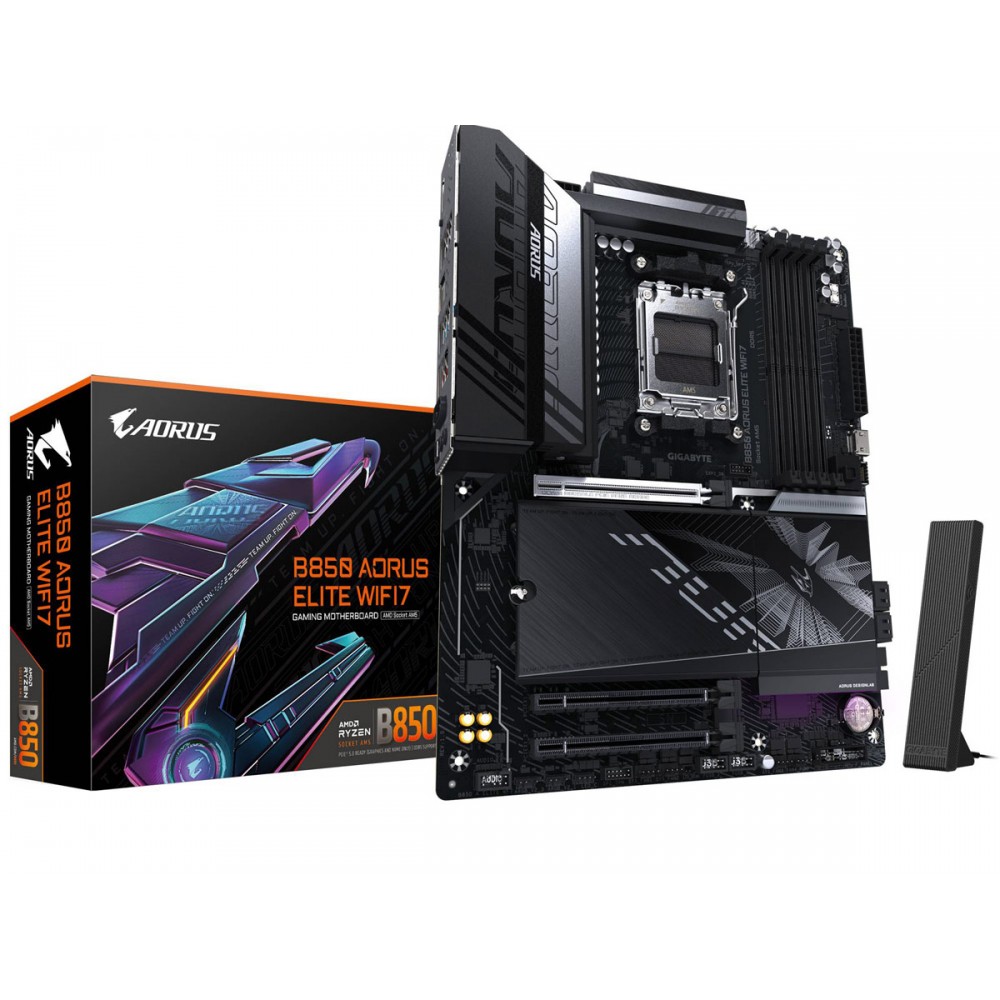

The GIGABYTE B850 AORUS ELITE WIFI7 is an ATX motherboard designed for AMD Ryzen 7000, 8000, and 9000 Series desktop processors. Powered by the AMD B850 chipset, it combines DDR5 memory support, PCIe expansion, three M.2 storage connectors, Wi-Fi 7, and 2.5GbE networking for gaming and high-performance desktop systems.
Key Features
- AMD B850 chipset with AMD AM5 processor socket
- Supports compatible AMD Ryzen 7000, 8000, and 9000 Series processors
- Four DDR5 DIMM slots supporting up to 256GB memory
- Memory speeds up to 8200 MT/s through supported overclocking configurations
- PCIe 5.0 x16 graphics card slot with compatible processors
- Three M.2 storage connectors and four SATA 6Gb/s ports
- Integrated Wi-Fi 7 and Bluetooth 5.4
- Realtek 2.5GbE LAN
- DisplayPort and front-panel HDMI connectivity, depending on CPU support
- USB Type-C and USB Type-A connectivity
- Q-Flash Plus BIOS update support
- ATX form factor for compatible desktop cases
Technical Specifications
| Brand Name | GIGABYTE B850 AORUS ELITE WIFI7 |
| Manufacturer | GIGABYTE |
| Model | B850 AORUS ELITE WIFI7 |
| Part Number | B850 AORUS ELITE WIFI7 |
| Product Type | Desktop Motherboard |
| Chipset | AMD B850 |
| CPU Socket | AMD AM5 |
| Form Factor | ATX |
| Memory Type | DDR5 |
| Memory Slots | 4 DIMM slots |
| Maximum Memory | 256GB |
| Expansion Slot | 1 x PCIe 5.0 x16 (processor-dependent); 2 x PCIe 3.0 x1 |
| M.2 Slots | 3 |
| SATA Ports | 4 x SATA 6Gb/s |
| Networking | Realtek 2.5GbE LAN |
| Wireless Connectivity | Wi-Fi 7 |
| Bluetooth | Bluetooth 5.4 |
| Audio | High Definition Audio; codec depends on hardware revision |
| Video Output | DisplayPort and front HDMI; functionality depends on processor and chassis connectivity |
| Dimensions (L x W) | 12 x 9.6 inches (30.5 x 24.4 cm) |
Compatibility and Installation
Use a compatible AMD AM5 processor and DDR5 memory. Check GIGABYTE's processor support list and BIOS requirements before installation. The motherboard requires an ATX-compatible case. Verify graphics card clearance, CPU cooling, power supply connectors, and storage compatibility before assembling the system.
Why Choose DC Supplies?
DC Supplies provides computer components for gaming, productivity, and high-performance desktop builds. Check the exact model and hardware revision to confirm compatibility with your system.
Frequently Asked Questions
1. Which processors does the B850 AORUS ELITE WIFI7 support?
It supports compatible AMD Ryzen 7000, 8000, and 9000 Series desktop processors.
2. How much RAM does it support?
It supports up to 256GB of DDR5 memory across four DIMM slots.
3. Does it include Wi-Fi?
Yes. It includes Wi-Fi 7 and Bluetooth 5.4, subject to regional wireless regulations and driver support.
4. How many M.2 SSDs can be installed?
It has three M.2 connectors for compatible solid-state drives.
5. Does it support PCIe 5.0?
Yes. The main graphics card slot supports PCIe 5.0 with compatible processors.
6. Where can I find official specifications?
Visit the official GIGABYTE specifications page for detailed technical information and revision-specific features.
