Overview

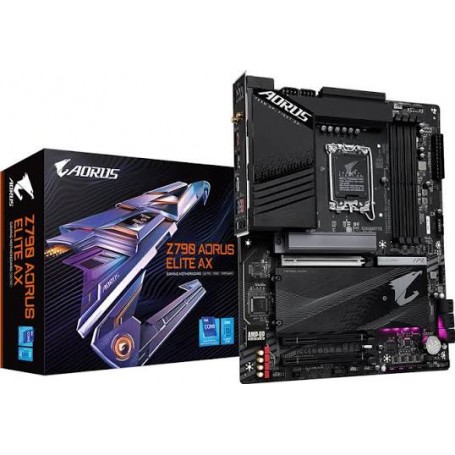

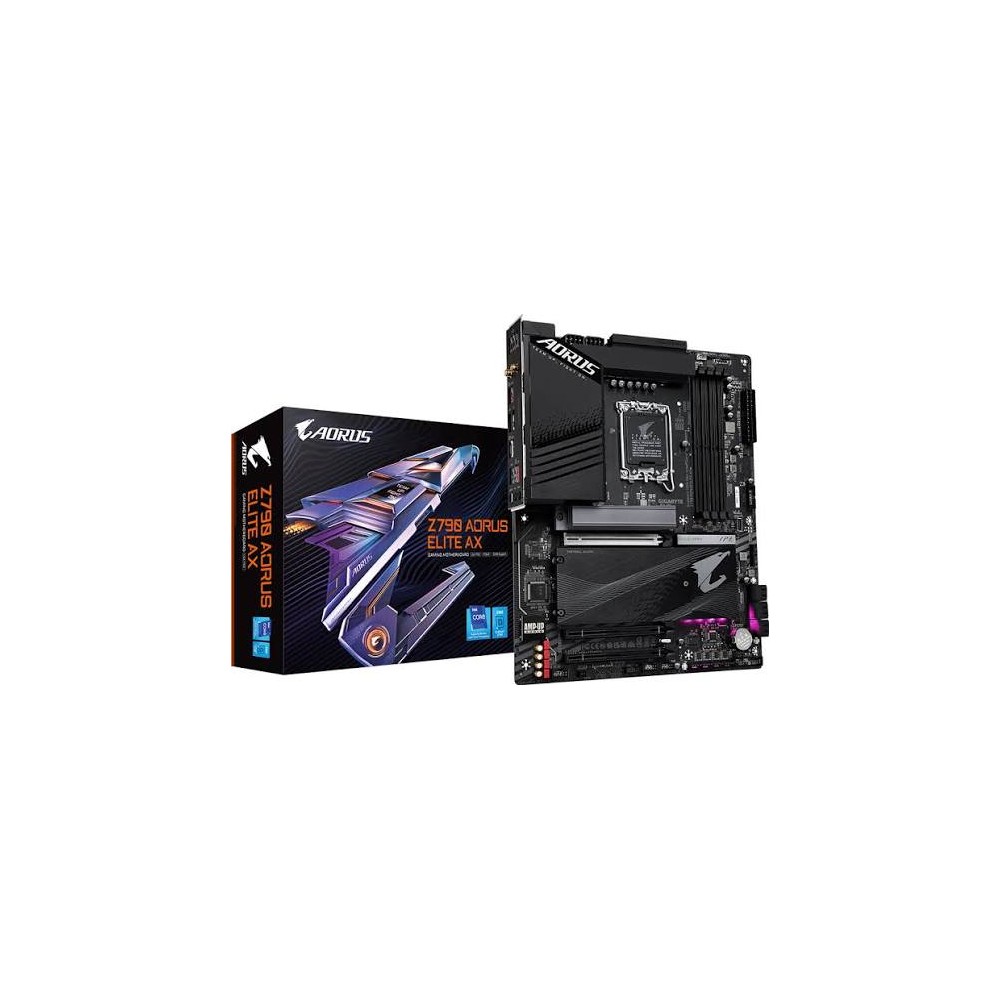

The GIGABYTE Z790 AORUS ELITE AX is an ATX motherboard designed for desktop systems using compatible Intel processors with the LGA1700 socket. Built on the Intel Z790 chipset, it supports DDR5 memory, PCIe 5.0 graphics expansion, four M.2 storage connectors, Wi-Fi 6E, and 2.5GbE wired networking.
Key Features
- Intel LGA1700 socket supporting compatible 12th, 13th, and 14th Gen Intel Core processors.
- Four DDR5 DIMM slots supporting up to 256GB of system memory.
- PCIe 5.0 x16 graphics slot and four PCIe 4.0 M.2 storage connectors.
- Intel Wi-Fi 6E wireless networking, Bluetooth, and 2.5GbE LAN.
- Rear USB 3.2 Gen 2x2 Type-C connectivity and Q-Flash Plus BIOS updating.
Performance and Memory
The Intel Z790 chipset and LGA1700 socket support compatible Intel desktop processors. Four DDR5 memory slots provide dual-channel memory support, with memory speeds dependent on the installed processor, memory modules, and configuration. XMP memory profiles are supported.
Storage and Expansion
The motherboard provides four M.2 connectors supporting compatible PCIe 4.0 SSDs and six SATA 6Gb/s connectors. Its primary PCIe x16 slot supports PCIe 5.0 for compatible graphics hardware. Additional chipset-connected PCIe slots support expansion devices.
Networking and Connectivity
Integrated networking includes 2.5GbE Ethernet and Wi-Fi 6E with Bluetooth. Rear connections include USB Type-C, USB Type-A, HDMI, DisplayPort, antenna connectors, audio jacks, and optical S/PDIF output. Display output depends on the installed processor's graphics capabilities.
Compatibility
This motherboard supports compatible Intel 12th, 13th, and 14th Gen processors using the LGA1700 socket. It uses the standard ATX form factor and supports Windows 10 64-bit and Windows 11 64-bit. Check the processor support list and required BIOS version before installation.
DC Supplies Product Note
Before deployment, verify CPU compatibility, BIOS requirements, DDR5 memory specifications, case clearance, power supply connectors, and the available PCIe and M.2 configuration.
Specifications
| Brand | GIGABYTE |
|---|
| Part Number / MPN | Z790 AORUS ELITE AX |
|---|
| Product Type | Desktop Motherboard |
|---|
| Chipset | Intel Z790 Express |
|---|
| CPU Socket | Intel LGA1700 |
|---|
| Supported Processors | Compatible Intel Core 12th, 13th, and 14th Gen processors; compatible Pentium Gold and Celeron processors |
|---|
| Memory Type | DDR5 |
|---|
| Memory Slots | 4 DIMM slots, dual-channel |
|---|
| Maximum Memory | 256GB |
|---|
| Memory Overclocking | Up to 7600 MT/s (OC), configuration dependent |
|---|
| Primary Expansion Slot | 1 PCIe 5.0 x16 |
|---|
| Additional Expansion | 2 PCIe 4.0 x16 slots operating at x4 |
|---|
| M.2 Connectors | 4 PCIe 4.0 M.2 connectors |
|---|
| SATA Connectors | 6 SATA 6Gb/s |
|---|
| Wired Networking | Realtek 2.5GbE LAN |
|---|
| Wireless Networking | Intel Wi-Fi 6E |
|---|
| Bluetooth | Bluetooth 5.3, revision dependent |
|---|
| Rear USB Type-C | 1 USB 3.2 Gen 2x2, up to 20Gbps |
|---|
| Video Outputs | HDMI and DisplayPort |
|---|
| Audio | Realtek High Definition Audio, optical S/PDIF output |
|---|
| BIOS Update | Q-Flash Plus |
|---|
| Form Factor | ATX |
|---|
| Dimensions (L × W) | 12.01 × 9.61 inches (30.5 × 24.4 cm) |
|---|
| Supported Operating Systems | Windows 10 64-bit, Windows 11 64-bit |
|---|
Frequently Asked Questions
Which processors are compatible with this motherboard?
It supports compatible Intel 12th, 13th, and 14th Gen processors using the LGA1700 socket. Check GIGABYTE's CPU support list for BIOS requirements.
How much memory does it support?
It has four DDR5 DIMM slots and supports up to 256GB of system memory.
Does it support PCIe 5.0?
Yes. The primary PCIe x16 slot supports PCIe 5.0 for compatible expansion hardware.
What networking options are included?
The motherboard includes Wi-Fi 6E wireless networking, Bluetooth, and 2.5GbE Ethernet.
How many M.2 drives can be installed?
It provides four M.2 connectors for compatible PCIe 4.0 SSDs, in addition to six SATA 6Gb/s connectors.
