Overview

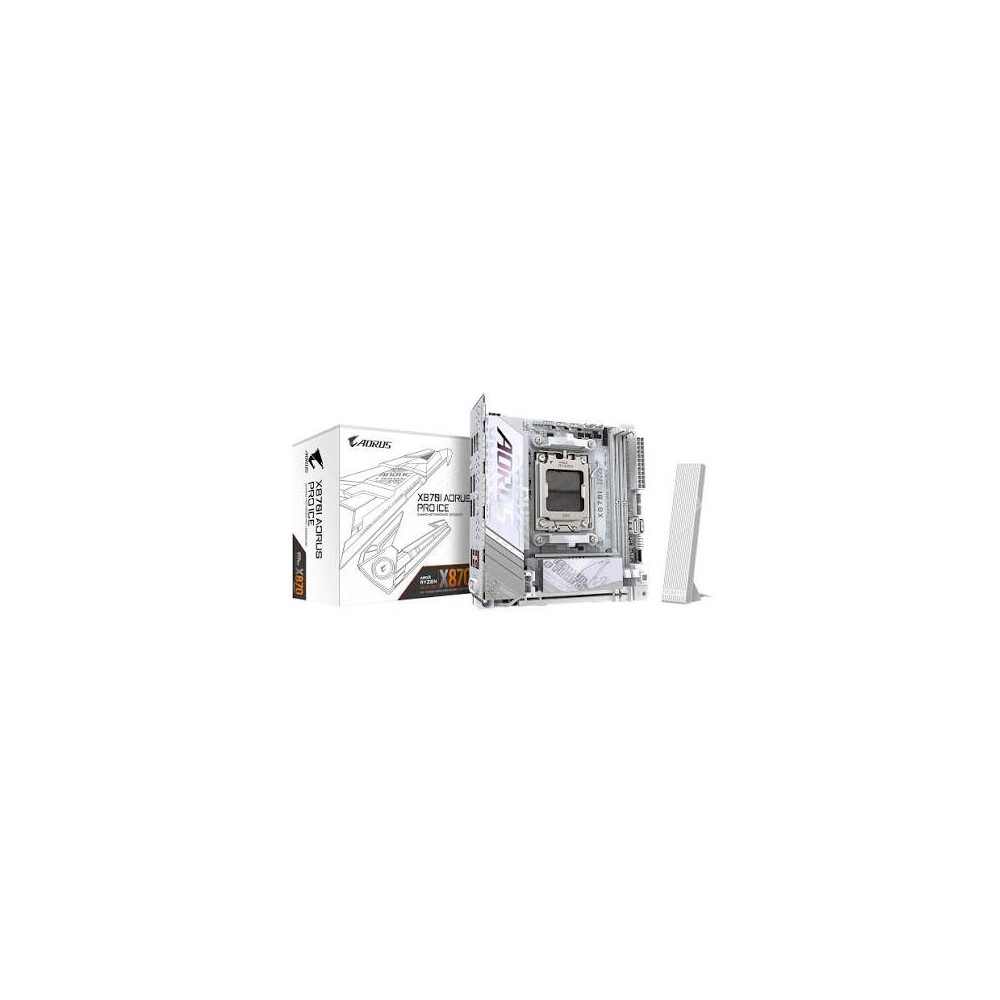

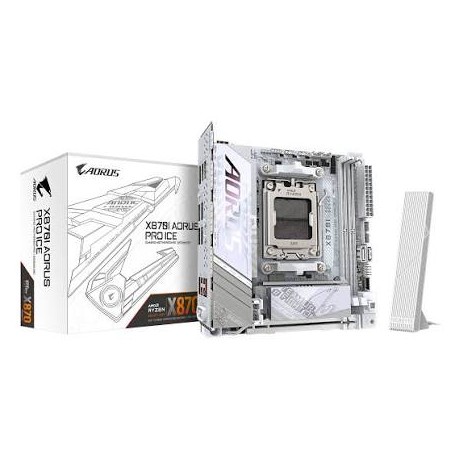

The GIGABYTE X870I AORUS PRO ICE is a Mini-ITX motherboard designed for compact desktop systems using compatible AMD Ryzen processors and the AM5 socket. Based on the AMD X870 chipset, it supports DDR5 memory, PCIe 5.0 graphics expansion, NVMe storage, Wi-Fi 7, and USB4 connectivity.
Key Features
- AMD AM5 socket supporting compatible Ryzen 7000, 8000, and 9000 Series processors.
- Two DDR5 DIMM slots supporting up to 128 GB of memory.
- One CPU-connected PCIe x16 expansion slot, supporting PCIe 5.0 with compatible Ryzen 7000 and 9000 Series processors.
- Wi-Fi 7 wireless networking and 2.5GbE wired Ethernet.
- USB4 Type-C connectivity with DisplayPort video output support.
Memory and Storage
The motherboard uses dual-channel DDR5 memory and supports compatible AMD EXPO and Intel XMP memory modules. Two M.2 connectors support NVMe storage: one CPU-connected slot with PCIe 5.0 support for compatible processors and one chipset-connected PCIe 4.0 slot. Two SATA 6Gb/s connectors provide additional storage options.
Networking and Connectivity
Integrated connectivity includes Wi-Fi 7, Bluetooth 5.4, and Realtek 2.5GbE LAN. Rear I/O includes a USB4 Type-C port, additional USB Type-C and Type-A ports, HDMI, antenna connectors, and audio jacks. Video output capabilities depend on the installed processor and its graphics support.
Compatibility
This motherboard supports compatible AMD Ryzen 7000, 8000, and 9000 Series processors using the AM5 socket. Its Mini-ITX form factor is intended for compatible compact PC cases. Check the manufacturer's CPU support list, BIOS requirements, memory compatibility, and chassis clearance before installation.
DC Supplies Product Note
For compact workstation or desktop deployments, confirm processor-specific PCIe capabilities, M.2 clearance, cooling requirements, and available case space before selecting components.
Specifications
| Brand | GIGABYTE |
|---|
| Part Number / MPN | X870I AORUS PRO ICE |
|---|
| Product Type | Desktop Motherboard |
|---|
| Chipset | AMD X870 |
|---|
| CPU Socket | AMD AM5 |
|---|
| Supported Processors | AMD Ryzen 7000, 8000, and 9000 Series |
|---|
| Memory Type | DDR5 |
|---|
| Memory Slots | 2 DIMM slots, dual-channel |
|---|
| Maximum Memory | 128 GB |
|---|
| Memory Speed | Up to 8400 MT/s (OC) for Rev. 1.0; varies by revision and configuration |
|---|
| Expansion Slot | 1 CPU-connected PCIe x16 slot |
|---|
| Storage | 2 M.2 connectors; 2 SATA 6Gb/s connectors |
|---|
| Wired Networking | Realtek 2.5GbE LAN |
|---|
| Wireless Networking | Wi-Fi 7 |
|---|
| Bluetooth | Bluetooth 5.4 |
|---|
| USB4 | 1 rear USB Type-C port |
|---|
| Audio | Realtek ALC4080 codec |
|---|
| Form Factor | Mini-ITX |
|---|
| Dimensions (L × W) | 17 × 17 cm |
|---|
| Operating System | Windows 11 64-bit |
|---|
Frequently Asked Questions
Which processors are compatible with this motherboard?
It supports compatible AMD Ryzen 7000, 8000, and 9000 Series processors using the AM5 socket. Consult GIGABYTE's CPU support list for the required BIOS version.
How much RAM can it support?
It has two DDR5 DIMM slots and supports up to 128 GB of system memory.
Does it support PCIe 5.0?
Yes. The CPU-connected expansion slot supports PCIe 5.0 x16 with compatible Ryzen 7000 and 9000 Series processors. Supported modes vary with the processor.
Does it include Wi-Fi?
Yes. The motherboard includes Wi-Fi 7 wireless networking and Bluetooth 5.4.
What case size is required?
The motherboard uses the Mini-ITX form factor and measures 17 × 17 cm. The case must support Mini-ITX motherboards and provide sufficient component clearance.
