Overview

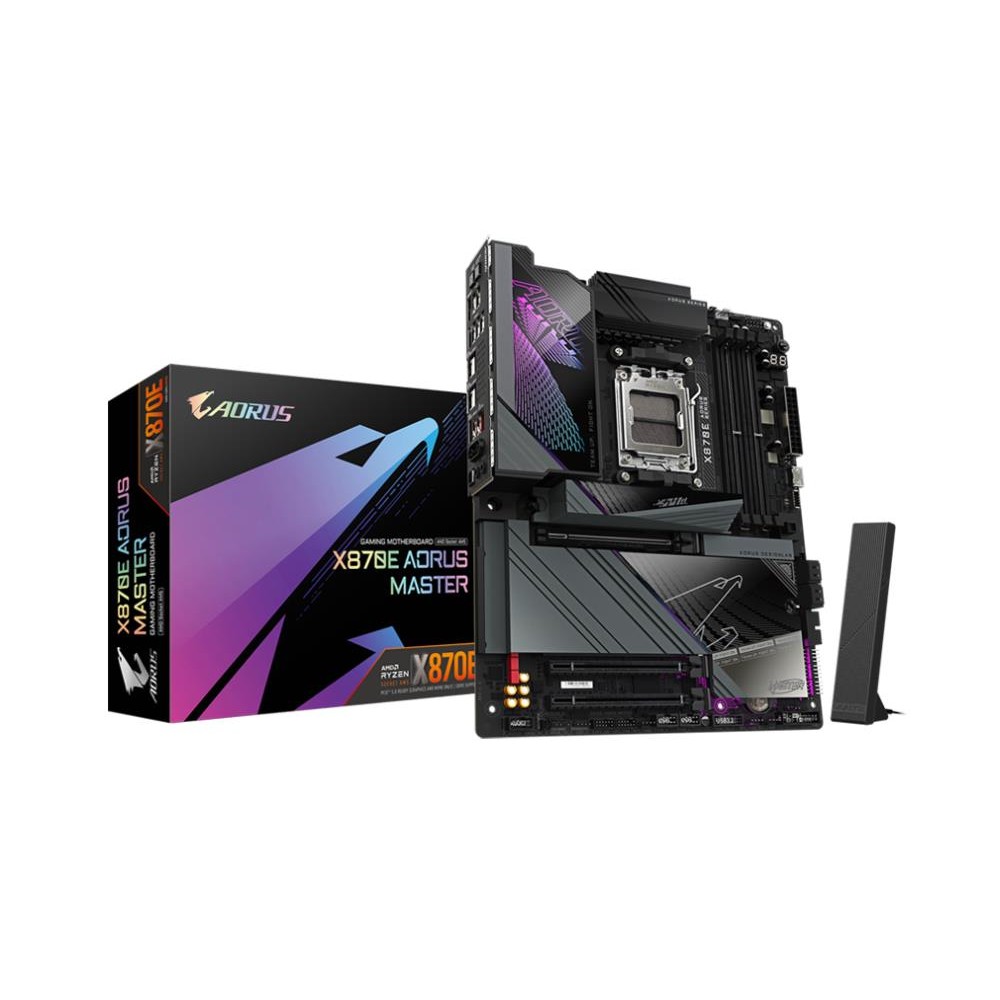

The GIGABYTE X870E AORUS MASTER is an ATX desktop motherboard built on the AMD X870E chipset and AM5 socket. It supports compatible AMD Ryzen 7000, 8000, and 9000 Series processors, DDR5 memory, PCIe 5.0 expansion, high-speed M.2 storage, Wi-Fi 7, and 5GbE wired networking.
Key Features
- AMD AM5 socket with support for compatible Ryzen 7000, 8000, and 9000 Series processors.
- Four DDR5 DIMM slots supporting up to 256 GB of system memory.
- PCIe 5.0 x16 graphics slot and four M.2 storage connectors, including three PCIe 5.0 M.2 slots.
- Wi-Fi 7 wireless networking and 5GbE Ethernet.
- Two USB4 Type-C ports supporting data transfer and DisplayPort video output.
Memory and Storage
The board supports dual-channel DDR5 memory, including compatible AMD EXPO and Intel XMP memory modules. Four M.2 connectors and four SATA 6Gb/s ports provide options for NVMe SSDs and SATA storage devices. Actual memory speeds and expansion bandwidth depend on the processor and installed configuration.
Networking and Connectivity
Integrated networking includes Realtek 5GbE LAN and Qualcomm Wi-Fi 7, with Bluetooth support. Rear connectivity includes two USB4 Type-C ports, USB Type-A ports, HDMI, antenna connectors, audio connections, and optical S/PDIF output. The motherboard also includes a front HDMI connection for compatible sensor-panel installations.
Compatibility
Designed for compatible AMD Ryzen 7000, 8000, and 9000 Series processors using the AM5 socket. The board uses the standard ATX form factor and supports Windows 11 64-bit. Processor choice affects available PCIe modes and some graphics and memory capabilities.
DC Supplies Product Note
Before deployment, verify CPU support and BIOS requirements, memory compatibility, chassis clearance, and the bandwidth-sharing limitations of the PCIe and M.2 connectors against the manufacturer's documentation.
Specifications
| Brand | GIGABYTE |
|---|
| Part Number / MPN | X870E AORUS MASTER |
|---|
| Product Type | Desktop Motherboard |
|---|
| Chipset | AMD X870E |
|---|
| CPU Socket | AMD AM5 |
|---|
| Supported Processors | AMD Ryzen 7000, 8000, and 9000 Series |
|---|
| Memory Type | DDR5 |
|---|
| Memory Slots | 4 DIMM slots, dual-channel |
|---|
| Maximum Memory | 256 GB |
|---|
| Memory Overclocking | Up to 8600 MT/s (OC), depending on configuration |
|---|
| Expansion Slot | 1 PCIe 5.0 x16; additional chipset-connected PCIe slots |
|---|
| Storage Connectors | 4 M.2; 4 SATA 6Gb/s |
|---|
| Wired Networking | Realtek 5GbE LAN |
|---|
| Wireless Networking | Wi-Fi 7 |
|---|
| Bluetooth | Bluetooth 5.4 specification |
|---|
| USB4 | 2 USB Type-C ports |
|---|
| Audio | Realtek ALC1220; optical S/PDIF output |
|---|
| Form Factor | ATX |
|---|
| Dimensions (L × W) | 30.5 × 24.4 cm |
|---|
| Operating System | Windows 11 64-bit |
|---|
Frequently Asked Questions
Which processors work with the X870E AORUS MASTER?
It supports compatible AMD Ryzen 7000, 8000, and 9000 Series processors with the AM5 socket. Check the manufacturer's CPU support list before purchasing.
How much memory does it support?
The motherboard has four DDR5 DIMM slots and supports up to 256 GB of memory.
Does it support PCIe 5.0?
Yes. It provides a PCIe 5.0 x16 slot for compatible graphics or expansion hardware and three PCIe 5.0 M.2 connectors.
What networking options are included?
It includes 5GbE wired Ethernet and Wi-Fi 7 wireless networking.
Does it have USB4 ports?
Yes. Two rear USB4 Type-C ports support data connectivity and DisplayPort video output.
