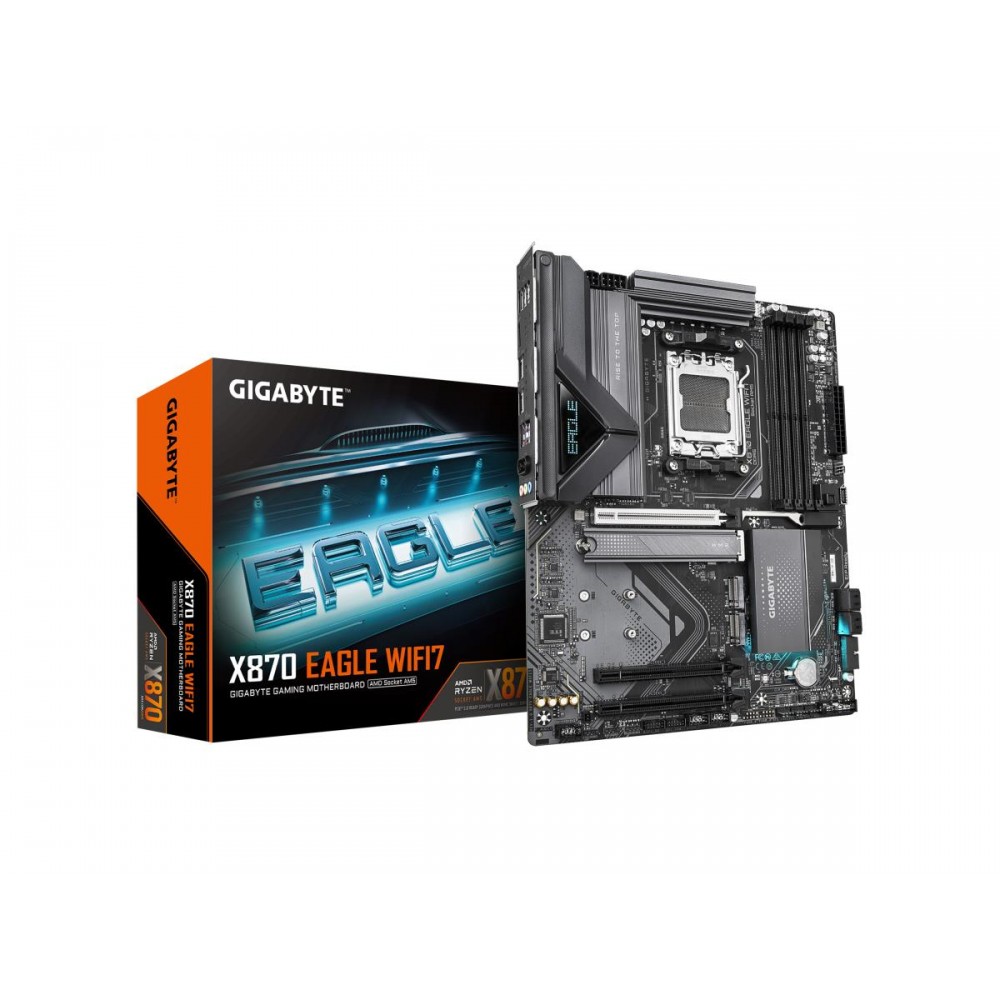

GIGABYTE X870 EAGLE WIFI7 Motherboard
Overview
The GIGABYTE X870 EAGLE WIFI7 is an ATX motherboard designed for AMD Ryzen 7000, 8000, and 9000 Series processors using the AM5 socket. It features the AMD X870 chipset, DDR5 memory support, Wi-Fi 7 wireless networking, and USB4 connectivity for compatible desktop systems.
Key Features
- AMD AM5 socket with support for compatible Ryzen 7000, 8000, and 9000 Series processors.
- Four DDR5 DIMM slots supporting up to 256 GB of memory.
- Wi-Fi 7 wireless networking and Bluetooth 5.4.
- Two rear USB4 Type-C ports with DisplayPort video output support.
- PCIe 5.0 x16 graphics slot support with compatible processors.
Connectivity and Expansion
The motherboard provides a Realtek 2.5GbE Ethernet connection, HDMI output, multiple USB ports, three M.2 storage connectors, and four SATA 6Gb/s connectors. Expansion and storage capabilities vary with the installed processor and device configuration.
Compatibility
Compatible with supported AMD Ryzen 7000, 8000, and 9000 Series processors using the AM5 socket. It supports Windows 11 64-bit. Wi-Fi 7 functionality requires a compatible operating system, drivers, and wireless environment.
DC Supplies Product Note
Confirm processor compatibility, memory specifications, chassis ATX support, and required storage interfaces before deployment.
Specifications
| Brand | GIGABYTE |
|---|
| Part Number / MPN | X870 EAGLE WIFI7 |
|---|
| Product Type | Desktop Motherboard |
|---|
| Chipset | AMD X870 |
|---|
| CPU Socket | AMD AM5 |
|---|
| Supported Processors | AMD Ryzen 7000, 8000, and 9000 Series |
|---|
| Memory Type | DDR5 |
|---|
| Memory Slots | 4 DIMM slots |
|---|
| Maximum Memory | 256 GB |
|---|
| Wireless Networking | Wi-Fi 7 |
|---|
| Bluetooth | Bluetooth 5.4 |
|---|
| Wired Networking | Realtek 2.5GbE LAN |
|---|
| Expansion | PCIe 5.0 x16 support; additional PCIe slots |
|---|
| Storage | 3 M.2 connectors; 4 SATA 6Gb/s connectors |
|---|
| USB4 | 2 rear USB Type-C ports |
|---|
| Form Factor | ATX |
|---|
| Dimensions (L × W) | 30.5 × 24.4 cm |
|---|
| Operating System | Windows 11 64-bit |
|---|
Frequently Asked Questions
Which processors are compatible with this motherboard?
It supports compatible AMD Ryzen 7000, 8000, and 9000 Series processors with the AM5 socket.
Does this motherboard support DDR5 memory?
Yes. It has four DDR5 DIMM slots and supports up to 256 GB of memory.
Does it include Wi-Fi 7?
Yes. Wi-Fi 7 and Bluetooth 5.4 are specified, although wireless performance depends on the system, drivers, and local conditions.
Does it have USB4 ports?
Yes. Two rear USB Type-C ports support USB4 and DisplayPort video output.
What form factor does it use?
It uses the ATX form factor and measures 30.5 × 24.4 cm.
