Overview

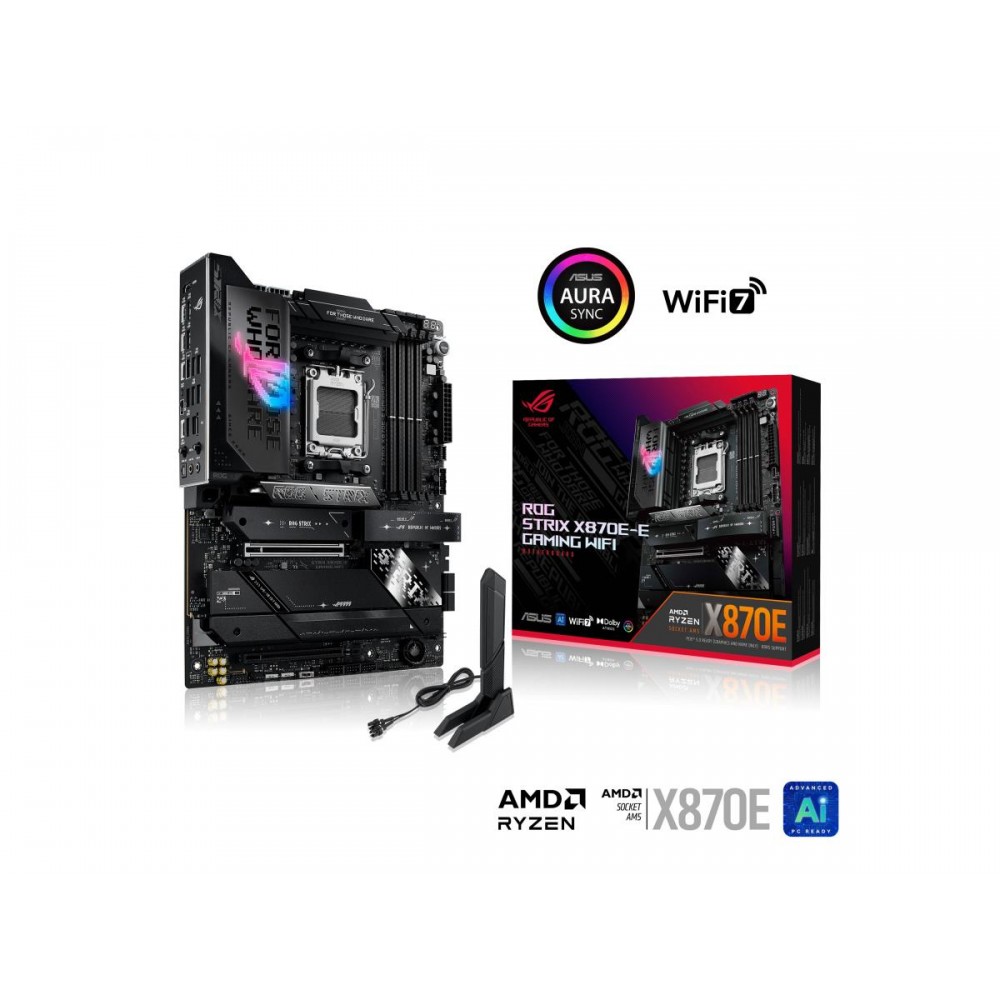

The ASUS ROG STRIX X870E-E GAMING WIFI is an ATX motherboard featuring the AMD X870E chipset and AM5 socket for compatible AMD Ryzen desktop processors. It combines DDR5 memory, PCIe 5.0 expansion, multiple NVMe storage interfaces, Wi-Fi 7, 5Gb Ethernet, and high-speed USB connectivity.
Processor and Memory Platform
The AM5 platform supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors. Four DDR5 DIMM slots support up to 256GB of memory with dual-channel operation, AMD EXPO technology, and ASUS memory optimization features.
PCIe and Storage
The motherboard provides PCIe 5.0 expansion for compatible graphics hardware and high-speed storage. Five M.2 slots are available, including three PCIe 5.0 x4 interfaces and two PCIe 4.0 x4 interfaces. Four SATA 6Gb/s ports provide additional storage connectivity.
Networking
Integrated networking includes Realtek 5Gb Ethernet and 2x2 Wi-Fi 7 wireless connectivity. Wi-Fi 7 supports the 2.4GHz, 5GHz, and 6GHz bands with compatible wireless infrastructure.
Connectivity and Audio
Rear I/O includes two USB4 40Gbps Type-C ports, a USB 20Gbps Type-C port, and multiple USB 10Gbps ports. Display connectivity includes HDMI 2.1 and DisplayPort-capable USB4 connections. ROG SupremeFX audio uses the Realtek ALC4080 codec with 7.1-channel high-definition audio.
Key Features
- AMD X870E chipset with AM5 socket
- Four DDR5 DIMM slots supporting up to 256GB
- PCIe 5.0 expansion and three PCIe 5.0 x4 M.2 interfaces
- Wi-Fi 7 and 5Gb Ethernet networking
- Two USB4 40Gbps Type-C ports
Applications
The ROG STRIX X870E-E GAMING WIFI is designed for high-performance desktop systems requiring modern AMD processor support, DDR5 memory, PCIe 5.0 graphics and storage, multiple NVMe drives, and high-speed wired and wireless networking.
DC Supplies Product Note
When installing multiple NVMe drives and PCIe expansion devices, review the motherboard's lane-sharing configuration to ensure the selected storage and expansion layout matches the intended system design.
Specifications
| Brand | ASUS |
| Part Number / MPN | ROG STRIX X870E-E GAMING WIFI |
| Product Type | ATX Motherboard |
| Chipset | AMD X870E |
| CPU Socket | AMD AM5 |
| Processor Support | AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors |
| Memory Type | DDR5 ECC / Non-ECC Unbuffered DIMM |
| Memory Slots | 4 x DIMM |
| Maximum Memory | 256GB |
| Memory Architecture | Dual Channel |
| Primary PCIe Slot | 1 x PCIe 5.0 x16 |
| M.2 Slots | 5 |
| M.2 Interface | 3 x PCIe 5.0 x4; 2 x PCIe 4.0 x4 |
| SATA | 4 x SATA 6Gb/s |
| RAID Support | PCIe RAID 0/1/5/10; SATA RAID 0/1/5/10 |
| Ethernet | Realtek 5Gb Ethernet |
| Wireless | 2x2 Wi-Fi 7 |
| Bluetooth | Bluetooth 5.4 |
| USB4 | 2 x USB4 40Gbps Type-C |
| Audio Codec | Realtek ALC4080 |
| Audio | 7.1-channel High Definition Audio |
| Display Outputs | HDMI 2.1; USB4 Type-C DisplayPort |
| Form Factor | ATX |
| Board Dimensions | 305 x 244 x 50 mm |
FAQs
What processors does this motherboard support?
The motherboard supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors using the AM5 socket.
How much memory can be installed?
Four DDR5 DIMM slots support up to 256GB of system memory.
How many M.2 SSDs are supported?
The motherboard provides five M.2 slots, with three supporting PCIe 5.0 x4 and two supporting PCIe 4.0 x4.
Does it include Wi-Fi 7?
Yes. The motherboard includes integrated 2x2 Wi-Fi 7 wireless networking.
What Ethernet speed is available?
A Realtek 5Gb Ethernet controller provides wired network connectivity.
