Detailed Specifications
Overview

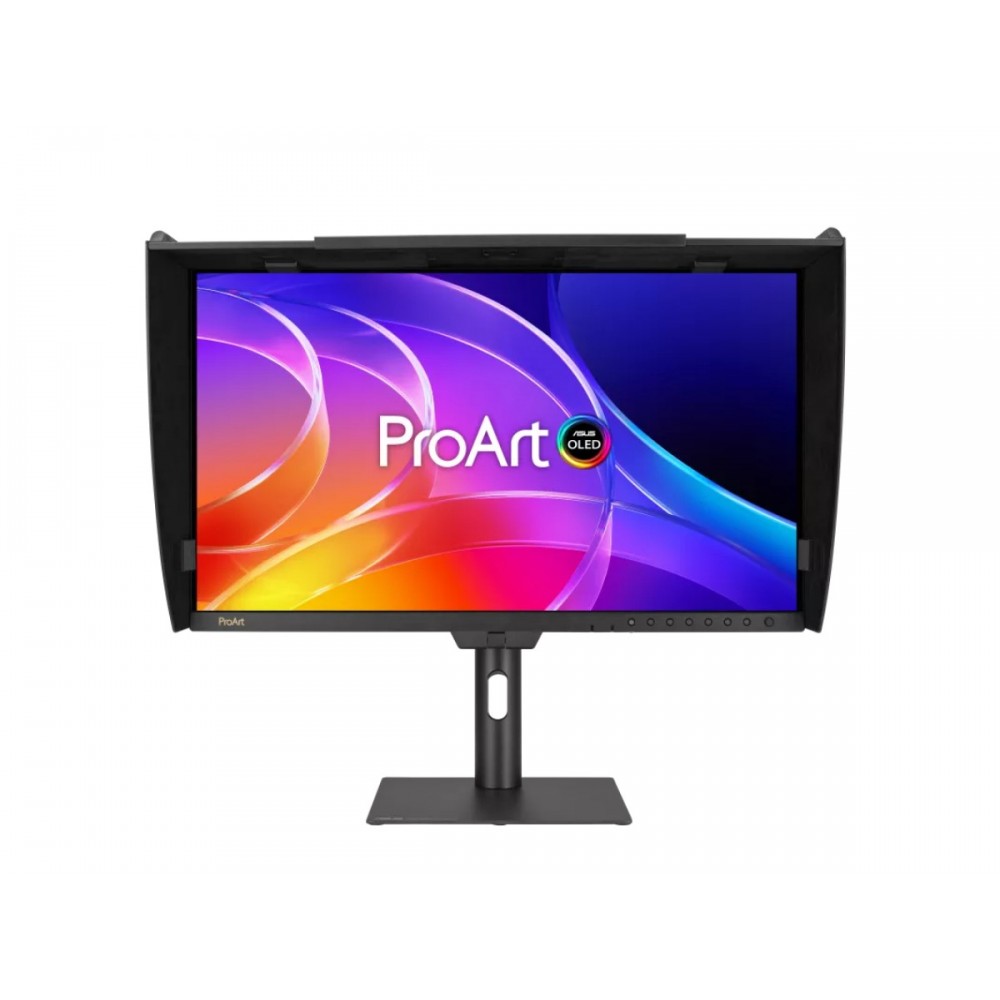

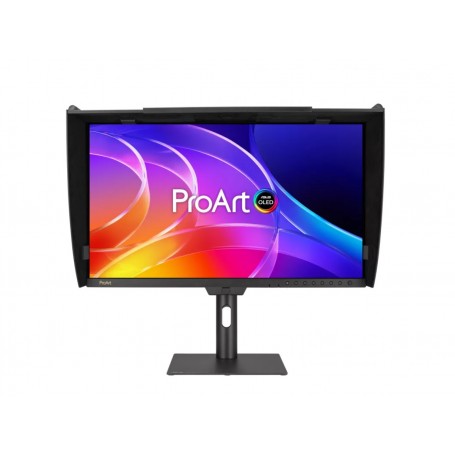

The ASUS ProArt Display OLED PA27USD is a professional 26.5-inch 4K QD-OLED monitor designed for video production, post-production, color grading, and other color-critical creative workflows. It combines 3840 x 2160 resolution, a 240Hz refresh rate, 10-bit color depth, and 99% DCI-P3 coverage for detailed visuals and accurate color reproduction.
Key Features
- 26.5-inch QD-OLED display with 4K UHD resolution of 3840 x 2160.
- 240Hz refresh rate and 0.1ms gray-to-gray response time.
- 99% DCI-P3 and 100% sRGB color gamut coverage.
- 10-bit color depth supporting approximately 1.07 billion colors.
- HDR support for HDR10, HLG, and Dolby Vision.
- Peak HDR brightness up to 1000 nits in specified conditions.
- Built-in motorized flip colorimeter for convenient monitor calibration.
- Factory-calibrated color accuracy for professional creative work.
- One 12G-SDI input for professional video workflows.
- Dual Thunderbolt 4 ports, including up to 96W Power Delivery and daisy-chain support.
- HDMI 2.1, DisplayPort 2.1, and integrated USB 3.2 hub.
- Ergonomic stand with height, tilt, swivel, and pivot adjustments.
Technical Specifications
| Specification | Details |
|---|
| Brand | ASUS |
| Part Number / MPN | PA27USD |
| Product Type | Professional OLED Monitor |
| Series | ProArt Display OLED |
| Screen Size | 26.5 inches |
| Panel Type | QD-OLED |
| Resolution | 3840 x 2160 (4K UHD) |
| Aspect Ratio | 16:9 |
| Refresh Rate | Up to 240Hz |
| Response Time | 0.1ms GTG |
| Color Depth | 10-bit |
| Color Gamut | 99% DCI-P3, 100% sRGB |
| Typical Brightness | 250 cd/m² |
| Peak HDR Brightness | Up to 1000 cd/m² under specified conditions |
| Contrast Ratio | 1,500,000:1 |
| HDR Support | HDR10, HLG, Dolby Vision |
| Video Inputs | 1 x 12G-SDI, 2 x HDMI 2.1, 1 x DisplayPort 2.1 |
| USB-C Connectivity | 2 x Thunderbolt 4 USB-C |
| USB Hub | 2 x USB-A, 1 x USB-C |
| USB-C Power Delivery | Up to 96W |
| Audio | 2 x 3W built-in speakers, headphone jack |
| Calibration | Built-in motorized colorimeter and hardware calibration support |
| Stand Adjustments | Height, tilt, swivel, pivot |
| VESA Mount | 100 x 100mm |
| Power Consumption | Less than 32W typical |
| Power Input | 100–240V AC, 50/60Hz |
| Warranty | 3 years, including panel burn-in |
Physical Dimensions and Weight
| Configuration | Dimensions (W x H x D) | Weight |
|---|
| With Stand | 24.03 x 23.03 x 9.44 inches | 16.53 lbs |
| With Mini Stand | 24.03 x 16.60 x 6.41 inches | 11.82 lbs |
| Without Stand | 24.03 x 14.91 x 23.46 inches | 10.93 lbs |
Applications
- Professional video editing and post-production
- Color grading and color-critical content creation
- Broadcast and video production workflows using 12G-SDI
- Photography and high-resolution image editing
- HDR content creation and review
What's Included
Standard accessories may include the monitor, ergonomic stand, mini stand, monitor hood, power cord, calibration report, cable clip, screwdriver, and documentation. Cable inclusion may vary by package or region.
Why Choose the ASUS PA27USD?
The ASUS PA27USD combines 4K QD-OLED image quality, high refresh rate performance, professional calibration features, and studio-oriented connectivity in one display. Its 12G-SDI input and Thunderbolt 4 connectivity make it a strong option for creators who need precise color reproduction and flexible integration into professional production environments.
