Overview

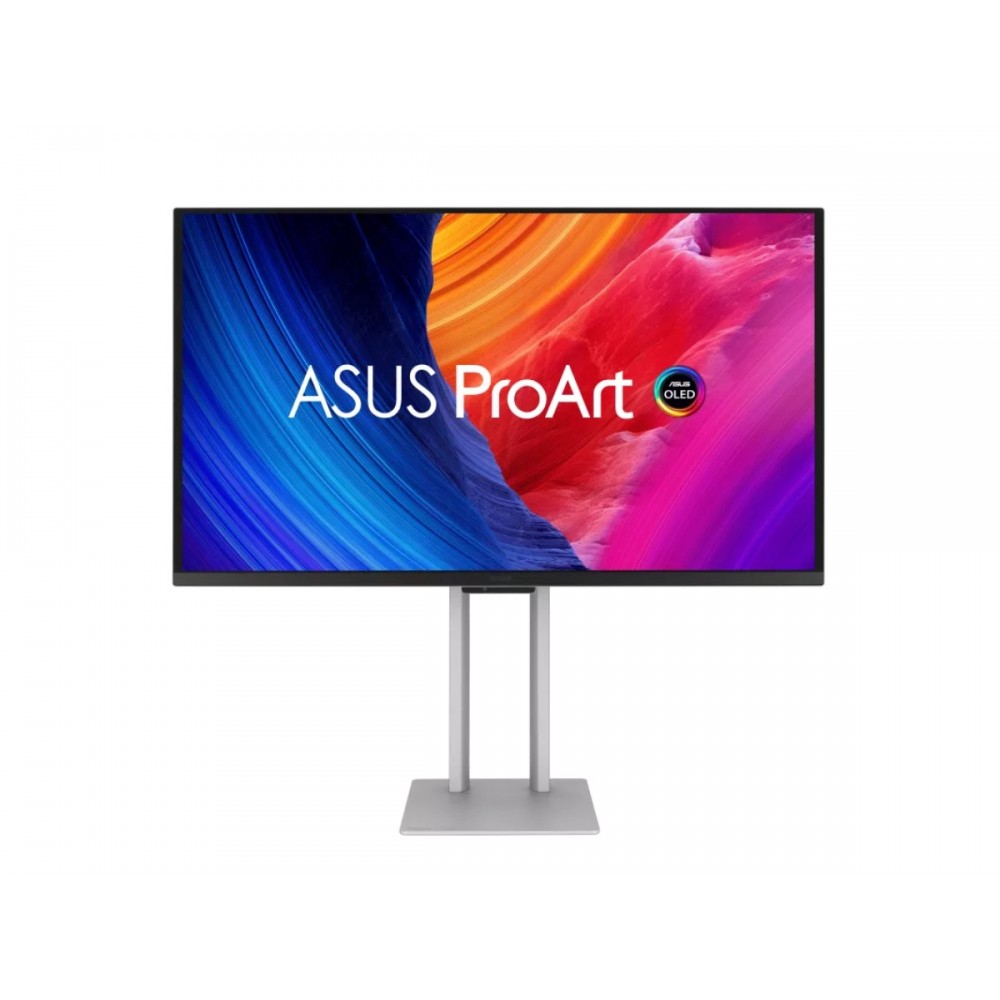

The ASUS PA27UCDMR ProArt Display OLED is a 26.5-inch professional monitor designed for creative professionals, designers, photographers, and video editors. It combines 4K UHD resolution with QD-OLED technology, a 240Hz refresh rate, and 0.1ms GTG response time for detailed visuals and smooth motion.
With 100% sRGB coverage, 99% DCI-P3 coverage, and Delta E < 1 color accuracy, this monitor is designed for demanding color-sensitive workflows. It also supports Dolby Vision, HDR10, and HLG, with Thunderbolt 4 connectivity and up to 96W USB-C power delivery for compatible devices.
Display and Color Performance
The QD-OLED panel delivers 3840 x 2160 4K UHD resolution, deep contrast, and a wide color gamut. Its anti-reflection display surface helps manage reflections in different working environments.
- 26.5-inch QD-OLED panel with 3840 x 2160 resolution
- 240Hz maximum refresh rate and 0.1ms GTG response time
- 100% sRGB and 99% DCI-P3 color space coverage
- Delta E < 1 color accuracy
- 10-bit color support with approximately 1.07 billion colors
- Up to 1,000 cd/m² peak HDR brightness
- 1,500,000:1 contrast ratio
- Dolby Vision, HDR10, and HLG support
- 178-degree horizontal and vertical viewing angles
Connectivity and Audio
The ASUS PA27UCDMR offers modern connectivity for professional workstations and compatible laptops. Dual Thunderbolt 4 ports support daisy-chain configurations, while USB-C power delivery provides up to 96W for compatible connected devices.
- 2 x Thunderbolt 4 USB-C ports with daisy-chain support
- 1 x DisplayPort 1.4 with DSC
- 1 x HDMI 2.1 port with FRL support
- 1 x USB 3.2 Gen 2 Type-A port
- 1 x USB 3.2 Gen 2 Type-C port
- Up to 96W USB-C power delivery
- Built-in stereo speakers rated at 3W per channel
- Picture-in-Picture and Picture-by-Picture support
Ergonomic Design
The adjustable stand allows users to customize the monitor's position for comfortable viewing and different workspace requirements. Pivot support enables portrait orientation, and the standard VESA mounting interface provides compatibility with suitable monitor arms and mounting systems.
- Height adjustment up to 130mm
- Tilt adjustment from -5 to +20 degrees
- Pivot adjustment up to 90 degrees in either direction
- 100 x 100mm VESA wall-mount compatibility
- Ambient light sensor and proximity sensor
- Kensington security lock support
- ASUS OLED Care features
Key Features
- 4K UHD QD-OLED display with a 240Hz refresh rate
- Professional color reproduction with 99% DCI-P3 coverage and Delta E < 1 accuracy
- Dolby Vision, HDR10, and HLG high dynamic range support
- Dual Thunderbolt 4 connectivity with up to 96W power delivery
- Ergonomic stand, hardware calibration support, and ASUS OLED Care
Applications
- Professional photography and image editing
- Graphic design and digital content creation
- Video editing and color grading
- High-resolution HDR content production and review
- Professional Mac and PC workstations
- High-refresh-rate gaming on compatible systems
- Multi-device productivity and daisy-chain display setups
DC Supplies Product Note
The ASUS PA27UCDMR is suitable for users who need professional color performance, a high refresh rate, and flexible Thunderbolt connectivity in one display. For full 4K resolution at 240Hz, confirm that the computer, graphics hardware, cable, and selected input support the required display mode.
The 96W power delivery capability requires a compatible host device and connection. Thunderbolt daisy-chain functionality depends on the connected equipment and supported display configuration. For color-critical work, use an appropriate calibration and color-management workflow. Follow ASUS OLED Care recommendations to help maintain panel performance over time.
Specifications
| Specification | Details |
|---|
| Brand | ASUS |
| Part Number / MPN | PA27UCDMR |
| Product Type | Professional Monitor |
| Product Series | ProArt Display OLED |
| Panel Type | QD-OLED |
| Screen Size | 26.5 inches |
| Resolution | 3840 x 2160 (4K UHD) |
| Aspect Ratio | 16:9 |
| Pixel Density | 166 PPI |
| Pixel Pitch | 0.155mm |
| Display Surface | Anti-reflection |
| Maximum Refresh Rate | 240Hz |
| Response Time | 0.1ms GTG |
| Typical Brightness | 250 cd/m² |
| Peak HDR Brightness | 1,000 cd/m² |
| Contrast Ratio | 1,500,000:1 |
| Color Space | 100% sRGB, 99% DCI-P3 |
| Color Depth | 10-bit, approximately 1.07 billion colors |
| Color Accuracy | Delta E < 1 |
| HDR Support | Dolby Vision, HDR10, HLG |
| Adaptive-Sync | Supported |
| Hardware Calibration | ASUS ProArt Hardware Calibration |
| Video Inputs | 1 x HDMI 2.1, 1 x DisplayPort 1.4 DSC |
| Thunderbolt Connectivity | 2 x Thunderbolt 4 USB-C with daisy-chain support |
| USB-C Power Delivery | Up to 96W |
| USB Ports | 1 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 2 Type-C |
| Display Functions | Picture-in-Picture, Picture-by-Picture |
| Built-in Speakers | 2 x 3W |
| Ergonomic Adjustments | Tilt, pivot, height adjustment |
| Height Adjustment | Up to 130mm |
| VESA Mounting | 100 x 100mm |
| Typical Power Consumption | Less than 25.3W |
| Power Input | 100–240V AC, 50/60Hz |
| Dimensions with Stand (W x H x D) | 23.94 x 22.48 x 8.98 inches |
| Dimensions without Stand (W x H x D) | 23.94 x 13.94 x 1.85 inches |
| Net Weight with Stand | 15.87 lbs |
| Net Weight without Stand | 10.36 lbs |
| Manufacturer Warranty | 3 years, including panel burn-in, subject to regional terms |
Frequently Asked Questions
What is the native resolution of the ASUS PA27UCDMR?
The monitor has a native resolution of 3840 x 2160 pixels, also known as 4K UHD.
What is the maximum refresh rate?
The ASUS PA27UCDMR supports refresh rates up to 240Hz. The available refresh rate depends on the connected device, input, cable, and display configuration.
Does the PA27UCDMR support Thunderbolt 4?
Yes. It includes two Thunderbolt 4 USB-C ports with daisy-chain support for compatible devices and configurations.
Can the monitor charge a laptop?
Yes. Its USB-C power delivery supports up to 96W when connected to a compatible laptop or host device.
Is the ASUS PA27UCDMR suitable for professional color work?
Yes. Its 100% sRGB coverage, 99% DCI-P3 coverage, Delta E < 1 color accuracy, and hardware calibration support make it suitable for many professional creative workflows. Results depend on calibration, settings, and the color-management process.
Can the monitor be mounted on a monitor arm?
Yes. It supports a 100 x 100mm VESA mounting pattern. Check that the selected mount can support the monitor's dimensions and weight.
What warranty does the monitor include?
ASUS lists a three-year warranty that includes panel burn-in, subject to regional warranty terms.
