Overview

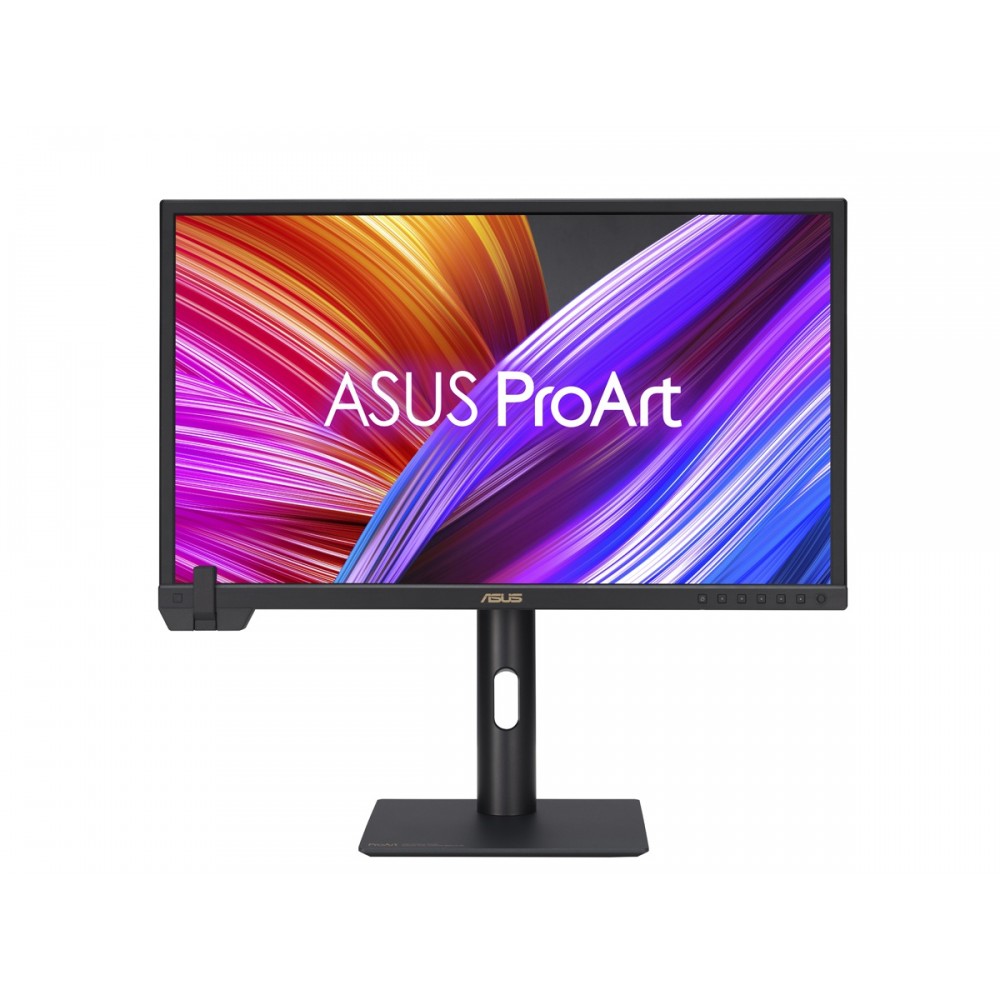

The ASUS PA24US ProArt Display is a 23.6-inch professional 4K UHD monitor designed for color-critical creative work, video production, and broadcast workflows. Its 3840 × 2160 resolution, wide color gamut, and integrated motorized colorimeter support precise display calibration and professional image evaluation.
Color Accuracy and HDR
The IPS panel provides 100% sRGB and 99% Adobe RGB color coverage, with Delta E less than 1 specified color accuracy. It supports HDR10 and HLG content, with peak HDR brightness up to 600 cd/m² and VESA DisplayHDR 600 certification. Hardware calibration and the built-in colorimeter support display calibration workflows.
Video Connectivity
The PA24US includes a 12G-SDI input for professional video equipment, one DisplayPort 1.4 input, two HDMI 2.0 inputs, and USB-C with DisplayPort Alt Mode and up to 80 W USB Power Delivery. Picture-in-Picture and Picture-by-Picture functions support viewing multiple video sources.
Key Features
- 3840 × 2160 4K UHD resolution on a 23.6-inch IPS panel.
- 100% sRGB and 99% Adobe RGB color coverage.
- Built-in motorized colorimeter with hardware calibration support.
- 12G-SDI input for compatible professional video workflows.
- USB-C connectivity with up to 80 W Power Delivery.
Applications
- Professional video editing and broadcast monitoring workflows.
- Color grading, photography, and graphics production.
- HDR content review using supported HDR formats.
- Workstations connecting computers and professional video equipment.
DC Supplies Product Note
The PA24US includes a 12G-SDI input as well as standard computer display connections. Before purchasing, verify that your production equipment uses a compatible SDI connection and that your computer supports the intended 4K display configuration.
Specifications
| Specification | Details |
|---|
| Brand | ASUS |
| Part Number / MPN | PA24US |
| Product Type | Professional Monitor |
| Series | ProArt Display |
| Screen Size | 23.6 inches |
| Panel Type | IPS |
| Resolution | 3840 × 2160 (4K UHD) |
| Aspect Ratio | 16:9 |
| Refresh Rate | Up to 60 Hz |
| Response Time | 5 ms GTG |
| Typical Brightness | 350 cd/m² |
| Peak HDR Brightness | 600 cd/m² |
| Typical Contrast Ratio | 1000:1 |
| Color Coverage | 100% sRGB, 99% Adobe RGB, 95% DCI-P3 |
| Color Accuracy | Delta E less than 1 |
| HDR Support | HDR10, HLG |
| HDR Certification | VESA DisplayHDR 600 |
| Video Inputs | 1 × 12G-SDI, 1 × DisplayPort 1.4, 2 × HDMI 2.0 |
| USB-C | DisplayPort Alt Mode, up to 80 W Power Delivery |
| USB Hub | 2 × USB 3.2 Gen 1 Type-A |
| Calibration | Built-in motorized colorimeter, hardware calibration support |
| Audio | 2 × 2 W speakers, headphone jack |
| Stand Adjustments | Tilt, swivel, pivot, height adjustment up to 130 mm |
| VESA Mounting | 100 × 100 mm |
| Power Input | 100–240 V AC, 50/60 Hz |
| Typical Power Consumption | Less than 24.1 W |
| Dimensions with Stand (W × H × D) | 549 × 521 × 190 mm (approx.) |
| Dimensions without Stand (W × H × D) | 549 × 346 × 63 mm (approx.) |
| Net Weight | 6.0 kg |
| Weight without Stand | 4.3 kg |
Frequently Asked Questions
Does the PA24US support 4K resolution?
Yes, its native resolution is 3840 × 2160 at a maximum refresh rate of 60 Hz.
Can it connect to professional broadcast equipment?
Yes, it includes a 12G-SDI input for compatible professional video equipment.
Does the monitor support hardware calibration?
Yes, it includes a built-in motorized colorimeter and supports ASUS ProArt hardware calibration.
Can USB-C charge a connected laptop?
The USB-C port supports Power Delivery up to 80 W. Confirm that the connected laptop supports USB-C charging and that its power requirements are compatible.
Can it be mounted on a monitor arm?
Yes, the monitor supports compatible 100 × 100 mm VESA mounting systems.
