Detailed Specifications
Overview

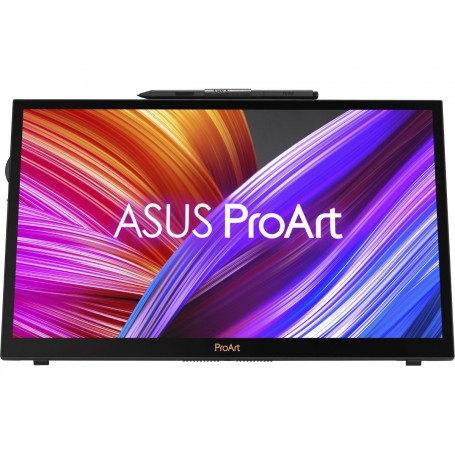

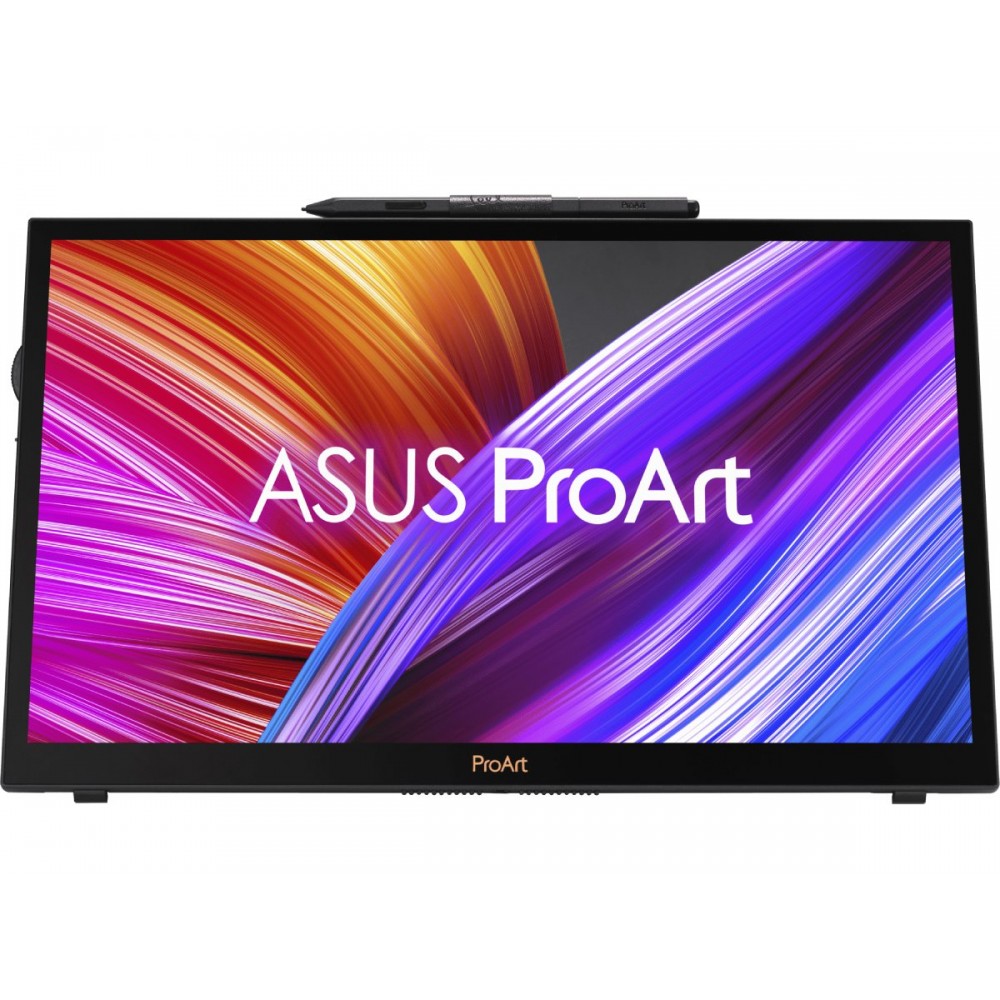

The ASUS ProArt Display PA169CDV is a portable 15.6-inch 4K UHD touchscreen pen display designed for digital artists, photographers, designers and creative professionals. Its IPS panel delivers detailed visuals and accurate color reproduction, while 10-point touch functionality and the included ASUS ProArt Pen with Wacom EMR technology support natural drawing, writing and editing workflows.
Key Features
- 4K UHD Resolution: The 3840 × 2160 display provides detailed imagery for design, photo editing and creative projects.
- Color Accuracy: Factory-calibrated color performance with Delta E less than 2, Pantone Validated and Calman Verified certifications.
- 10-Point Touchscreen: Interactive touch input supports compatible creative applications and workflows.
- Wacom EMR Pen: The included ASUS ProArt Pen offers 4096 levels of pressure sensitivity for drawing and handwriting.
- Portable Connectivity: USB-C with DisplayPort Alt Mode and HDMI 2.0 support flexible connections to compatible devices.
Technical Specifications
| Brand | ASUS |
|---|
| Product Series | ProArt |
|---|
| Part Number / MPN | PA169CDV |
|---|
| Product Type | Portable Touchscreen Pen Display |
|---|
| Screen Size | 15.6 inches |
|---|
| Panel Technology | IPS |
|---|
| Native Resolution | 3840 × 2160 (4K UHD) |
|---|
| Aspect Ratio | 16:9 |
|---|
| Refresh Rate | 60 Hz |
|---|
| Response Time | 10 ms (GTG) |
|---|
| Typical Brightness | 450 cd/m² |
|---|
| Peak HDR Brightness | 500 cd/m² |
|---|
| Typical Contrast Ratio | 1200:1 |
|---|
| Color Gamut | 100% sRGB, 92% Adobe RGB, 88% DCI-P3 |
|---|
| Color Accuracy | Delta E less than 2 |
|---|
| Display Colors | 1.07 billion colors, 10-bit |
|---|
| HDR Support | HDR10; VESA DisplayHDR 400 |
|---|
| Touchscreen | 10-point projected capacitive touch |
|---|
| Pen Technology | Wacom EMR |
|---|
| Pen Pressure Sensitivity | 4096 levels |
|---|
| USB-C | 1 × USB-C with DisplayPort Alt Mode |
|---|
| HDMI | 1 × HDMI 2.0 |
|---|
| USB-C Power Delivery | 15 W |
|---|
| Speakers | 2 × 1 W |
|---|
| Physical Dimensions (W × H × D) | 37.0 × 23.7 × 1.2 cm (14.57 × 9.33 × 0.47 inches) |
|---|
| Net Weight | 1.07 kg (2.36 lbs) |
|---|
| Mounting | 1/4-inch tripod socket |
|---|
Creative Workflow and Color Performance
The PA169CDV is built for color-sensitive work such as photo editing, illustration and visual design. Its 4K resolution provides fine detail, while the ProArt color presets and color adjustment options help users tailor the display to their workflow. Pantone Validation, Calman Verification and factory calibration with Delta E less than 2 support color-conscious creative tasks.
Touch and Pen Interaction
The 10-point touchscreen supports direct interaction with compatible software. The included ASUS ProArt Pen uses Wacom EMR technology and provides 4096 pressure levels for controlled strokes, sketching and handwriting. Touch and pen features may depend on the operating system, software and connected device.
Connectivity and Physical Design
The monitor includes USB-C with DisplayPort Alt Mode and an HDMI 2.0 input for connecting compatible computers and other video sources. Its dual-kickstand design offers different viewing angles, and the 1/4-inch tripod socket provides an additional mounting option. The portable design is suitable for studio work, presentations and creative tasks away from a fixed desk.
DC Supplies Product Note
The ASUS PA169CDV combines a high-resolution touchscreen with pen input and color-focused display features in a portable format. Before purchase, verify that your computer supports the required video connection and that your operating system and applications support the intended touch and pen functions.
