Detailed Specifications
Overview

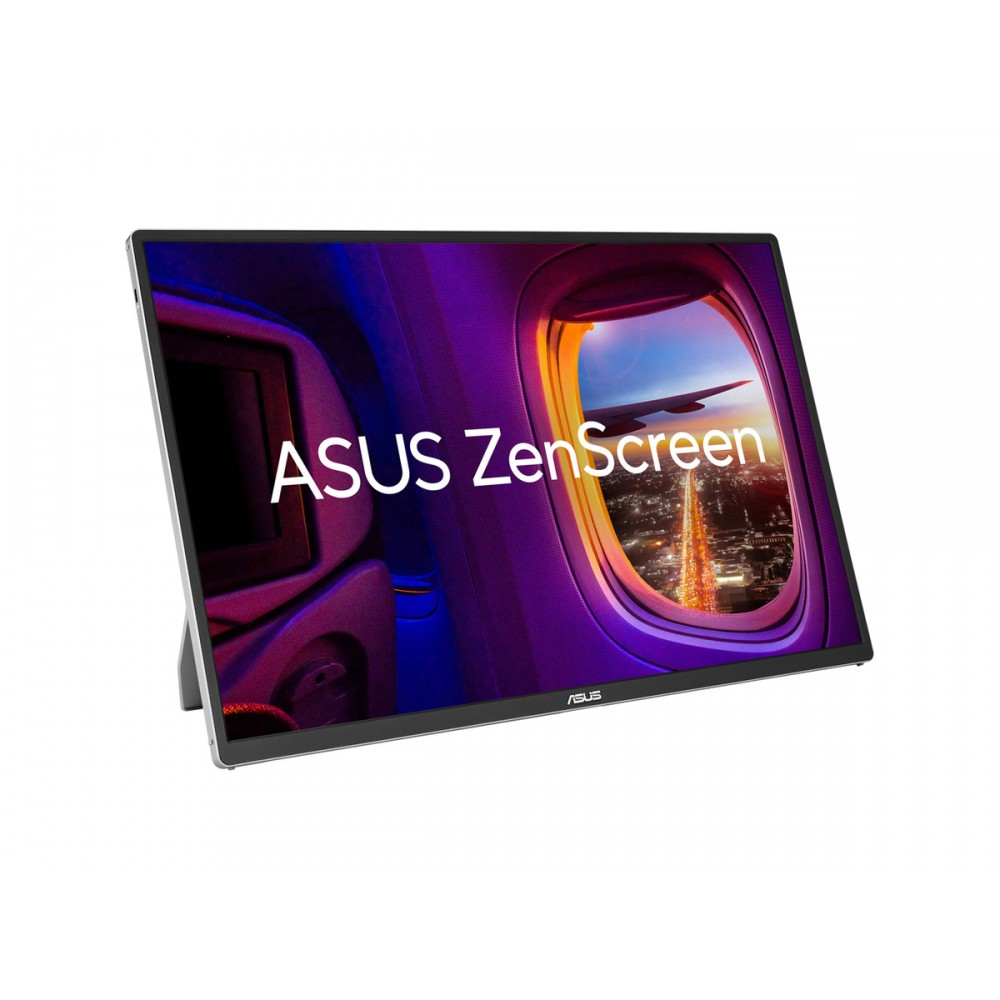

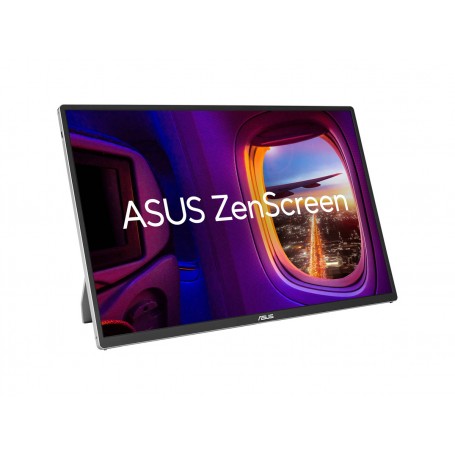

The ASUS ZenScreen OLED MQ16FC is a 16-inch portable monitor designed to expand your workspace for business, travel and everyday productivity. Its WUXGA OLED display delivers detailed visuals, deep blacks and vibrant colors, while the 16:10 aspect ratio provides additional vertical workspace for documents and multitasking.
Key Features
- 16-inch OLED Display: OLED technology provides rich colors and deep blacks for detailed viewing.
- WUXGA Resolution: 1920 × 1200 resolution with a 16:10 aspect ratio for an expanded workspace.
- Color Accuracy: 95% DCI-P3 color gamut and Delta E less than 2 for accurate color reproduction.
- Flexible Connectivity: Two USB-C ports with DisplayPort Alt Mode and one Mini HDMI input.
- Portable Productivity: Automatic screen rotation support, a built-in kickstand and a 1/4-inch tripod socket support flexible setups.
Technical Specifications
| Brand | ASUS |
|---|
| Series | ZenScreen OLED |
|---|
| Part Number / MPN | MQ16FC |
|---|
| Product Type | Portable OLED Monitor |
|---|
| Screen Size | 16 inches |
|---|
| Panel Technology | OLED |
|---|
| Resolution | 1920 × 1200 (WUXGA) |
|---|
| Aspect Ratio | 16:10 |
|---|
| Refresh Rate | 60 Hz |
|---|
| Response Time | 1 ms (GTG) |
|---|
| Brightness | 300 cd/m² (typical) |
|---|
| Contrast Ratio | 100,000:1 (typical) |
|---|
| Color Gamut | 95% DCI-P3 |
|---|
| Color Accuracy | Delta E less than 2 |
|---|
| Viewing Angle | 178° horizontal / 178° vertical |
|---|
| USB-C Ports | 2 × USB-C with DisplayPort Alt Mode |
|---|
| Video Input | 1 × Mini HDMI |
|---|
| Power Pass-Through | Up to 65 W |
|---|
| Auto Rotation | Supported through ASUS DisplayWidget Center |
|---|
| Tripod Socket | 1/4-inch |
|---|
| Eye Care | Flicker-Free and Low Blue Light |
|---|
| Physical Dimensions (W × H × D) | 35.9 × 23.3 × 0.9 cm |
|---|
| Net Weight | 0.68 kg (1.50 lbs) |
|---|
Connectivity and Power
The two USB-C ports support DisplayPort Alt Mode for compatible devices, allowing video and power over a single cable when supported by the connected device. The Mini HDMI input provides an additional video connection option. Power pass-through supports up to 65 W when used with a suitable power source and compatible setup.
Portable Work Setup
The slim, lightweight design makes the MQ16FC suitable as a secondary screen for remote work, presentations and travel. Its auto-rotation feature supports landscape and portrait orientations through compatible software, while the tripod socket provides an additional mounting option.
DC Supplies Product Note
The ASUS MQ16FC is designed for users who need a portable OLED display with flexible connectivity and color-focused image quality. Before purchasing, confirm that your device supports USB-C DisplayPort Alt Mode if you intend to use USB-C for video.
