Overview

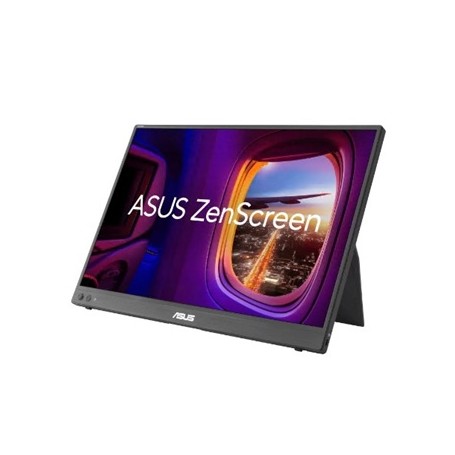

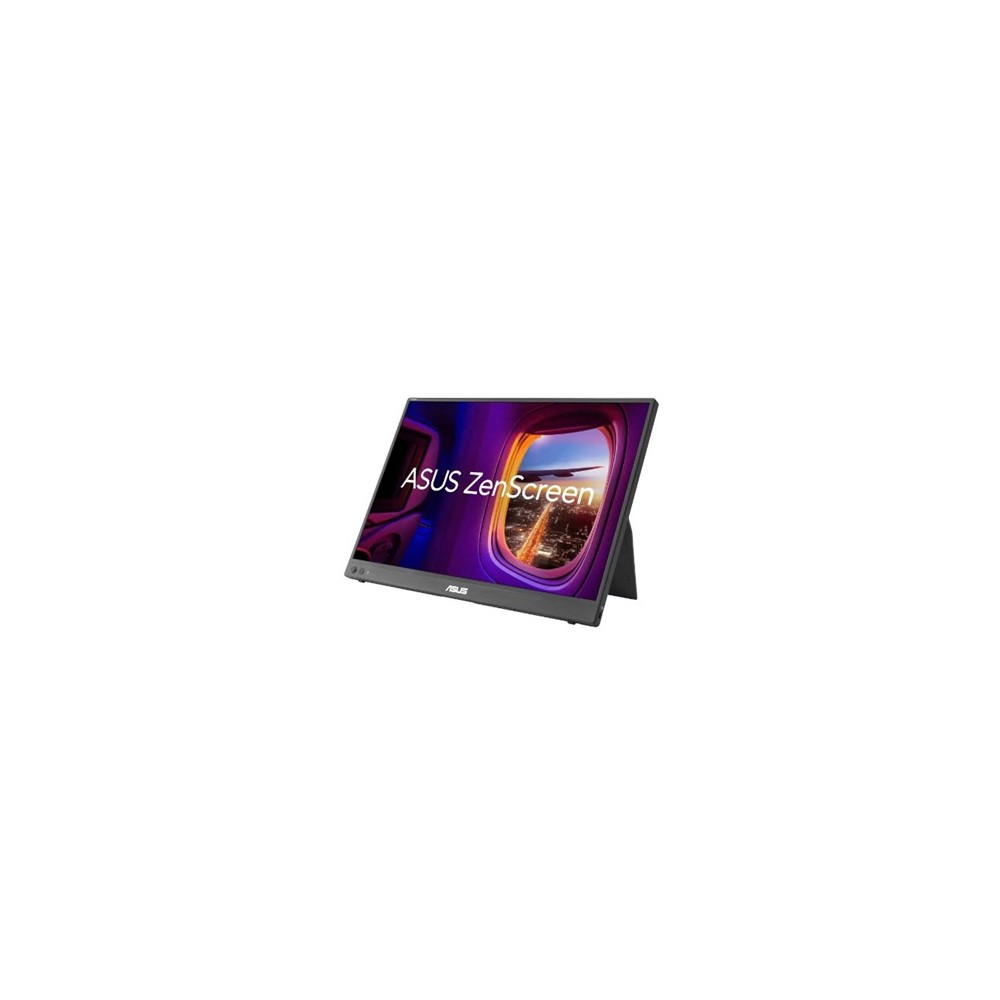

The ASUS ZenScreen MB16NCG is a 16-inch portable monitor designed to expand your workspace for business, productivity, and entertainment. It features a WQXGA resolution of 2560 × 1600, an IPS panel, and a 16:10 aspect ratio for additional vertical screen space. With a refresh rate of up to 155Hz, HDR10 support, dual USB-C ports, and Mini HDMI connectivity, it is suitable for compatible laptops and other supported devices.
Key Features
- 16-Inch WQXGA Display: 2560 × 1600 resolution provides detailed visuals and additional workspace.
- Up to 155Hz Refresh Rate: SmoothMotion technology supports fluid scrolling and motion on compatible USB-C connections.
- IPS Panel with HDR10: Wide viewing angles, 100% sRGB coverage, and HDR10 support enhance the viewing experience.
- Flexible Connectivity: Two USB-C ports with DisplayPort Alt Mode and one Mini HDMI input support compatible devices.
- Power Pass-Through: Supports up to 65W power delivery to a compatible laptop when connected to a suitable power source.
Display and Productivity
The 16:10 display provides more vertical workspace than a standard 16:9 screen, making it useful for documents, spreadsheets, coding, and multitasking. The anti-glare surface helps reduce reflections, while the 400 cd/m² typical brightness and 1500:1 typical contrast ratio support clear, detailed images.
Connectivity and Power
The ZenScreen MB16NCG includes two USB-C ports supporting DisplayPort Alt Mode and a Mini HDMI input. A compatible USB-C connection can carry video and power through a single cable. Its power pass-through feature can deliver up to 65W to a compatible laptop when the monitor is connected to a suitable power source. For Mini HDMI video input, a separate power connection may be required.
Flexible Positioning and Eye Care
The monitor supports automatic screen rotation through ASUS DisplayWidget Center, allowing use in landscape or portrait orientation. An integrated 1/4-inch tripod socket provides an additional mounting option. Flicker-Free and Low Blue Light technologies are included to support viewing comfort.
DC Supplies Product Note
The ASUS MB16NCG is a portable external monitor, not a standalone computer. A compatible laptop or other video source is required. The maximum 155Hz refresh rate is supported through USB-C, while Mini HDMI supports up to 120Hz according to the manufacturer's specifications. Power pass-through requires an appropriate power source and compatible USB-C power delivery.
Specifications
| Specification | Details |
|---|
| Brand | ASUS |
| Part Number / MPN | MB16NCG |
| Product Type | Portable Monitor |
| Product Series | ZenScreen |
| Screen Size | 16 inches |
| Panel Technology | IPS |
| Resolution | 2560 × 1600 WQXGA |
| Aspect Ratio | 16:10 |
| Maximum Refresh Rate | 155Hz via USB-C; up to 120Hz via Mini HDMI |
| Response Time | 5ms GTG |
| Typical Brightness | 400 cd/m² |
| Typical Contrast Ratio | 1500:1 |
| Viewing Angle | 178° horizontal / 178° vertical |
| Display Surface | Anti-glare |
| Display Colors | 16.7 million (8-bit) |
| Color Gamut | 100% sRGB |
| HDR Support | HDR10 |
| Adaptive Sync | AMD FreeSync / Adaptive-Sync |
| USB Connectivity | 2 × USB-C with DisplayPort Alt Mode |
| Video Input | 1 × Mini HDMI |
| Power Pass-Through | Up to 65W |
| Built-in Speakers | No |
| Auto Rotation | Supported through DisplayWidget Center |
| Eye Care Features | Flicker-Free and Low Blue Light |
| Mounting | 1/4-inch tripod socket |
| Kensington Lock | Yes |
| Typical Power Consumption | Up to 6.79W under specified test conditions |
| Dimensions (W × H × D) | 35.8 × 24.6 × 1.1 cm |
| Net Weight | 0.9 kg (approximately 1.98 lbs) |
| Included Accessories | ZenScreen sleeve, USB-C cable, Mini HDMI-to-HDMI cable, quick-start guide and warranty card; power adapter may be optional depending on region |
Frequently Asked Questions
Is the ASUS MB16NCG a desktop computer?
No. It is a portable monitor that requires a compatible computer or supported video source.
What resolution does it support?
It supports WQXGA resolution of 2560 × 1600 pixels on its 16-inch display.
Does it support high refresh rates?
Yes. It supports up to 155Hz through USB-C and up to 120Hz through Mini HDMI, according to ASUS specifications.
Can it charge a laptop?
Yes. Its power pass-through feature supports up to 65W for compatible laptops when connected to a suitable power source.
