Overview

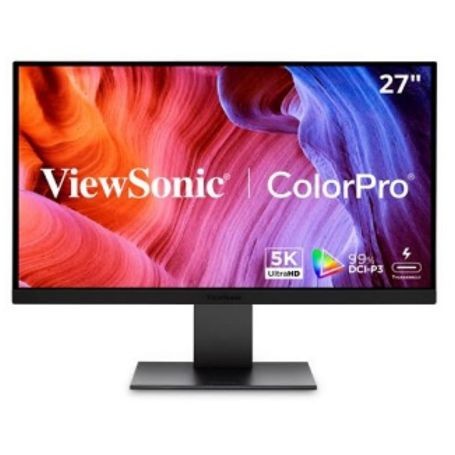

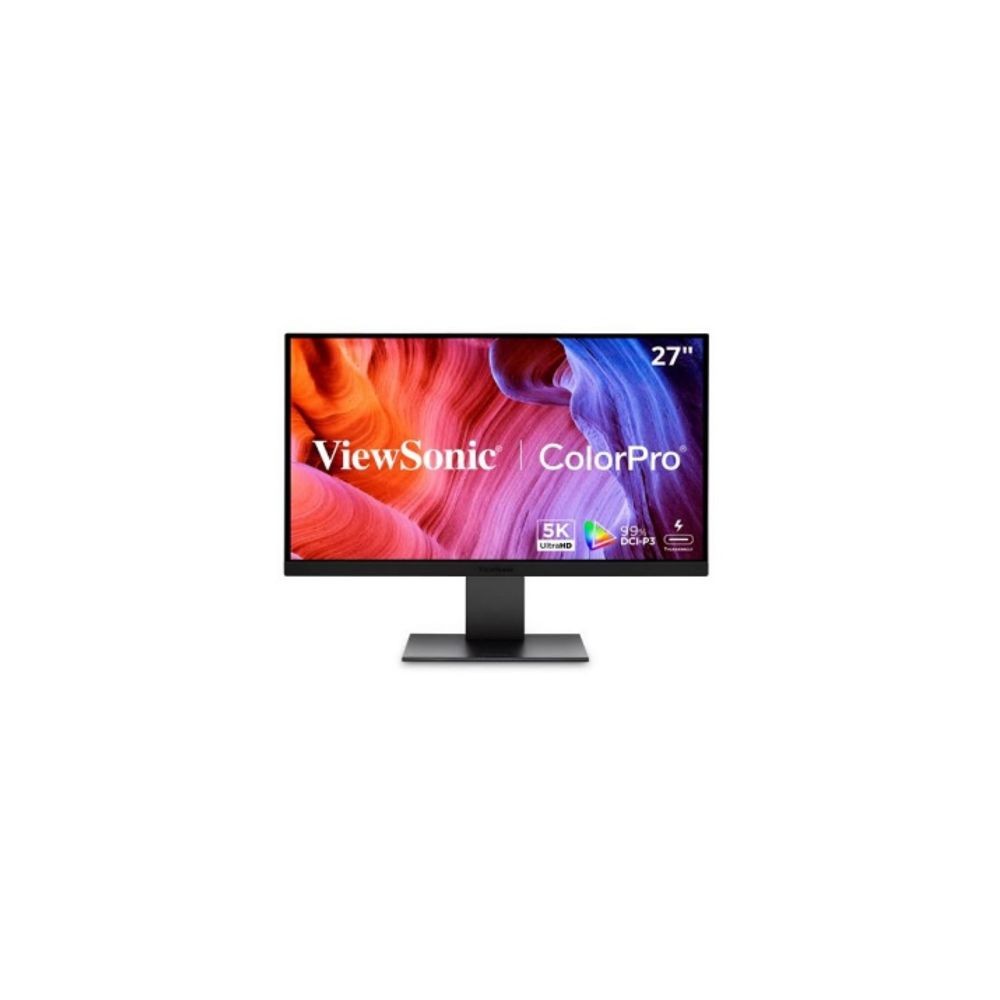

The ViewSonic ColorPro VP2788-5K is a 27-inch professional monitor designed for detailed visual work, content creation and productivity. Its 5120 x 2880 5K resolution delivers a high pixel density for fine image detail and clear text. The IPS panel combines wide viewing angles with 99% DCI-P3 colour coverage, making this monitor suitable for colour-focused creative workflows.
Thunderbolt 4 connectivity supports video, data transfer and up to 100W power delivery to a compatible connected laptop. A second Thunderbolt 4 port supports downstream connectivity and compatible daisy-chain display setups, while HDMI 2.1, DisplayPort and USB ports provide additional connection options.
Key Features
- 27-inch 5K resolution: The 5120 x 2880 display provides detailed visuals for photo editing, design, document work and high-resolution content.
- Professional colour reproduction: The IPS panel provides 99% DCI-P3 coverage and 100% sRGB coverage, with 10-bit colour support through an 8-bit plus FRC configuration.
- Thunderbolt 4 with up to 100W power delivery: Connect a compatible laptop for display output, data transfer and charging through a single cable.
- HDR400 support: VESA DisplayHDR 400 certification and a typical brightness of 500 cd/m² support compatible HDR content.
- Flexible ergonomic design: The adjustable stand supports height adjustment, tilt, swivel and pivot, while VESA mounting offers another installation option.
Technical Information
The VP2788-5K uses a flat 27-inch IPS panel with a 16:9 aspect ratio, a typical static contrast ratio of 2000:1 and a 5ms GTG response time. Its anti-glare, low-reflection surface has a 3H hard coating. The display supports up to 1.07 billion colours and has a typical brightness rating of 500 cd/m².
Connectivity includes one Thunderbolt 4 upstream port supporting up to 100W power delivery, one Thunderbolt 4 downstream port supporting up to 15W, one USB-C downstream port supporting up to 15W, two USB-A downstream ports, one HDMI 2.1 input and one DisplayPort input. The monitor also includes two 5W speakers and a headphone output.
Compatibility
- Supports compatible Windows PCs and macOS systems capable of outputting the monitor's supported resolution.
- Thunderbolt 4 supports display, data and power delivery with compatible host devices and cables.
- USB-C video functionality depends on whether the connected computer's USB-C port supports video output.
- HDMI 2.1 and DisplayPort provide alternative digital video connections for compatible computers and other source devices.
- Thunderbolt daisy chaining requires compatible host hardware, connections and display configurations.
- The 100 x 100mm VESA mounting pattern supports compatible monitor arms and wall mounts.
Applications
- Professional photo editing and image retouching
- Graphic design and digital content creation
- Video editing and high-resolution media production
- Colour-focused creative and design workflows
- Productivity, multitasking and detailed document work
- MacBook and compatible laptop desk setups
Specifications
| Brand | ViewSonic |
|---|
| Part Number / MPN | VP2788-5K |
|---|
| Product Type | Professional 5K IPS monitor |
|---|
| Product Series | ColorPro |
|---|
| Screen Size | 27 inches |
|---|
| Panel Technology | IPS |
|---|
| Native Resolution | 5120 x 2880 (5K) |
|---|
| Aspect Ratio | 16:9 |
|---|
| Typical Refresh Rate | Check the specification for the destination market; official regional listings differ between 60Hz and 75Hz. |
|---|
| Response Time | 5ms GTG |
|---|
| Typical Brightness | 500 cd/m² |
|---|
| Static Contrast Ratio | 2000:1 typical |
|---|
| HDR Support | VESA DisplayHDR 400 |
|---|
| Colour Support | Up to 1.07 billion colours; 10-bit support via 8-bit + FRC |
|---|
| DCI-P3 Coverage | 99% typical |
|---|
| sRGB Coverage | 100% typical |
|---|
| Adobe RGB Coverage | 88% typical |
|---|
| Viewing Angles | 178° horizontal / 178° vertical |
|---|
| Surface Treatment | Anti-glare, low-reflection, 3H hard coating |
|---|
| Thunderbolt Connectivity | 1 x Thunderbolt 4 upstream (up to 100W power delivery); 1 x Thunderbolt 4 downstream (up to 15W) |
|---|
| USB-C | 1 x USB-C downstream, up to 15W charging and data transfer |
|---|
| USB-A | 2 x USB 3.2 downstream ports |
|---|
| Video Inputs | 1 x HDMI 2.1; 1 x DisplayPort 1.4 |
|---|
| Audio | 2 x 5W built-in speakers; headphone output |
|---|
| Ergonomic Adjustments | 120mm height adjustment, tilt, swivel and 90° pivot |
|---|
| VESA Mounting | 100 x 100mm |
|---|
| Typical Power Consumption | 47W |
|---|
| Maximum Power Consumption | 50W |
|---|
| Power Input | AC 100–240V via external power adapter |
|---|
| Dimensions with Stand | 612.94 x 424.73–544.55 x 209.91mm (W x H x D) |
|---|
| Dimensions without Stand | 612.94 x 367.23 x 57.5mm (W x H x D) |
|---|
| Weight with Stand | Approximately 6.4kg |
|---|
| Weight without Stand | Approximately 4.2kg |
|---|
DC Supplies Product Note
For a laptop-based workstation, check the computer's Thunderbolt or USB-C video capabilities and power requirements before purchasing. The monitor can deliver up to 100W through its Thunderbolt 4 upstream connection, but the laptop must support charging over that connection. If planning a dual-monitor workstation, confirm that the host device supports the intended daisy-chain configuration and resolution.
Frequently Asked Questions
What resolution does the ViewSonic VP2788-5K support?
Its native resolution is 5120 x 2880 pixels, commonly referred to as 5K.
Can the monitor charge a laptop?
Yes. Its Thunderbolt 4 upstream connection supports up to 100W power delivery. Actual charging depends on the laptop's charging requirements and compatibility.
Is this monitor suitable for colour-sensitive work?
It offers 99% typical DCI-P3 coverage, 100% typical sRGB coverage and 10-bit colour support through 8-bit plus FRC. The suitability of a particular workflow also depends on calibration, software and the required colour standard.
Does the VP2788-5K support HDR?
Yes. It supports HDR and is listed with VESA DisplayHDR 400 certification. HDR performance also depends on the source device, operating system and content.
Can I connect multiple monitors using Thunderbolt?
The monitor supports compatible Thunderbolt daisy-chain setups, including dual-5K display configurations. The computer's Thunderbolt capabilities, supported display count and available bandwidth must also be considered.
Can it be mounted on a monitor arm?
Yes. It has a 100 x 100mm VESA mounting pattern. Make sure the selected arm supports the monitor's weight and dimensions.
