Overview

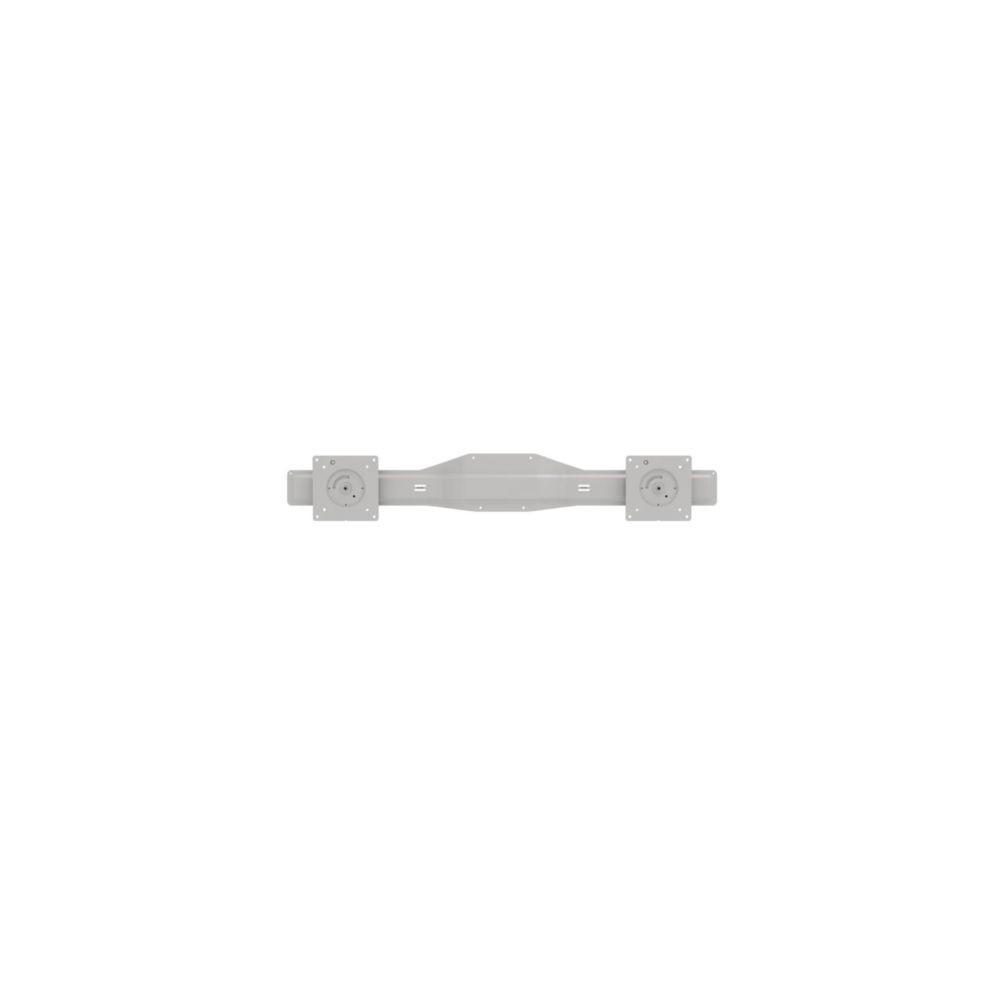

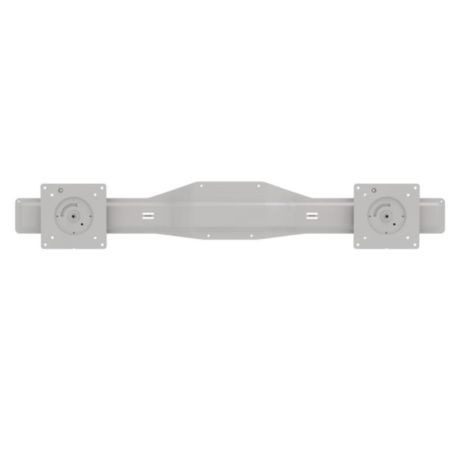

The Ergotron 98-650-251 CareFit Combo Dual Monitor Kit is a dual-display mounting accessory for compatible Ergotron CareFit Combo wall workstations. It enables the workstation to accommodate two LCD monitors, allowing users to view multiple applications or information sources simultaneously.
The kit includes a mounting bow and two monitor brackets. Its design supports coordinated display positioning, making it suitable for clinical workstations where patient records, clinical applications, and other information may need to be viewed across two screens.
Display Configuration and Positioning
The kit supports two monitors, each measuring up to 24 inches diagonally, subject to the specified mounting and weight limits. The displays can be rotated between portrait and landscape orientations using the supported mounting arrangement.
A lockout screw can be engaged to secure the display orientation in either portrait or landscape mode. The maximum combined outside width of the two displays is 26 inches (66 cm), which should be considered when selecting monitors.
Mounting Interface
The kit uses VESA-compatible monitor mounting interfaces supporting 75 × 75 mm and 100 × 100 mm mounting patterns. It is intended for integration with compatible CareFit Combo wall workstation configurations rather than use as a standalone desk-mounted monitor arm.
Key Features
- Dual-display support: Accommodates two compatible LCD monitors.
- VESA compatibility: Supports 75 × 75 mm and 100 × 100 mm monitor mounting patterns.
- Flexible screen orientation: Supports portrait and landscape positioning with an orientation lockout option.
- Coordinated display mounting: Uses a shared mounting bow and two monitor brackets to organize both displays within one workstation configuration.
- Cable management: Includes a cable cover to help organize cables around the mounting assembly.
Compatibility and Installation
The Ergotron 98-650-251 is designed for compatible CareFit Combo wall workstations. Before ordering, confirm the exact workstation model, available mounting capacity, monitor dimensions, VESA mounting patterns, and the weight of each display.
Each monitor must weigh no more than 9 lb (4.1 kg), and the combined display weight must not exceed 18 lb (8.2 kg). The two monitors should be approximately equal in weight.
This kit is not compatible with configurations that include the Ergotron CareFit Combo CPU Tray (98-548-251) or Top-Mount Scanner Holder (98-649-251). Check the complete accessory configuration before combining components.
Applications
The dual-monitor configuration is intended for compatible healthcare workstations where displaying multiple information sources can support clinical documentation and information sharing. It can accommodate workflows that benefit from viewing separate applications on two screens without requiring users to switch constantly between a single display's windows.
DC Supplies Product Note
Account for the weight of the kit itself when checking the workstation's remaining load capacity. The dual-monitor assembly adds approximately 5 lb (2.2 kg) to the mount and reduces the mount's overall available capacity by the same amount. Verify the workstation's remaining capacity before installation, and confirm that the combined monitor width does not exceed the specified limit.
Specifications
| Brand | Ergotron |
|---|---|
| Part Number / MPN | 98-650-251 |
| Product Type | Dual-monitor mounting kit |
| Product Series | CareFit Combo |
| Supported Displays | 2 LCD monitors |
| Maximum Monitor Size | 24 inches per display |
| Maximum Individual Monitor Weight | 9 lb (4.1 kg) |
| Maximum Combined Monitor Weight | 18 lb (8.2 kg) |
| Monitor Weight Configuration | Monitors should be approximately equal in weight |
| Maximum Combined Outside Display Width | 26 inches (66 cm) |
| VESA Mounting Patterns | 75 × 75 mm and 100 × 100 mm |
| Display Orientation | Portrait or landscape |
| Orientation Lock | Lockout screw |
| Product Color | White |
| Product Weight | Approximately 4.8 lb (2.2 kg) |
| Included Components | Mounting bow, two monitor brackets, cable cover, and attachment hardware |
| Compatible Platform | Compatible Ergotron CareFit Combo wall workstations |
| Known Configuration Exclusions | CareFit Combo CPU Tray (98-548-251) and Top-Mount Scanner Holder (98-649-251) |
| UPC / GTIN | 698833090130 |
| Manufacturer Warranty | 5 years, subject to manufacturer terms and exclusions |
Frequently Asked Questions
Can this kit support two monitors of different sizes?
The kit supports two monitors up to 24 inches each, subject to its weight and combined-width limits. The monitors should be approximately equal in weight. Verify the dimensions and mounting requirements of the specific displays before installation.
Which VESA mounting patterns are supported?
The monitor brackets support 75 × 75 mm and 100 × 100 mm VESA mounting patterns. Confirm that both monitors use one of these patterns.
Can the monitors be used in portrait orientation?
Yes. The mounting arrangement supports portrait and landscape orientations. A lockout screw can be engaged to secure the selected orientation.
Can this kit be installed on any monitor stand or workstation?
No. It is intended for compatible Ergotron CareFit Combo wall workstations. Confirm compatibility with the exact workstation model before purchasing.
Can this kit be combined with the CareFit Combo CPU tray or top-mount scanner holder?
No. The 98-650-251 is listed as incompatible with configurations that include the CareFit Combo CPU Tray (98-548-251) or Top-Mount Scanner Holder (98-649-251).
Does the kit include the monitors?
The listed package contents are the mounting bow, two monitor brackets, cable cover, and attachment hardware. Monitors are not listed as included components and should be sourced separately.
