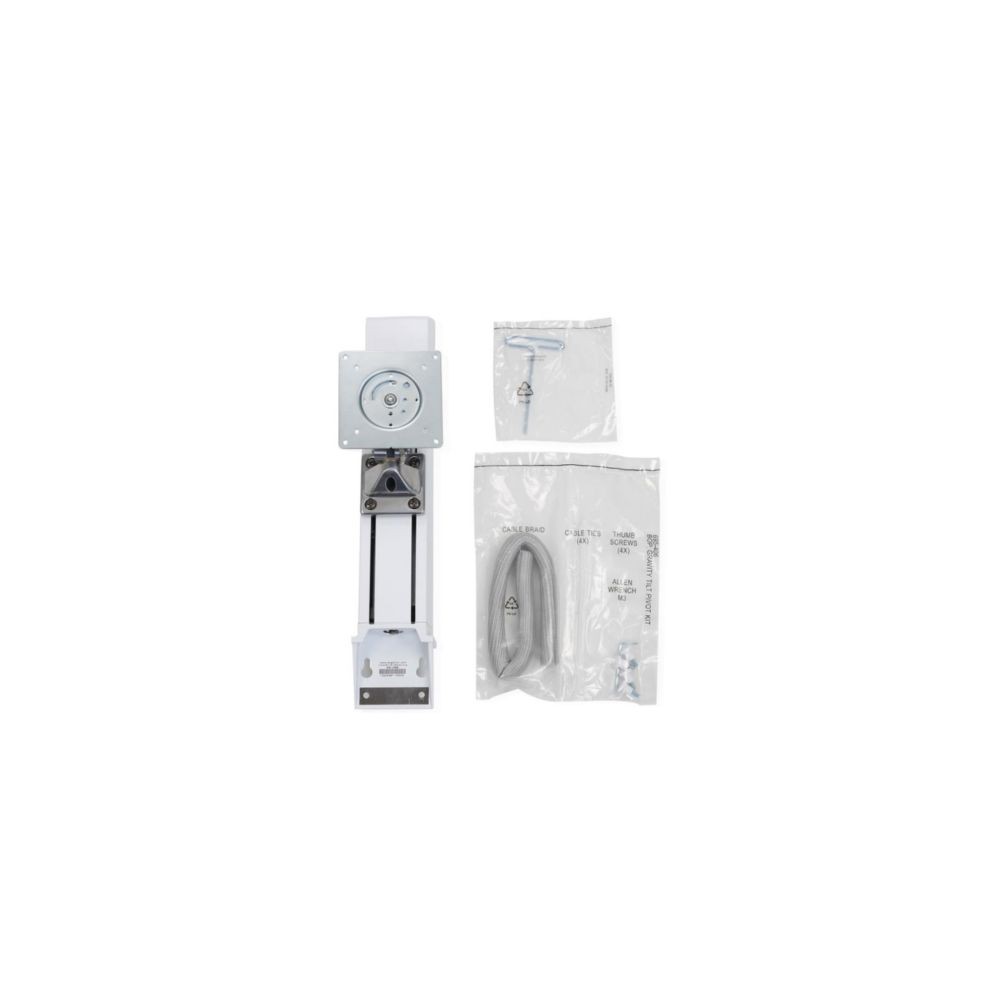

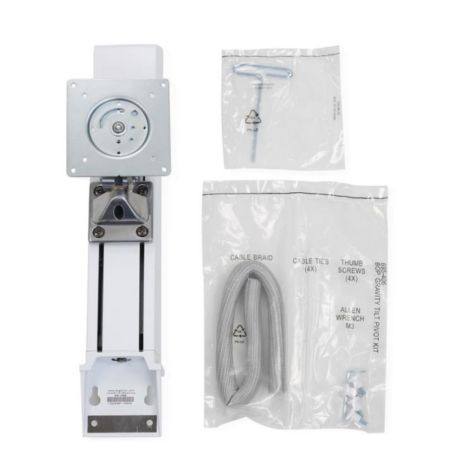

The Ergotron StyleView SV HD Monitor Kit with Pivot, part number 98-088, is a monitor mounting and positioning solution designed for compatible medical carts and mounting systems. It accommodates supported high-definition displays and provides adjustable positioning to help users achieve a suitable viewing angle in clinical and professional environments.
The pivot mechanism allows the monitor to be adjusted in height, tilt, pan, and rotation. Its robust construction is designed for regular use, while integrated cable-management features help keep display cables organized behind the screen. A design feature helps prevent incorrect installation when the kit is fitted according to the manufacturer's instructions.
Key Features
- Adjustable monitor positioning: Supports height adjustment, tilt, pan, and rotation for flexible screen placement.
- High-definition display support: Designed for compatible monitors weighing between 14 and 24 lb (6.4–10.9 kg).
- Display size support: Accommodates compatible displays up to 27 inches.
- Integrated cable management: Helps organize cables behind the mounted display.
- Robust construction: Designed for dependable use in compatible medical-cart and workstation configurations.
Product Specifications
| Brand | Ergotron |
|---|
| Product Line | StyleView |
|---|
| Product Name | SV HD Monitor Kit with Pivot |
|---|
| Manufacturer Part Number | 98-088 |
|---|
| Product Type | Monitor mounting and lift mechanism |
|---|
| Supported Equipment | Compatible monitors and display systems |
|---|
| Supported Screen Size | Up to 27 inches |
|---|
| Minimum Display Weight | 14 lb (6.4 kg) |
|---|
| Maximum Display Weight | 24 lb (10.9 kg) |
|---|
| Height Adjustment | Approximately 5 inches (12.7 cm) |
|---|
| Tilt | Up to 25° |
|---|
| Pan | Up to 24° |
|---|
| Rotation | 90° |
|---|
| Colour | White |
|---|
| Warranty | Confirm warranty coverage for the specific product and sales region |
|---|
Applications and Compatibility
The Ergotron 98-088 is intended for compatible StyleView medical-cart and monitor-mount configurations. It is suitable for environments where supported displays need adjustable positioning, including clinical workstations and professional healthcare settings.
Before ordering, verify the display's weight, screen size, mounting interface, and compatibility with the intended cart or mounting system. The display must fall within the specified weight range. Compatibility with a particular cart or mount should be confirmed using the manufacturer's documentation.
Installation and Use
Install the kit according to the manufacturer's instructions and ensure that the display and mounting system are compatible. Check that all mounting hardware is secured before adjusting the monitor. Organize cables through the intended cable-management path and confirm that they remain clear of moving components during adjustment.
DC Supplies Product Note
DC Supplies recommends confirming the exact mounting configuration and display specifications before purchasing the Ergotron 98-088. This is a specialized monitor mounting component, and compatibility should be checked against the model numbers of the existing cart, mount, and display.
Frequently Asked Questions
1. What is the Ergotron 98-088?
It is the Ergotron StyleView SV HD Monitor Kit with Pivot, a monitor mounting and lift mechanism for compatible mounting systems.
2. What is the supported monitor weight?
The specified display weight range is 14–24 lb (6.4–10.9 kg). The display must remain within this range for the intended configuration.
3. What screen size does it support?
The kit is listed for compatible displays up to 27 inches. Screen size alone does not establish compatibility; weight and mounting interface must also be checked.
4. Can the monitor position be adjusted?
Yes. The pivot mechanism supports height adjustment, tilt, pan, and rotation within its specified movement range.
5. Does it include cable management?
Yes. The design includes cable-management provisions to help organize display cables behind the monitor.
6. Will it fit every Ergotron cart?
No. Compatibility depends on the cart or mounting system and the display configuration. Verify the relevant model numbers before ordering.
