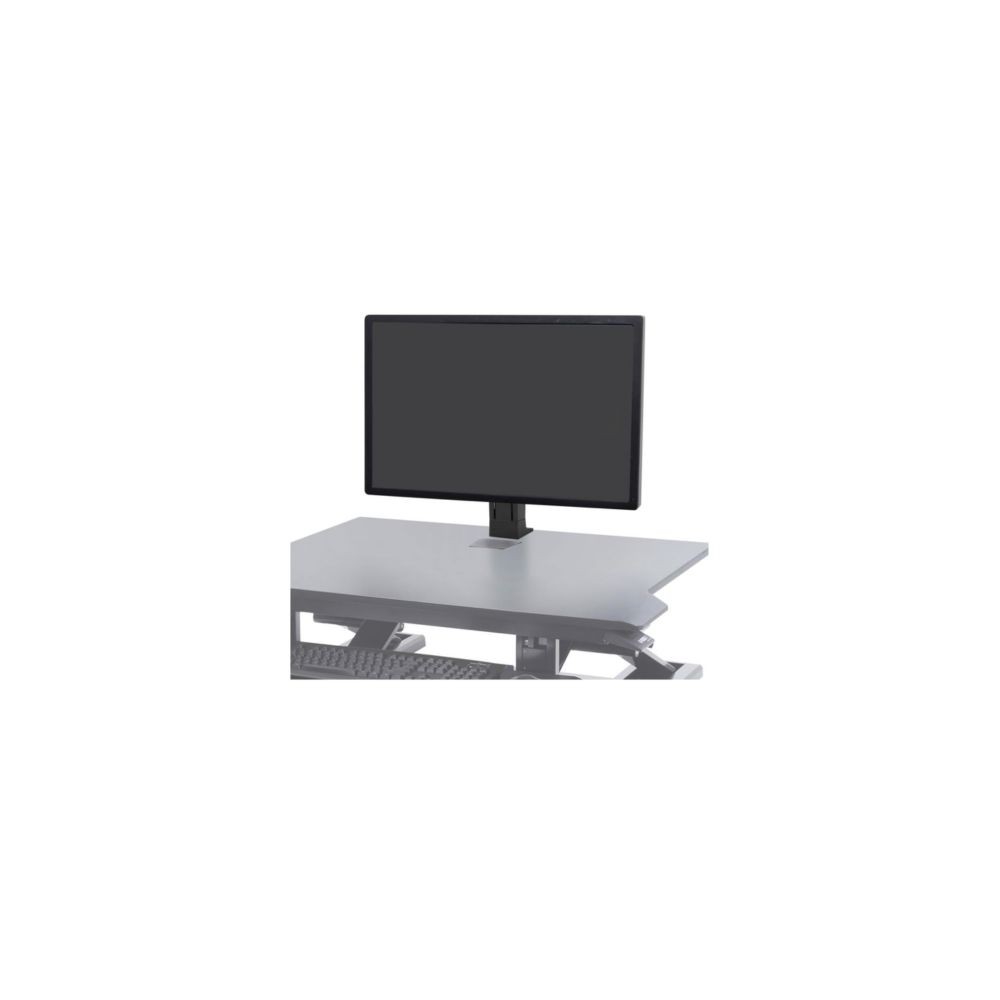

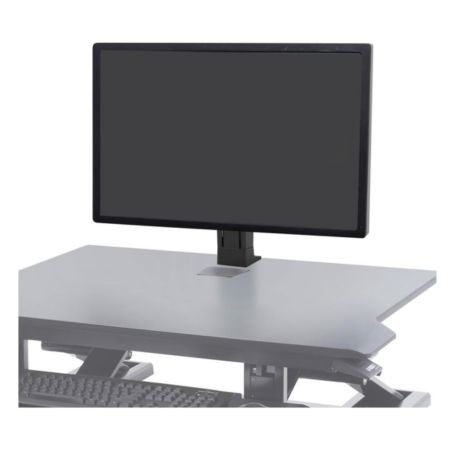

The Ergotron 97-936-085 WorkFit Single HDMonitor Kit is designed to mount a heavier LCD monitor above the worksurface of a compatible Ergotron WorkFit workstation. Its height-adjustable lift mechanism and flexible screen positioning help create a more comfortable viewing arrangement while freeing up valuable desk space.
Key Features
- Heavy-duty monitor support: Supports one compatible display weighing between 16 and 28 lb (7.3–12.7 kg).
- Height adjustment: Provides 5 inches (127 mm) of vertical adjustment to help position the display at a comfortable viewing height.
- Adjustable viewing angle: Offers up to 30 degrees of tilt and 90 degrees of screen rotation.
- Broad display compatibility: Supports compatible monitors up to 30 inches with suitable mounting patterns.
- Integrated cable management: Includes a cable-management tube and ties to help keep monitor cables organized.
Product Specifications
| Brand | Ergotron |
|---|
| Part Number / MPN | 97-936-085 |
|---|
| Product Type | Single HD Monitor Kit |
|---|
| Product Series | WorkFit |
|---|
| Color | Black |
|---|
| Number of Displays Supported | 1 |
|---|
| Recommended Maximum Display Size | 30 inches |
|---|
| Supported Display Weight | 16–28 lb (7.3–12.7 kg) |
|---|
| Height Adjustment | 5 inches (127 mm) |
|---|
| Maximum Tilt | 30 degrees |
|---|
| Maximum Rotation | 90 degrees |
|---|
| VESA Mounting Patterns | 75 × 75 mm and 100 × 100 mm; verify compatibility with the specific display and mounting interface |
|---|
| Mounting Location | Compatible Ergotron WorkFit workstation |
|---|
| Included Components | 5-inch lift engine, one HD monitor pivot, cable-management tube, cable ties, and attachment hardware |
|---|
| Warranty | 5 years, according to published product specifications |
|---|
| EAN | 0698833071108 |
|---|
Ergonomic Display Positioning
The WorkFit Single HD Monitor Kit uses Ergotron Constant Force technology to support smooth monitor adjustment. The lift mechanism allows the display to be raised or lowered within its adjustment range, while tilt and rotation help accommodate different viewing preferences.
Mounting the display above the worksurface can also create additional room for documents and other everyday work materials. The integrated cable-management components help maintain a more organized workstation.
Compatibility and Installation
This kit is intended for compatible Ergotron WorkFit workstation models. Before ordering, check the workstation model, display weight, screen dimensions, and mounting-hole pattern. The monitor must fall within the specified 16–28 lb weight range, and the maximum supported screen size is 30 inches.
DC Supplies Product Note
Confirm monitor weight and VESA compatibility before purchase. The kit is designed for heavier displays, so monitors below the minimum supported weight may not balance correctly. The compatible WorkFit workstation and monitor are sold separately unless explicitly stated in the order.
Frequently Asked Questions
1. What is the Ergotron 97-936-085 used for?
It adds an adjustable single-monitor mount to a compatible Ergotron WorkFit workstation for heavier LCD displays.
2. What monitor weight does it support?
The supported display weight range is 16–28 lb (7.3–12.7 kg).
3. What is the maximum supported monitor size?
The kit is specified for displays up to 30 inches, subject to weight, dimensions, and mounting compatibility.
4. How much adjustment does the kit provide?
It provides 5 inches of height adjustment, up to 30 degrees of tilt, and up to 90 degrees of rotation.
5. Is the WorkFit workstation included?
No. This product is the monitor kit accessory. The compatible workstation and monitor are not included unless explicitly stated.
6. Does it include cable-management components?
Yes. The listed components include a cable-management tube and cable ties.
