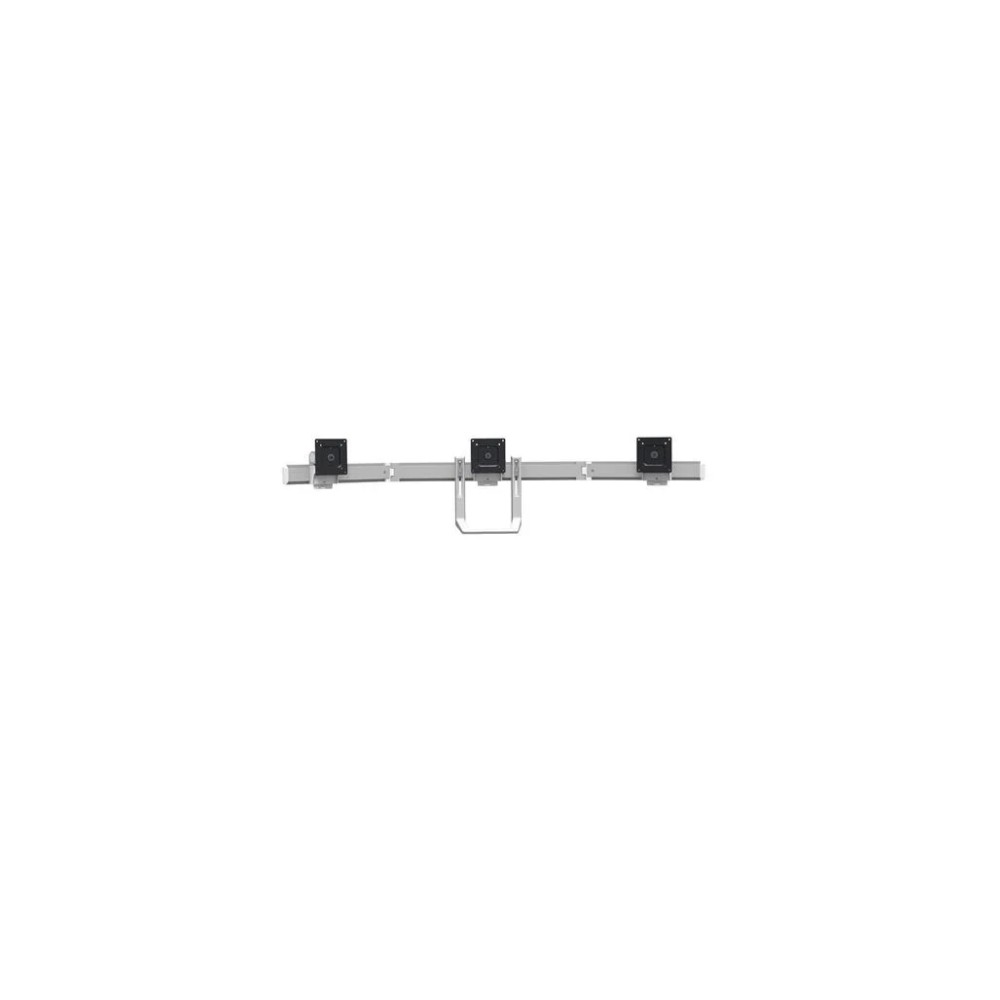

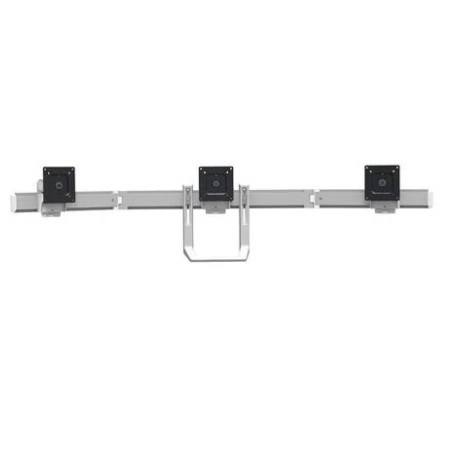

Ergotron 98-009-026 – HX Triple Monitor Bow Kit, Polished Aluminum
Overview
The Ergotron 98-009-026 HX Triple Monitor Bow Kit upgrades a compatible HX single- or dual-monitor arm to support three displays. The polished aluminum kit includes three monitor pivots, a triple hinged bow and a positioning handle. It is an accessory only and requires a compatible HX monitor arm, which is ordered separately.
Technical Information
The hinged bow allows the three monitors to be positioned across a wider viewing area, with the outer displays able to pivot inward or outward. The monitor pivots provide quick installation and release, portrait-to-landscape rotation, pan and tilt adjustment. Integrated cable-management guides route cables beneath the arm, through the extension and across the bow.
Compatibility
The 98-009-026 is designed for HX arms with a polished aluminum finish. Compatible single-monitor arms include 45-475-026 and 45-478-026, while compatible dual-monitor arms include 45-476-026 and 45-479-026. The corresponding white HX Triple Monitor Bow Kit is MPN 98-009-216.
Key Features
- Converts a compatible HX arm to a three-monitor configuration
- Includes three independent monitor pivots and a triple hinged bow
- Supports VESA MIS-D 75 × 75 mm and 100 × 100 mm mounting patterns
- Provides 70° backward and 5° forward tilt, 180° pan and 360° rotation
- Includes a positioning handle and integrated cable-management guides
Applications
The HX Triple Monitor Bow Kit is suitable for professional workstations, engineering and design environments, monitoring stations, control rooms, trading workstations and other multi-display deployments where three monitors are required from a compatible HX arm platform.
DC Supplies Product Note
This listing applies specifically to Ergotron MPN 98-009-026, the polished aluminum HX Triple Monitor Bow Kit. It is not a complete monitor arm and does not include the supporting HX arm. The white equivalent is 98-009-216. The compatible HX arms must be ordered separately.
Specifications
| Brand | Ergotron |
|---|
| Manufacturer Part Number | 98-009-026 |
|---|
| Product Type | Triple Monitor Bow Kit |
|---|
| Product Series | HX |
|---|
| Finish | Polished Aluminum |
|---|
| Displays Supported | 3 |
|---|
| Maximum Display Size | Up to 24 inches |
|---|
| Capacity per Monitor | 2–10.2 lb (0.9–4.6 kg) |
|---|
| Total Display Capacity | 6–30.6 lb (2.7–13.9 kg) |
|---|
| Vertical Height Adjustment | 11.5 in (29.2 cm) |
|---|
| Maximum Extension | 24.5 in (62.2 cm) |
|---|
| Hinge Bow Movement | 40° inward / 90° outward |
|---|
| Tilt | 70° backward / 5° forward |
|---|
| Pan | 180° |
|---|
| Rotation | 360° |
|---|
| VESA Mounting | MIS-D 75 × 75 mm / 100 × 100 mm |
|---|
| Mounting Standard | VESA FDMI MIS-D |
|---|
| Included Components | 3 monitor pivots, triple hinged bow, handle, monitor mounting hardware |
|---|
| Product Weight | 6.2 kg (13.7 lb) |
|---|
| Shipping Dimensions | 28.3 × 18.5 × 7.5 in (72 × 47 × 19 cm) |
|---|
| Shipping Weight | 19.1 lb (8.7 kg) |
|---|
| Warranty | 10 years |
|---|
The core capacity, movement, mounting and compatibility specifications are supported by Ergotron documentation and cross-checked against established distributor data. The 13.7 lb product weight is from B&H's exact-MPN specification data, while Ergotron's product documentation confirms the 19.1 lb shipping weight and 28.3 × 18.5 × 7.5 inch shipping dimensions.
FAQs
What is Ergotron 98-009-026?
It is the polished aluminum HX Triple Monitor Bow Kit, an accessory that upgrades a compatible Ergotron HX single- or dual-monitor arm to a three-monitor configuration.
How many monitors can the 98-009-026 support?
The bow kit supports three monitors when installed on a compatible HX arm. Each display can weigh 2–10.2 lb, with a combined display capacity of 6–30.6 lb.
What monitor size is supported?
Ergotron's current HX product comparison specifies displays up to 24 inches for the HX Triple configuration. This 24-inch value is used for the listing rather than older distributor entries that show different limits.
Which HX arms are compatible with 98-009-026?
The polished aluminum bow kit is specified for HX arms 45-475-026, 45-478-026, 45-476-026 and 45-479-026.
Does the kit include the HX monitor arm?
No. The HX arm must be purchased separately. The kit includes the triple hinged bow, three monitor pivots, positioning handle and monitor mounting hardware.
What VESA patterns are supported?
The monitor pivots support VESA MIS-D 75 × 75 mm and 100 × 100 mm mounting patterns.
What is the difference between 98-009-026 and 98-009-216?
Both are HX Triple Monitor Bow Kits. MPN 98-009-026 is the polished aluminum version for compatible polished aluminum HX arms, while 98-009-216 is the white version for compatible white or silver HX arms.
Can the monitors be positioned independently?
Yes. The hinged bow allows the outer monitors to pivot inward or outward, while the individual monitor pivots provide independent pan, tilt and portrait/landscape positioning.
What warranty is provided?
The 98-009-026 HX Triple Monitor Bow Kit carries a 10-year warranty.
