Overview

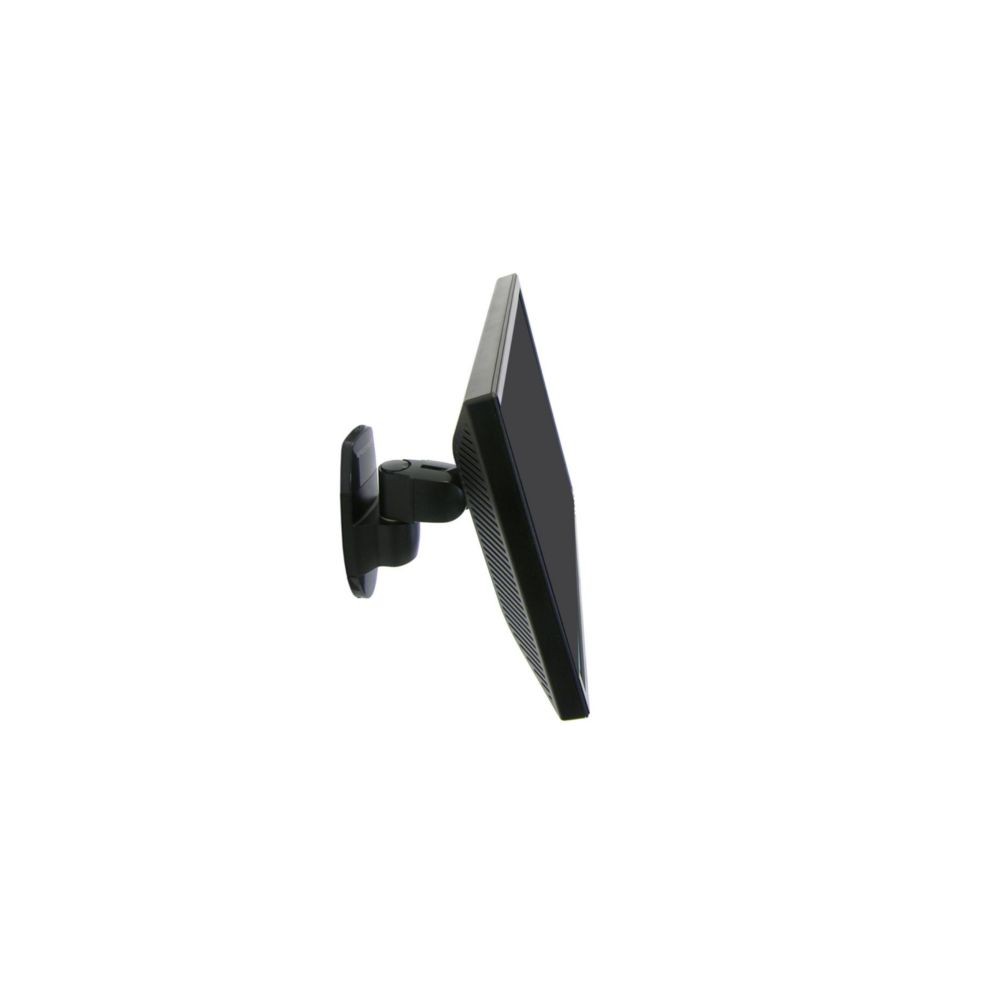

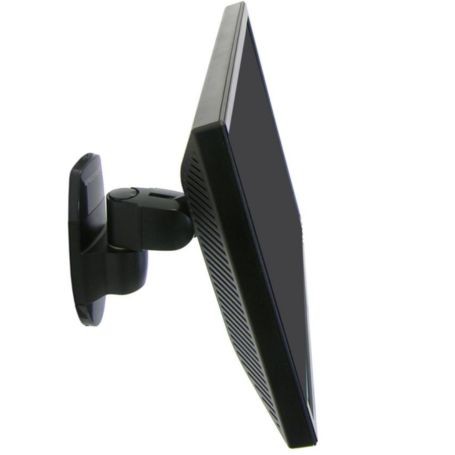

The Ergotron 45-232-200 200 Series Wall Mount Pivot is a compact wall-mounted monitor pivot designed for positioning a single VESA-compatible display. Its low-profile design places the display approximately 6 inches from the wall while providing adjustable tilt, pan, and display orientation.
Display Support
The 45-232-200 supports displays up to 24 inches with a maximum load capacity of 25 lb (11.3 kg). Display size is an approximation; actual compatibility should be determined by the display's weight and VESA mounting pattern. Displays deeper than approximately 3 inches may reduce the rated capacity.
Adjustment and Positioning
The wall pivot provides up to 180° of tilt and 180° of pan. The display can also be turned for landscape or portrait viewing. A friction-based adjustment system helps maintain display positioning, including when used with touch-enabled screens.
Wall Mounting
The mount attaches to sturdy vertical surfaces and can be used where appropriate with wood-stud construction. It is also suitable for pole mounting when the appropriate pole clamp is purchased separately. The low-profile configuration keeps the display relatively close to the wall when compared with articulated arm systems.
VESA Compatibility
The 45-232-200 uses the VESA FDMI MIS-D standard with 75 x 75 mm and 100 x 100 mm mounting patterns. This provides compatibility with displays using either supported mounting-hole configuration.
Key Features
- Supports a single display up to 24 inches and 25 lb (11.3 kg)
- Provides 180° tilt and 180° pan adjustment
- Supports landscape and portrait display positioning
- Low-profile design places the display approximately 6 inches from the wall
- VESA MIS-D mounting with 75 x 75 mm and 100 x 100 mm patterns
Applications
The 45-232-200 is suited to wall-mounted monitor installations where a compact mounting point with broad viewing-angle adjustment is required. Its wall-mount configuration can also be used in applications where a display needs to be repositioned between landscape and portrait orientation.
DC Supplies Product Note
For installation planning, confirm the display's weight, depth, and VESA pattern before ordering. The mount's stated 25 lb capacity can be affected by deeper displays, so display dimensions should be checked alongside the weight rating.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-232-200 |
| Product Type | 200 Series Wall Mount Pivot |
| Color | Black |
| Display Configuration | Single monitor |
| Maximum Display Size | 24 inches |
| Maximum Load Capacity | 25 lb (11.3 kg) |
| Lift | None |
| Tilt | 180° |
| Pan | 180° |
| Rotation / Orientation | Landscape and portrait |
| VESA Standard | VESA FDMI MIS-D |
| VESA Patterns | 75 x 75 mm and 100 x 100 mm |
| Mounting Type | Wall mount |
| Mounting Surface | Sturdy vertical surfaces |
| Approximate Wall Clearance | 6 inches (15 cm) |
| Construction | Aluminum, high-grade plastic, and powder-coated painted steel |
| Product Weight | Approx. 1.7 kg |
| Shipping Weight | 4.6 lb (2.1 kg) |
| Shipping Dimensions | 5 x 9 x 7 inches (127 x 229 x 178 mm) |
| Warranty | 5 years |
| UPC / GTIN | 698833010596 |
Package Contents
- 200 Wall Mount Pivot
- Wall mount bracket
- VESA monitor mounting screws
FAQs
What size monitor does the Ergotron 45-232-200 support?
The 45-232-200 is specified for displays up to 24 inches, with compatibility ultimately determined by display weight and VESA mounting pattern.
What is the weight capacity?
The maximum rated load is 25 lb (11.3 kg). Display depth can affect the effective capacity.
Which VESA patterns are supported?
It supports 75 x 75 mm and 100 x 100 mm VESA mounting patterns.
Can the display be used in portrait orientation?
Yes. The pivot allows the display to be turned between landscape and portrait viewing positions.
Can the 45-232-200 be pole mounted?
The pivot is suitable for pole mounting, but the required pole clamp is sold separately.
What is included with the mount?
The package includes the 200 Wall Mount Pivot, wall mount bracket, and VESA monitor mounting screws.
