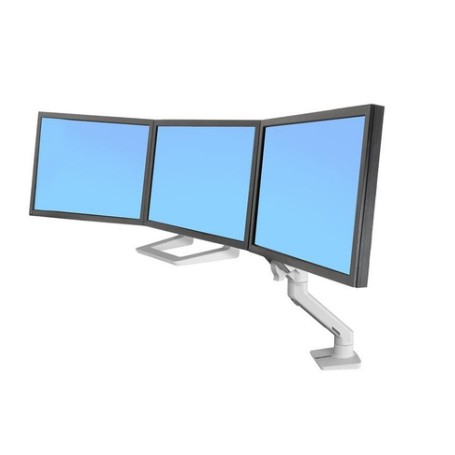

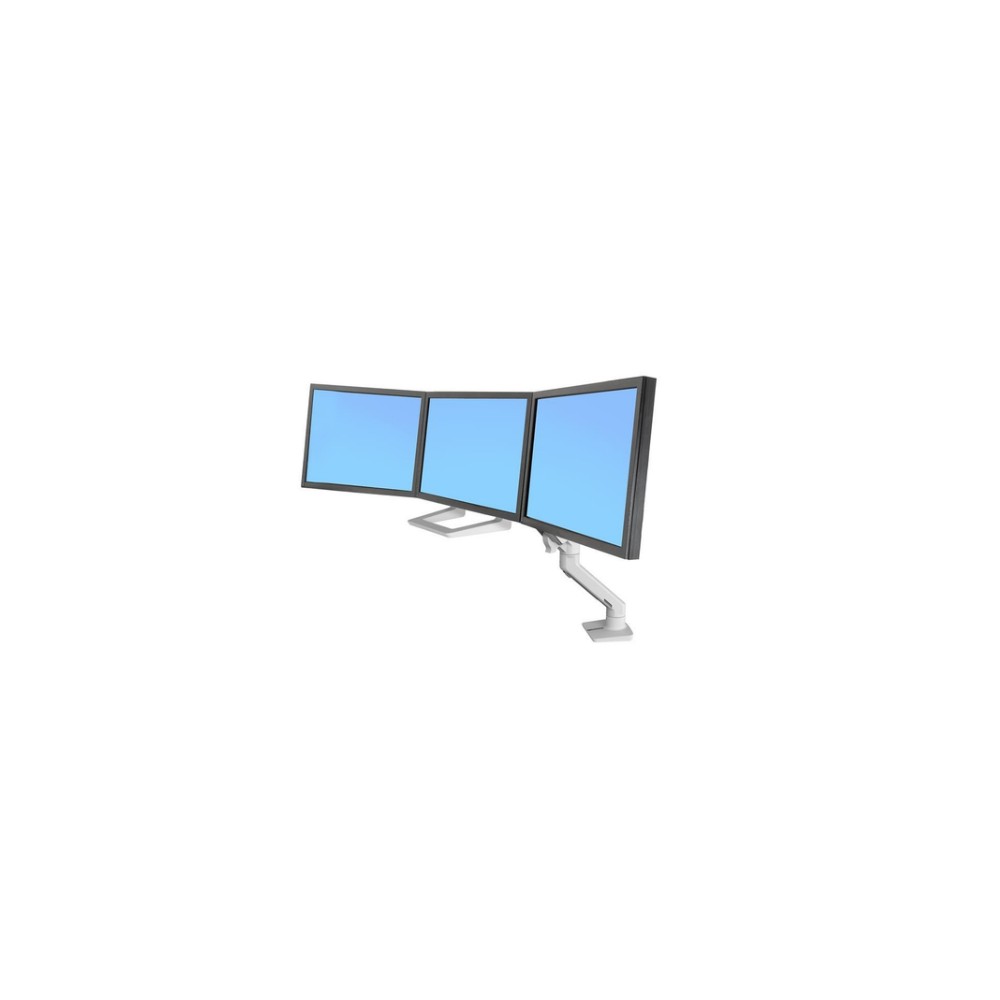

Ergotron 98-009-216 – HX Triple Monitor Bow Kit, White
Overview
The Ergotron 98-009-216 HX Triple Monitor Bow Kit upgrades a compatible HX single- or dual-monitor arm to support three displays. The white kit includes three monitor pivots, a triple hinged bow and a positioning handle. It is an accessory only and requires a compatible HX monitor arm, ordered separately.
Technical Information
The hinged bow allows the three displays to be positioned independently, including outward panning for screen sharing and inward positioning for a more ergonomic viewing arrangement. The monitor pivots provide quick installation and release, portrait/landscape rotation, pan and tilt adjustment. Integrated cable-management guides route cables beneath the arm, through the extension and across the bow.
Compatibility
The 98-009-216 is intended for compatible white or silver HX arm configurations. Supported single-arm configurations include 45-475-216, 45-475-231, 45-478-216 and 45-478-231. Supported dual-arm configurations include 45-476-216, 45-476-231, 45-479-216 and 45-479-231. The polished-aluminum 98-009-026 is the corresponding bow-kit variant for compatible polished-aluminum HX arms.
Key Features
- Converts a compatible HX arm to a three-monitor configuration
- Includes three independent monitor pivots and a triple hinged bow
- Supports VESA MIS-D 75 × 75 mm and 100 × 100 mm mounting patterns
- Provides independent monitor positioning with pan, tilt and 360° rotation
- Integrated cable-management guides and positioning handle included
Applications
The HX Triple Monitor Bow Kit is suitable for professional workstations, engineering and design environments, monitoring stations, control rooms and other multi-display deployments where three monitors are required from a single HX arm platform.
DC Supplies Product Note
This listing applies specifically to Ergotron MPN 98-009-216, the white HX Triple Monitor Bow Kit. It is not a complete monitor arm and does not include the supporting HX arm. For polished-aluminum HX arm configurations, Ergotron specifies the separate 98-009-026 variant.
Specifications
| Brand | Ergotron |
|---|
| Manufacturer Part Number | 98-009-216 |
|---|
| Product Type | Triple Monitor Bow Kit |
|---|
| Product Series | HX |
|---|
| Finish | White |
|---|
| Displays Supported | 3 |
|---|
| Maximum Display Size | Up to 24 inches |
|---|
| Individual Display Capacity | 2–10.2 lb (0.9–4.6 kg) |
|---|
| Total Display Capacity | 6–30.6 lb (2.7–13.9 kg) |
|---|
| Vertical Height Adjustment | 11.5 in (29.2 cm) |
|---|
| Extended Reach | Up to 24.5 in (60 cm) |
|---|
| Hinge Bow Movement | 40° inward / 90° outward |
|---|
| Tilt | 70° backward / 5° forward |
|---|
| Pan | 180° |
|---|
| Rotation | 360° |
|---|
| VESA Mounting | MIS-D 75 × 75 mm / 100 × 100 mm |
|---|
| Included Components | 3 monitor pivots, triple hinged bow, handle |
|---|
| Product Weight | 6.3 kg (13.9 lb) |
|---|
| Shipping Dimensions | 28.3 × 18.5 × 7.5 in (72 × 47 × 19 cm) |
|---|
| Shipping Weight | 8.1–8.7 kg (17.9–19.2 lb) |
|---|
| Warranty | 10 years |
|---|
The display capacity, movement, VESA compatibility and included components are supported by exact-MPN distributor documentation cross-checked against Ergotron product literature. The shipping-weight range reflects conflicting distributor packaging data, so it should be treated as approximate rather than a primary product specification.
FAQs
What is Ergotron 98-009-216?
It is the white HX Triple Monitor Bow Kit, an accessory that upgrades a compatible Ergotron HX single- or dual-monitor arm to a three-monitor configuration.
How many monitors can the 98-009-216 support?
The bow kit supports three monitors when installed on a compatible HX arm. Each display can be within the specified 2–10.2 lb range, with a total display capacity of 6–30.6 lb.
What monitor size is supported?
Ergotron documentation specifies displays up to 24 inches for this triple-monitor configuration. Some older distributor databases contain conflicting larger size figures, so the conservative 24-inch manufacturer-aligned value is used here.
Which HX arms are compatible with 98-009-216?
The kit is designed for selected white or silver HX single- and dual-monitor arms, including 45-475-216, 45-478-216, 45-476-216 and 45-479-216, along with their listed compatible variants.
Does the kit include the HX monitor arm?
No. The HX monitor arm must be purchased separately. The kit includes the three monitor pivots, triple hinged bow and handle.
What VESA patterns are supported?
The monitor pivots support VESA MIS-D 75 × 75 mm and 100 × 100 mm mounting patterns.
What is the difference between 98-009-216 and 98-009-026?
Both are HX Triple Monitor Bow Kits. MPN 98-009-216 is the white variant intended for compatible white or silver HX arms, while 98-009-026 is the polished-aluminum variant intended for compatible polished-aluminum HX arms.
What warranty is provided?
The HX Triple Monitor Bow Kit is specified with a 10-year warranty.
