Ergotron 98-029 – SV HD Monitor Kit, White
Overview
The Ergotron 98-029 SV HD Monitor Kit upgrades a compatible StyleView LCD cart with independent height adjustment for a heavy monitor or all-in-one computer. The kit is designed for StyleView SV42 and SV44-series powered carts that already have a 5-inch lift pivot. It reuses the cart's existing gravity-tilt pivot rather than supplying a replacement pivot.
Technical Information
The 98-029 provides 5 inches (12.7 cm) of independent vertical adjustment and supports displays from 14 to 24 lb (6.4 to 10.9 kg), with a maximum supported screen size of 27 inches. The monitor interface provides up to 25° of tilt, 24° of pan and 90° of rotation, with VESA MIS-D compatibility.
Compatibility
The 98-029 is recommended for StyleView SV42 and SV44 powered carts equipped with the required 5-inch lift pivot. It is compatible only with LCD cart configurations using the lift pivot. If the existing cart uses an LCD arm and requires a new gravity-tilt pivot, Ergotron specifies the separate 98-088 SV HD Monitor Kit with Pivot instead.
Key Features
- Adds 5 inches (12.7 cm) of independent monitor height adjustment.
- Supports displays from 14 to 24 lb (6.4 to 10.9 kg).
- Accommodates monitors or all-in-one computers up to 27 inches.
- Provides 25° tilt, 24° pan and 90° rotation adjustment.
- Reuses the existing gravity-tilt pivot on compatible StyleView carts.
Applications
The 98-029 is intended for healthcare and medical workstation applications where a StyleView powered cart requires independent positioning for a heavier monitor or all-in-one computer. The HD lift mechanism provides additional vertical adjustment while maintaining monitor tilt, pan and rotation functionality.
DC Supplies Product Note

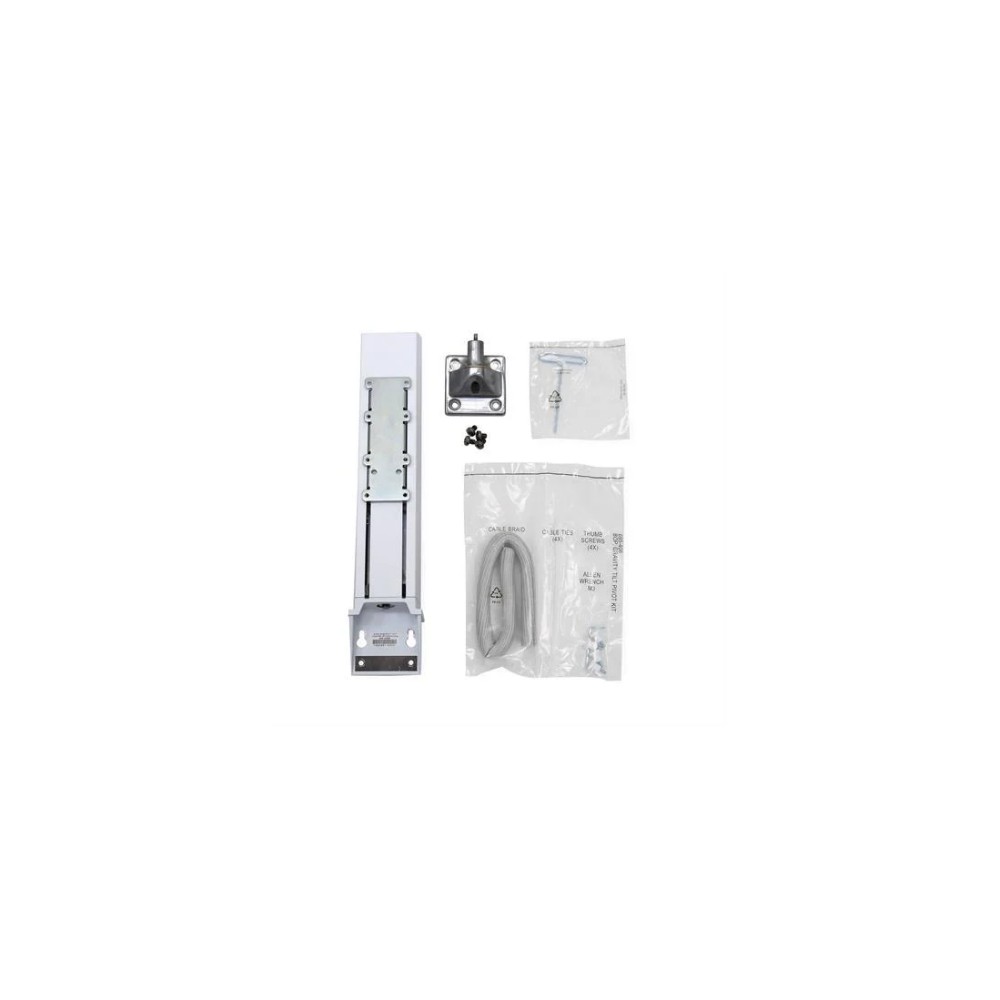

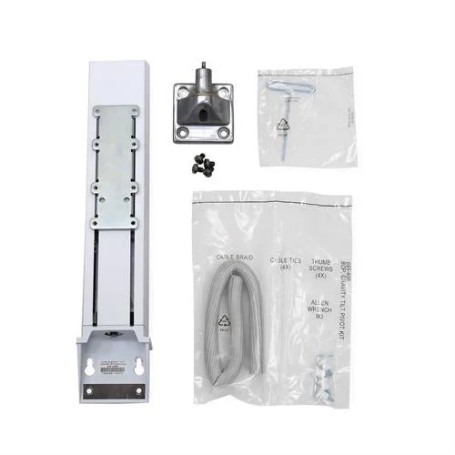

This listing is for the exact Ergotron 98-029 SV HD Monitor Kit in White. The kit includes the HD lift engine, cable-management components and attachment hardware. The compatible StyleView cart and display are not included. The existing cart must have the appropriate 5-inch lift pivot; 98-029 should not be confused with 98-088, which includes the pivot.
Specifications
| Brand | Ergotron |
|---|
| Manufacturer Part Number | 98-029 |
|---|
| Product Type | HD Monitor Kit / Lift Mechanism |
|---|
| Product Name | SV HD Monitor Kit |
|---|
| Product Family | StyleView |
|---|
| Color | White |
|---|
| Supported Display Size | Up to 27 in |
|---|
| Load Capacity | 14–24 lb (6.4–10.9 kg) |
|---|
| Height Adjustment | 5 in (12.7 cm) |
|---|
| Tilt | 25° |
|---|
| Pan | 24° |
|---|
| Rotation | 90° |
|---|
| VESA Compatibility | MIS-D |
|---|
| Mounting | Cart mountable |
|---|
| Compatible Cart Series | StyleView SV42 and SV44 powered carts |
|---|
| Required Existing Pivot | 5-inch lift pivot / gravity-tilt pivot |
|---|
| Included | HD lift engine, cable management and attachment hardware |
|---|
| Product Weight | 2.7 kg |
|---|
| Shipping Dimensions | 23 × 6.5 × 6.5 in (56 × 15.5 × 15.5 cm) |
|---|
| Shipping Weight | 8 lb (3.7 kg) |
|---|
| Warranty | 5 years |
|---|
The core specifications are cross-checked against Ergotron's current product information and supporting distributor documentation.
FAQs
What is the Ergotron 98-029?
The 98-029 is the Ergotron SV HD Monitor Kit, a lift mechanism that adds independent height adjustment to compatible StyleView powered carts.
What displays does the 98-029 support?
The kit supports displays up to 27 inches with a published load range of 14–24 lb (6.4–10.9 kg).
How much height adjustment does it provide?
The HD lift mechanism provides 5 inches (12.7 cm) of vertical adjustment.
What monitor movement is supported?
The published adjustment range includes 25° of tilt, 24° of pan and 90° of rotation.
Which StyleView carts are compatible?
The 98-029 is recommended for compatible SV42 and SV44 powered StyleView carts that have the required 5-inch lift pivot.
Does the 98-029 include a pivot?
No. The 98-029 is designed to reuse the gravity-tilt pivot already installed on the compatible cart. Ergotron specifies the 98-088 when a new pivot is required.
What is included with the kit?
The package includes the HD lift engine, cable-management components and attachment hardware.
What warranty does Ergotron provide?
The 98-029 carries a five-year warranty.
