Ergotron 98-130-216 – LX Arm, Extension and Collar Kit, White
Overview
The Ergotron 98-130-216 LX Arm, Extension and Collar Kit adds an additional LX monitor arm to compatible LX desk-mounted configurations. The kit is designed for multi-monitor setups and attaches to the pole of the desk mount base, allowing an existing LX configuration to support additional displays or a laptop. Ergotron specifically positions the kit for use with the LX Arm, Tall Pole.
Technical Information
The 98-130-216 provides 13 inches (33 cm) of height adjustment, 75° tilt, 360° pan, and 360° display rotation. It supports displays weighing 7–25 lb (3.2–11.3 kg) and uses VESA MIS-D mounting with 75 × 75 mm and 100 × 100 mm hole patterns. The Constant Force lift-and-pivot mechanism has been tested for 10,000 cycles.
Compatibility
The kit is intended for compatible LX monitor-arm and tall-pole configurations. It can be used to create two-, three-, or four-monitor configurations when combined with the appropriate LX monitor-arm products. Ergotron documentation identifies the 98-130-216 as the white LX Arm, Extension and Collar Kit used with the LX Dual Stacking Arm, Tall Pole.
Key Features
- Adds an additional LX monitor arm to compatible multi-monitor configurations
- Supports displays from 7–25 lb (3.2–11.3 kg)
- Provides 13 inches (33 cm) of height adjustment
- Supports 75 × 75 mm and 100 × 100 mm VESA mounting patterns
- White finish with integrated cable management and Constant Force technology
Applications
The LX Arm, Extension and Collar Kit is suited to engineering workstations, finance and trading desks, call centers, control-room workstations, and other professional environments requiring additional independently adjustable displays or a laptop within a multi-monitor LX configuration.
DC Supplies Product Note

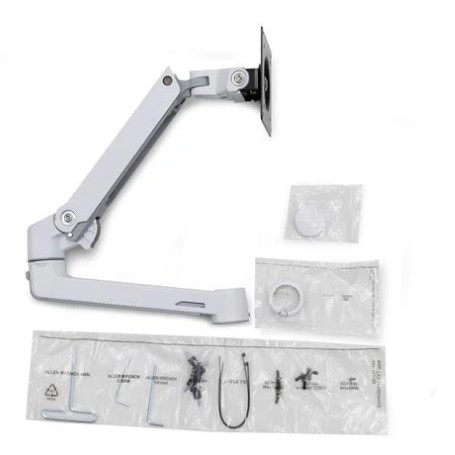

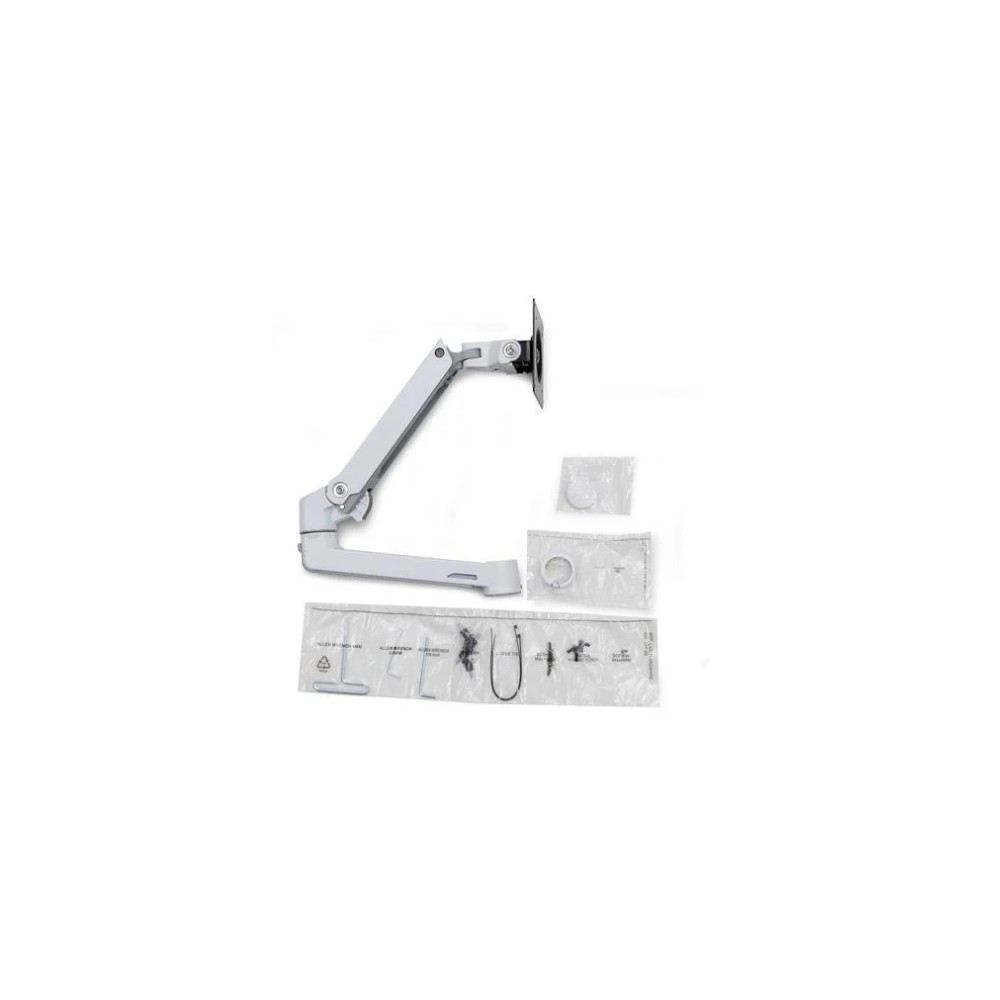

The 98-130-216 is an accessory kit rather than a complete monitor arm system. It includes the LX arm, extension, pole collar, cap, and attachment hardware. The kit is not compatible with LX Sit-Stand Arm systems. For multi-monitor installations, Ergotron notes that the maximum capacity can change depending on the configuration.
Specifications
| Brand | Ergotron |
|---|
| Manufacturer Part Number | 98-130-216 |
|---|
| Product Type | LX Arm, Extension and Collar Kit |
|---|
| Color | White |
|---|
| Display Capacity | 7–25 lb (3.2–11.3 kg) |
|---|
| Height Adjustment | 13 in (33 cm) |
|---|
| Tilt | 75° |
|---|
| Pan | 360° |
|---|
| Rotation | 360° |
|---|
| VESA Mounting | MIS-D, 75 × 75 mm and 100 × 100 mm |
|---|
| Arm Extension | Up to 24 in |
|---|
| Mounting | LX desk-mount pole |
|---|
| Technology | Constant Force™ |
|---|
| Product Weight | 4.5 lb (2.0 kg) |
|---|
| Shipping Weight | 5.8 lb (2.6 kg) |
|---|
| Shipping Dimensions | 17.5 × 7.75 × 6.5 in (44 × 20 × 17 cm) |
|---|
| Included Components | LX arm, extension, pole collar, cap, attachment hardware |
|---|
| Warranty | 10 years |
|---|
FAQs
What is the Ergotron 98-130-216?
The 98-130-216 is the white Ergotron LX Arm, Extension and Collar Kit, an accessory for expanding compatible LX desk-mounted monitor-arm configurations.
What is the weight capacity?
The current Ergotron specification lists a capacity of 7–25 lb (3.2–11.3 kg).
How much height adjustment does it provide?
The arm provides up to 13 inches (33 cm) of height adjustment.
Which VESA patterns are supported?
The 98-130-216 supports VESA MIS-D mounting patterns of 75 × 75 mm and 100 × 100 mm.
Can it be used for multiple monitors?
Yes. Ergotron specifies the kit as an expansion component for multi-monitor LX configurations. One kit can add an additional arm, while compatible tall-pole configurations can use additional kits for expanded monitor setups.
Can the kit hold a laptop?
Yes. Ergotron states that the arm can be configured to hold a laptop when used with the separately ordered 50-193-200 Notebook Tray.
Is the 98-130-216 compatible with LX Sit-Stand Arms?
No. Ergotron specifically states that this kit is not compatible with LX Sit-Stand Arm systems.
What warranty does Ergotron provide?
The published warranty is 10 years.
