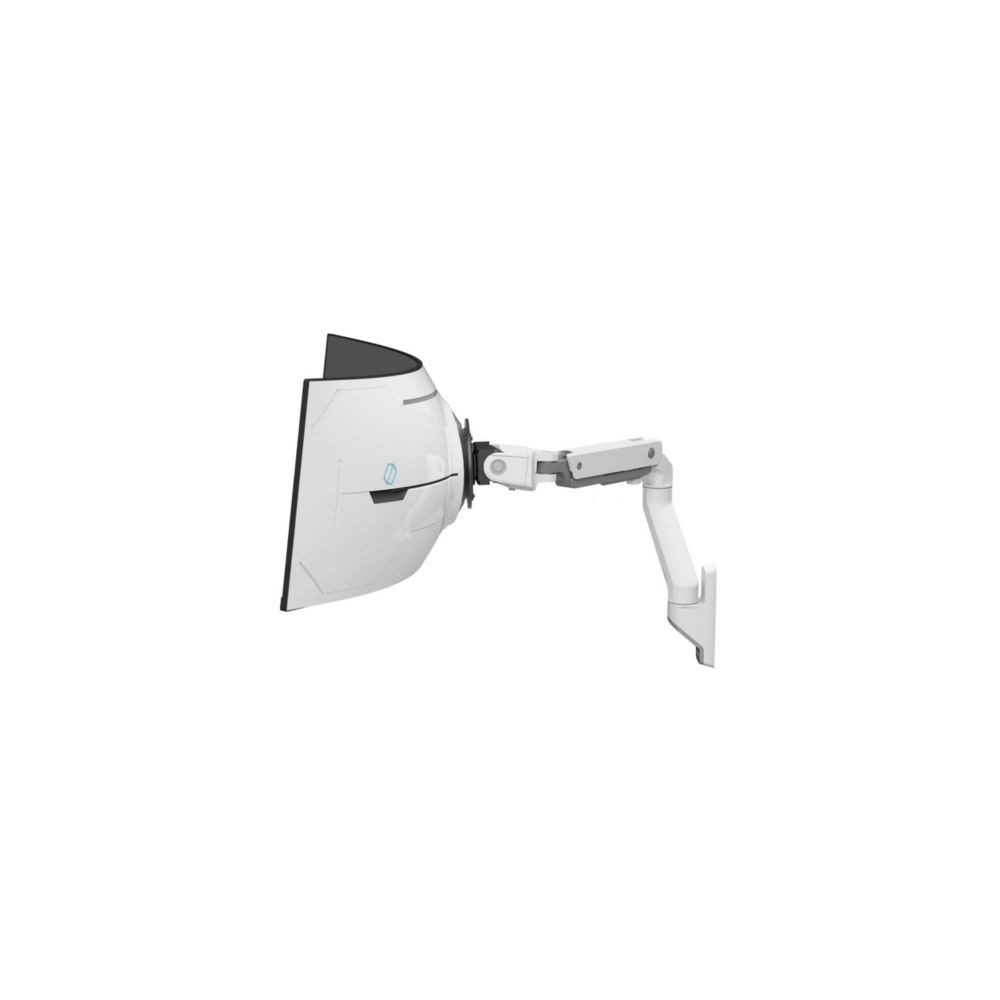

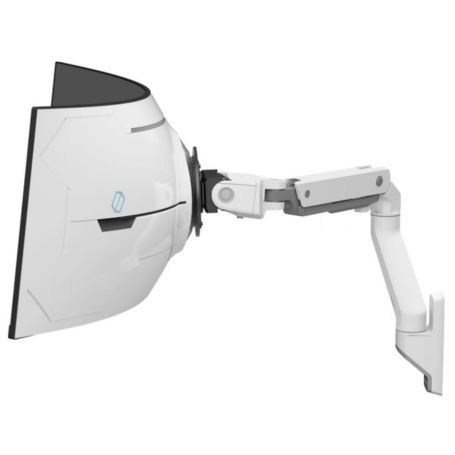

The Ergotron 45-694-216 HX Wall Monitor Arm with VHD Pivot is a white wall-mounted monitor arm designed for large, ultra-wide curved displays with substantial depth and weight. It supports displays up to 57 inches and is rated for compatible 1000R curved screens measuring 9.1–13.8 inches (23.1–35.1 cm) deep and weighing 28.7–37.5 lb (13–17 kg).
Overview
This HX configuration combines Ergotron's HX arm with a Very Heavy-Duty (VHD) tilt pivot for extreme-depth curved displays. The wall-mounted design frees desk space while providing adjustable monitor positioning, including 11.5 inches of vertical lift, 180° monitor pan, 180° base-arm pan, and ±10° monitor rotation.
Extreme-Depth Curved Display Support
The 45-694-216 is specifically configured for ultra-wide 1000R curved displays that exceed the depth and weight range of conventional monitor arms. Ergotron specifies compatibility with displays 9.1–13.8 inches deep and weighing 28.7–37.5 lb, such as the Samsung Odyssey Neo G9 57-inch gaming monitor.
VHD Pivot Adjustment
The Very Heavy-Duty tilt pivot provides +20° / -5° tilt adjustment. The monitor can pan 180° and rotate ±10°, while the base arm provides 180° of pan movement for flexible positioning.
Wall Mounting
The arm includes a wall-mount attachment and mounting hardware. Ergotron specifies the included hardware for solid-wall mounting. For mounting to wood or metal studs, the wall track and track mounting bracket are purchased separately.
Key Features
- Supports ultra-wide displays up to 57 inches.
- Rated for compatible 1000R curved displays weighing 28.7–37.5 lb (13–17 kg).
- Supports extreme-depth displays measuring 9.1–13.8 inches (23.1–35.1 cm) deep.
- Very Heavy-Duty pivot provides +20° / -5° tilt adjustment.
- Provides 11.5 inches of lift and up to 25 inches of arm extension.
VESA Compatibility
The 45-694-216 uses the VESA MIS-D mounting standard. Compatible mounting patterns include 75 x 75 mm and 100 x 100 mm. The monitor's weight, depth, curvature, and mounting pattern should be verified before installation.
Applications
This wall-mounted arm is suited to workstations, gaming environments, and other installations using large ultra-wide curved displays where desk space is limited. Its VHD pivot is intended for heavier and deeper displays within Ergotron's specified range.
DC Supplies Product Note
For a large curved monitor, verify both chassis depth and weight before ordering. The VHD configuration is specifically rated for the 9.1–13.8-inch depth and 13–17 kg weight range specified by Ergotron.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-694-216 |
| Product Type | HX Wall Monitor Arm with VHD Pivot |
| Color | White |
| Typical LCD Size | Up to 57 inches |
| Display Type | Ultra-wide 1000R curved display |
| Display Depth | 9.1–13.8 inches (23.1–35.1 cm) |
| Weight Capacity | 28.7–37.5 lb (13–17 kg) |
| Lift | 11.5 inches (29.2 cm) |
| Tilt | +20° / -5° |
| Monitor Pan | 180° |
| Base Arm Pan | 180° |
| Monitor Rotation | ±10° |
| VESA Standard | MIS-D |
| VESA Mounting Patterns | 75 x 75 mm and 100 x 100 mm |
| Extension | Up to 25 inches (60 cm) |
| Mounting Surface | Wall |
| Product Weight | 6.3 kg |
| Warranty | 10 years |
| GTIN | 00698833091946 |
Package Contents
The package includes the HX arm, Very Heavy-Duty tilt pivot, extension, wall-mount attachment, and mounting hardware.
Frequently Asked Questions
What size monitors does the Ergotron 45-694-216 support?
It supports displays up to 57 inches, subject to the specified weight and depth requirements.
What monitor weight can the 45-694-216 support?
The specified capacity is 28.7–37.5 lb (13–17 kg) for compatible ultra-wide 1000R curved displays.
How deep can the supported monitor be?
Ergotron specifies a display depth range of 9.1–13.8 inches (23.1–35.1 cm) for the supported extreme-depth curved display configuration.
What type of mounting does this model use?
The 45-694-216 is a wall-mounted monitor arm and includes a wall-mount attachment with mounting hardware.
Can it be mounted to wood or metal studs?
Ergotron specifies the included hardware for solid-wall mounting. A wall track and track mounting bracket are required separately for wood or metal stud mounting.
What is included with the 45-694-216?
The package includes the HX arm, VHD tilt pivot, extension, wall-mount attachment, and mounting hardware.
