Overview

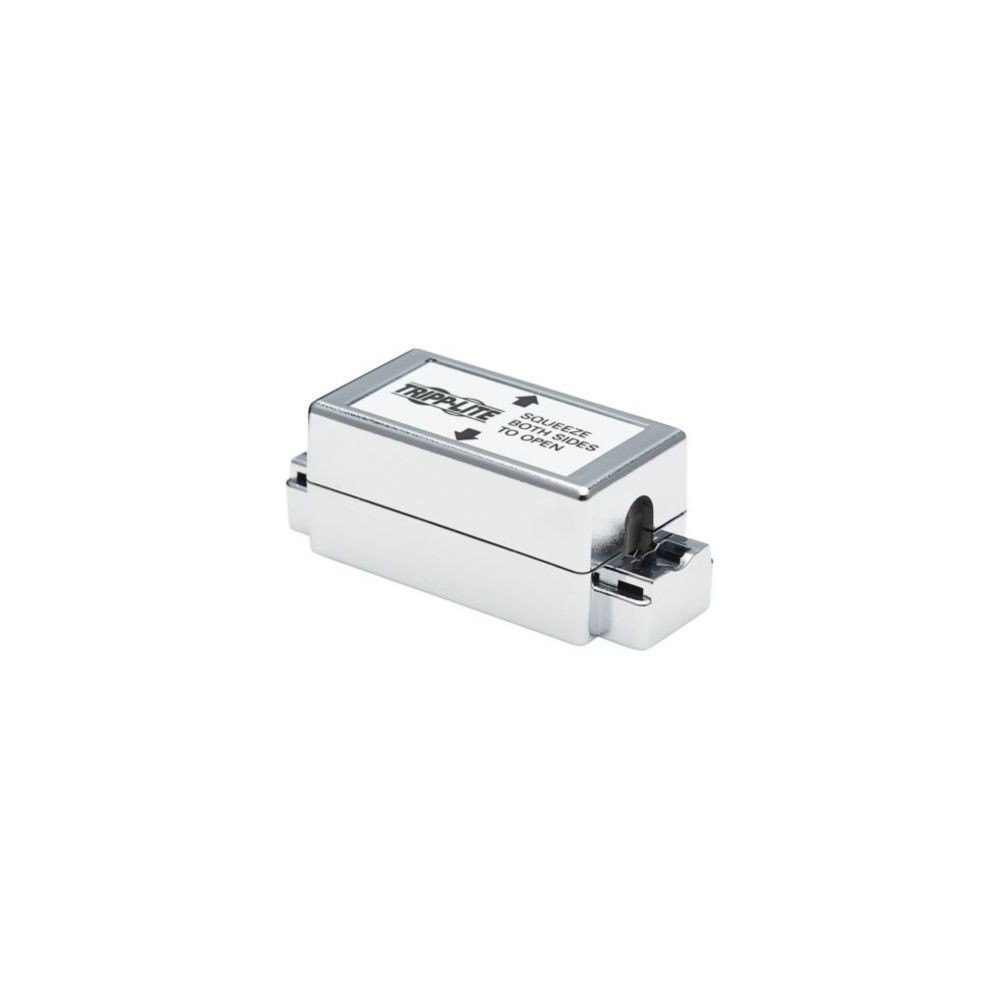

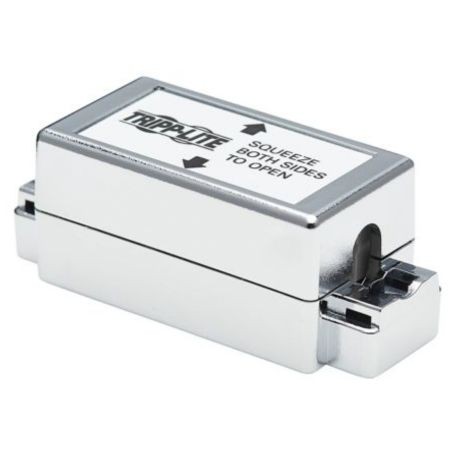

The Eaton Tripp Lite N237-001-SH is a shielded surface-mount junction box for directly terminating and connecting two Cat5e or Cat6 solid-conductor cables. It uses standard 110 punchdown termination and is designed for Ethernet, voice, and audio/video cabling installations.
Technical Information
The junction box uses 110 IDC punchdown connections with color-coded terminals for 568A/B wiring. Its shielded construction helps protect network signals against EMI/RFI line noise, and a dedicated grounding area is provided on the punchdown block. The housing is made from ABS UL 94V-0 plastic.
Compatibility
- Cat5, Cat5e, and Cat6 cabling
- Solid-conductor cable
- Standard 110 punchdown termination
- EIA/TIA 568A and 568B wiring configurations
- Surface-mount Ethernet, voice, and audio/video installations
Key Features
- Shielded construction for EMI/RFI noise protection
- 110 IDC punchdown termination
- Color-coded 568A/B wiring positions
- Dedicated grounding space on the punchdown block
- ABS UL 94V-0 plastic housing
Applications
The N237-001-SH can be used for extending or terminating structured cabling in home, office, networking, voice, and audio/video installations. Its surface-mount design is suitable where a compact junction point is required without installing a recessed wall box.
DC Supplies Product Note
The manufacturer recommends this junction box for solid-conductor cable. Because the model is shielded and includes a dedicated grounding area, the installation should account for the grounding requirements of the shielded cabling system.
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number / MPN | N237-001-SH |
| Product Type | Shielded Surface-Mount Junction Box |
| Application | Cat5e/Cat6 networking, voice, audio/video |
| Cabling Supported | Cat5, Cat5e, Cat6 |
| Termination | 110 IDC punchdown |
| Connectors | 2 x 110 IDC |
| Number of Ports | 0 RJ45 ports |
| Shielding | Yes |
| Wiring Standards | 568A / 568B |
| Recommended Cable | Solid conductor |
| Mounting Type | Surface mount |
| Material | ABS UL 94V-0 plastic |
| Color | Silver |
| Product Dimensions | 4.9 x 4.09 x 0.25 in. |
| TAA Compliant | Yes |
| Environmental Compliance | RoHS |
| UPC | 037332197320 |
| Warranty | Lifetime limited warranty |
Package Contents
N237-001-SH Cat5e/6 Shielded Surface-Mount Junction Box
Mounting hardware
2 nylon cable ties
FAQs
What type of cable does the N237-001-SH support?
It supports Cat5, Cat5e, and Cat6 cabling and is recommended for solid-conductor cable.
How are the cables terminated?
The junction box uses standard 110 IDC punchdown termination with color-coded positions for 568A or 568B wiring.
Is the junction box shielded?
Yes. The N237-001-SH uses shielded construction to help protect against EMI/RFI line noise.
Can it connect two cables?
Yes. The junction box provides two 110 IDC termination sides for directly connecting two compatible Cat5e/6 cables.
Is mounting hardware included?
Yes. The package includes mounting hardware and two nylon cable ties.
