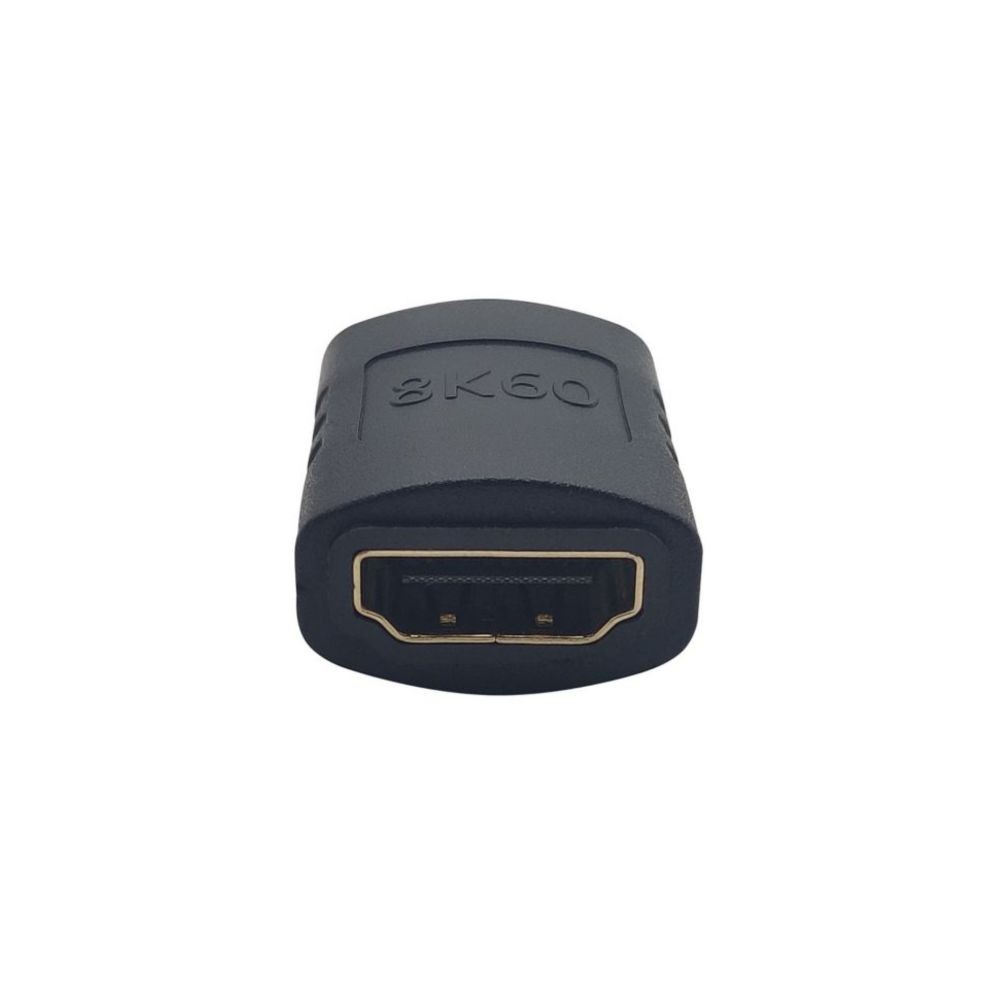

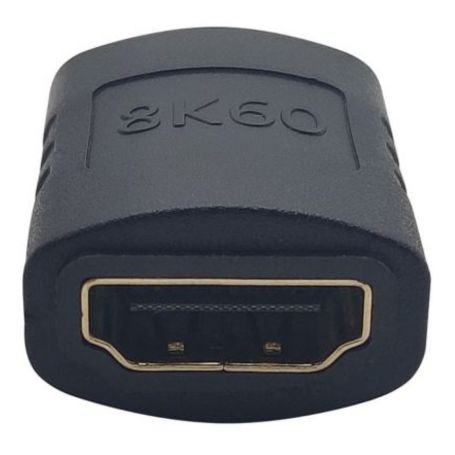

Eaton P164-000-8K6 Tripp Lite HDMI Coupler F F 8K 60Hz Black
The Eaton P164-000-8K6 is an HDMI female-to-female coupler designed to join two HDMI cables and create one longer HDMI connection. It supports high-resolution HDMI applications up to 8K at 60 Hz while remaining backward compatible with earlier HDMI generations.
8K 60Hz HDMI Connectivity
The P164-000-8K6 supports Ultra HD resolutions up to 7680 x 4320 at 60 Hz with 36-bit Deep Color and 4:4:4 chroma. It also supports HDR and HDCP 1.4/2.2 for compatible high-resolution video applications.
Female-to-Female HDMI Coupler
Both ends of the coupler are HDMI female receptacles, allowing two HDMI male-ended cables to be connected together. This provides a straightforward way to extend an existing HDMI cable installation without replacing the original cable with a longer one.
Key Features
- HDMI female-to-female inline coupler
- Supports up to 8K at 60 Hz
- Supports 4:4:4 chroma and 36-bit Deep Color
- HDR and HDCP 1.4/2.2 support
- Gold-plated connectors and contacts
DC Supplies Product Note
The P164-000-8K6 is useful when an existing HDMI cable run needs additional length without replacing the installed cable. For an 8K/60Hz connection, both connected HDMI cables and the source/display equipment need to support the required bandwidth; the coupler itself does not upgrade a lower-specification cable.
Applications
- Conference room HDMI installations
- Digital signage connections
- Home theater and AV systems
- PC-to-display HDMI connections
- Projector and display installations
- Extending existing HDMI cable runs
Specifications
| Brand | Eaton / Tripp Lite |
|---|
| Part Number / MPN | P164-000-8K6 |
|---|
| Product Type | HDMI Coupler / Gender Changer |
|---|
| Connector A | HDMI Female |
|---|
| Connector B | HDMI Female |
|---|
| Connection Type | HDMI Receptacle to HDMI Receptacle |
|---|
| Maximum Resolution | 7680 x 4320 |
|---|
| Maximum Refresh Rate | 60 Hz |
|---|
| Maximum Video | 8K at 60 Hz |
|---|
| Chroma Subsampling | 4:4:4 |
|---|
| Color Depth | 36-bit Deep Color |
|---|
| HDR | Yes |
|---|
| HDCP | HDCP 1.4 / 2.2 |
|---|
| Connector Finish | Gold-Plated |
|---|
| Contact Finish | Gold-Plated |
|---|
| Mounting | Free-Hanging / Inline |
|---|
| Color | Black |
|---|
| Housing Material | PVC |
|---|
| Operating Temperature | 14°F to 122°F (-10°C to 50°C) |
|---|
| Storage Temperature | 5°F to 140°F (-15°C to 60°C) |
|---|
| Operating Humidity | 0–90% RH, Non-Condensing |
|---|
| Compliance | RoHS, REACH, TAA |
|---|
| Warranty | Lifetime Limited Warranty |
|---|
Physical Dimensions
| Length / Depth | 1.14 in |
|---|
| Width | 0.64 in |
|---|
| Height | 0.58 in |
|---|
| Weight | 0.02 lb |
|---|
Package Contents
- P164-000-8K6 HDMI Coupler
Frequently Asked Questions
What is the Eaton P164-000-8K6 used for?
It connects two HDMI cables together to create a longer HDMI cable run.
Are both connectors female?
Yes. The P164-000-8K6 has an HDMI female receptacle on each end and is designed for two HDMI male-ended cables.
Does it support 8K at 60 Hz?
Yes. The manufacturer specifies support for up to 7680 x 4320 at 60 Hz with 4:4:4 chroma.
Does the coupler support HDR?
Yes. HDR support is specified for compatible HDMI equipment and cables.
Will it make any HDMI cable support 8K?
No. The coupler does not increase the capabilities of connected equipment or cables. For 8K/60Hz operation, the source, display, and HDMI cables must all support the required bandwidth.
Is the P164-000-8K6 backward compatible?
Yes. Eaton/Tripp Lite specifies backward compatibility with previous HDMI generations, subject to the capabilities of the connected equipment.
