Detailed Specifications

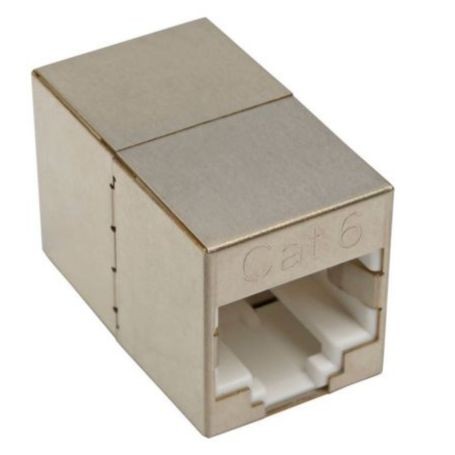

Eaton N234-001-SH Tripp Lite Cat6 Straight-Through Modular Shielded Compact In-Line Coupler (RJ45 F/F), TAA
Overview :
The Eaton Tripp Lite series N234-001-SH is a heavy-duty Cat6 shielded in-line coupler engineered for enterprise networks, data centers, and high-noise industrial cabling installations. Network technicians and cabling installers deploy this adapter to securely join two RJ45 patch cables together, extending cable runs without signal degradation, cross-talk, or performance loss.
It supports Gigabit (1000 Mbps) Ethernet data transmission rates over 250 MHz bandwidth, featuring a fully shielded die-cast metal housing designed to protect against electromagnetic interference (EMI) and radio frequency interference (RFI) in server rooms and heavy-machinery environments.
Optimized for deployment in patch panels, rack-mounted enclosures, surface-mount boxes, and structured cabling runs.
Compatible with standard shielded and unshielded Cat6, Cat6a, and Cat5e RJ45 patch cables. Do not use this coupler in installations requiring 10G-over-Cat6a channel performance or in wet outdoor environments without a dedicated weatherproof enclosure.
Key Features :
Supports Gigabit Ethernet data rates up to 250 MHz bandwidth
Heavy-duty die-cast metal housing blocks EMI and RFI noise
RJ45 female-to-female feed-through connects two patch cables
Gold-plated contacts ensure reliable, corrosion-resistant signal flow
Rugged metallic finish suits server racks and industrial panels
Specifications :
| Specification | Detail |
| Brand | Eaton (Tripp Lite Series) |
| Part Number | N234-001-SH |
| Product Type | RJ45 In-Line Coupler |
| Cable Standard | Cat6 (Category 6) / Compatible with Cat5e |
| Max Data Rate | 1 Gbps (Gigabit Ethernet) |
| Bandwidth | 250 MHz |
| Connector A | RJ45 (Female, Shielded) |
| Connector B | RJ45 (Female, Shielded) |
| Housing Material | Die-cast Zinc (Fully Shielded) |
| Contact Plating | 50-micron Gold-plated |
| Certifications | RoHS, REACH, IEEE 802.3ab |
