Detailed Specifications

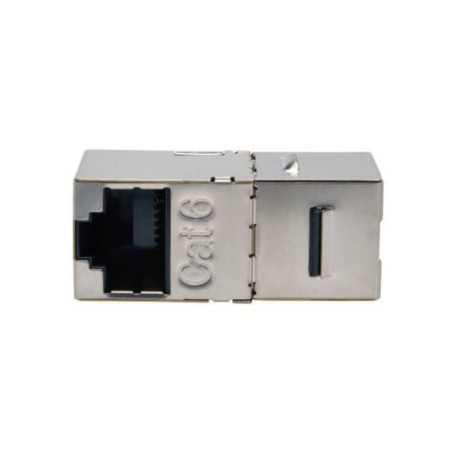

Eaton N235-001-SH-D Cat6 Shielded Straight-Through Modular Coupler Compatible Brand Tripp Lite
Overview :
The Eaton N235-001-SH-D is a Cat6 Straight-Through Modular Shielded In-Line Snap-In Coupler with RJ45 female-to-female connections. Eaton identifies the product within its Tripp Lite series. The coupler connects two Cat6 patch cords to create a longer cable run and can be installed in a standard keystone wallplate.
The unit features a 90-degree downward-angled RJ45 port for easier installation in tight or difficult-to-reach spaces. Its protective metal housing provides shielding against EMI/RFI interference, while the contacts use 50-microinch gold plating.
The coupler supports Cat5e and Cat6 cabling, uses straight-through wiring, and supports Type 4 PoE++ up to 100W according to Eaton's current catalog. It is intended for network closets, server rooms, data centers and structured Ethernet installations.
Key Features :
- Cat6 straight-through modular coupler
- RJ45 female-to-female configuration
- 90-degree downward-angled port
- Fully shielded metal housing
- 50-microinch gold-plated contacts
- Keystone design for wallplate installation
- Compatible with Cat6 cabling
- Backward compatible with Cat5e and Cat5 LANs
- Supports Type 4 PoE++ up to 100W
- Straight-through wiring
- UL-listed
- TAA compliant
- Lifetime limited warranty
Specifications :
| SpecificationDetails | |
|---|
| Manufacturer | Eaton |
| Compatible Brand | Tripp Lite |
| Part Number | N235-001-SH-D |
| Product Type | Cat6 Shielded Modular Coupler |
| Coupler Type | RJ45 Straight-Through |
| Connector A | RJ45 Female |
| Connector B | RJ45 Female |
| Connector Configuration | Female-to-Female |
| Technology | Cat5e / Cat6 |
| Shielding | Shielded |
| Port Angle | 90° Down |
| Contact Plating | 50 µin. Gold |
| Housing | Protective Metal |
| Wiring | Straight-Through |
| Mounting | Keystone / In-Line Snap-In |
| PoE Support | Type 4 PoE++ |
| PoE Power | Up to 100W |
| Compatible Cabling | Cat5, Cat5e, Cat6 |
| Color | Silver |
| Connector Color | Silver |
| Compliance | UL Listed, TAA |
