Detailed Specifications

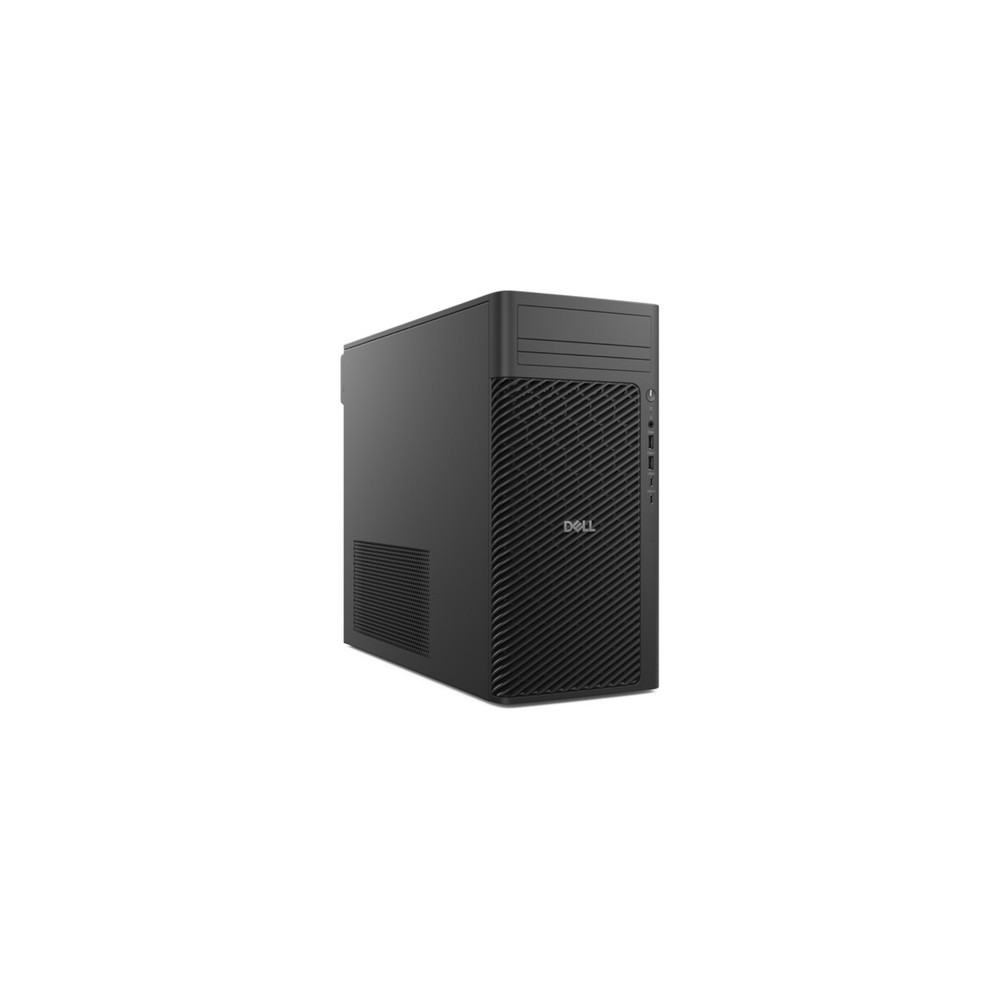

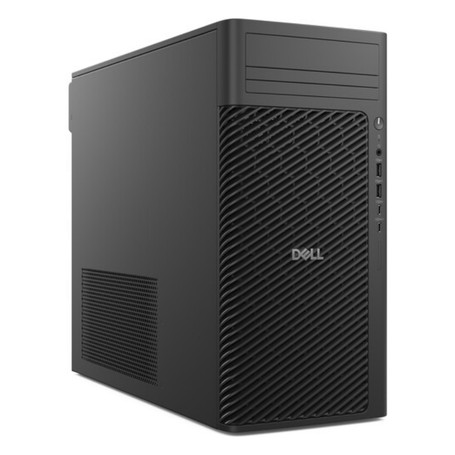

Dell 8MNGY Pro Max Tower T2 FCT2250 with Intel Core Ultra 5
Overview :
The Dell 8MNGY is a scalable Pro Max Tower T2 FCT2250 workstation designed for enterprise-level AI workflows and data analysis. Powered by the Intel Core Ultra 5,235 14-core processor, it integrates the Intel AI Boost NPU to deliver localized AI acceleration. This tower configuration includes a dedicated NVIDIA A1000 GPU with 8GB of GDDR6 memory, providing the professional graphics stability and ISV certifications required for specialized business applications and machine learning models.
The system is equipped with 16GB of DDR5-5600 memory and a 512GB PCIe NVMe Gen4 SSD. Its 32L chassis is designed for maximum expandability, featuring multiple PCIe slots and internal bays for storage scaling. This architecture ensures high-bandwidth data handling and low-latency response for complex datasets, making it an ideal choice for procurement teams outfitting modern, AI-integrated office environments.
Designed for professional connectivity and reliability, the 8MNGY includes a 500W Platinum-rated power supply and supports up to four external displays via the discrete NVIDIA card. It features a high-density array of I/O ports, including USB 3.2 Gen 2x2 for 20Gbps transfers. While highly capable for mainstream professional compute and 3D modeling, users requiring extreme rendering power should evaluate this configuration against higher-tier RTX Ada Generation workstations.
Key Features :
Intel Core Ultra 5,235 14-core CPU optimizes AI-driven business apps
NVIDIA A1000 8GB GDDR6 GPU provides ISV-certified visual compute
Integrated 13 TOPS Intel AI Boost NPU accelerates localized AI tasks
32L scalable tower chassis allows for extensive internal expansion
500W 80 Plus Platinum PSU ensures peak system power efficiency
Specifications :
| Technical Specifications | Details |
| Brand | Dell |
| Part Number | 8MNGY |
| Product Type | Pro Max Tower T2 Workstation |
| Processor | Intel Core Ultra 5,235 (Series 2) |
| Core Count | 14-Core (6P + 8E) up to 5.0 GHz |
| NPU Performance | 13 TOPS (Intel AI Boost) |
| Standard Memory | 16 GB DDR5 5600 MT/s (1 x 16 GB) |
| Storage | 512 GB PCIe NVMe Gen4 M.2 SSD |
| Graphics | NVIDIA A1000 (8 GB GDDR6) |
| Optical Drive | 8x DVD+/-RW 9.5mm ODD |
| Wired Networking | 1 x RJ45 Gigabit Ethernet (Intel I219-LM) |
| Interfaces | 2x USB-C 3.2 Gen 2x2, 1x USB-C 3.2 Gen 2, 4x USB-A |
| Video Output | 2x DisplayPort 1.4a (Rear), 4x Mini-DP (via GPU) |
| Expansion | 1x PCIe 5.0 x16, 1x PCIe 4.0 x4, 3x M.2 SSD slots |
| Power Supply | 500W Internal (80 Plus Platinum) |
