Detailed Specifications

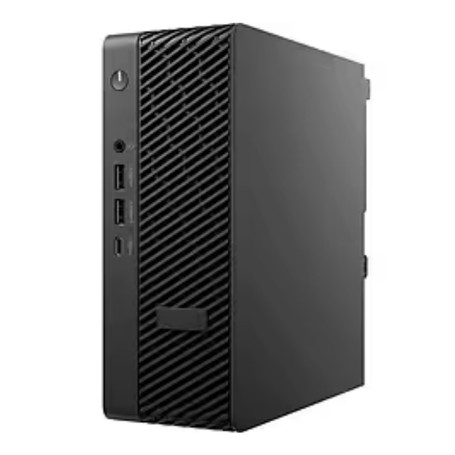

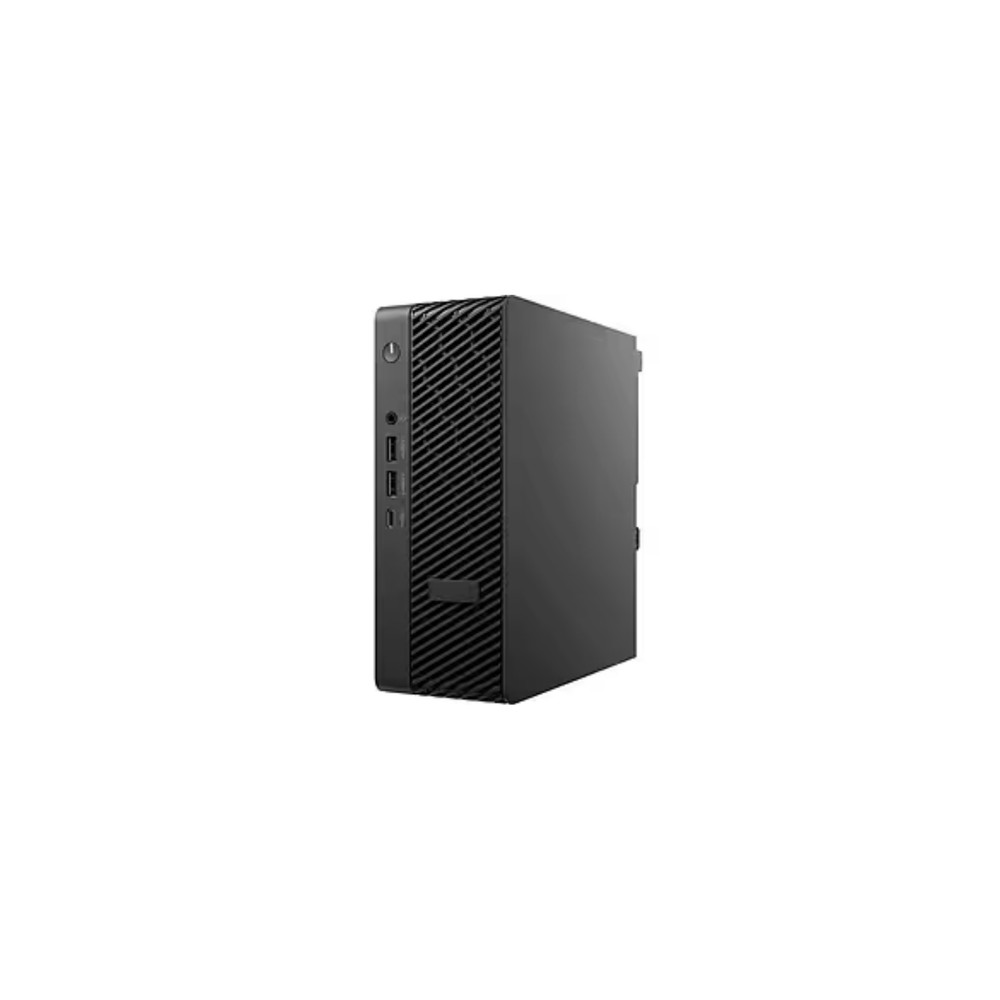

Dell J8Y8M Pro Max Micro FCM2250 with Core Ultra 7 and NVIDIA RTX A1000
Overview :
The Dell J8Y8M is an ultra-small form factor (USFF) Pro Max Micro FCM2250 workstation engineered for professional-grade AI development and localized machine learning. Powered by the Intel Core Ultra 7,265 20-core processor, it integrates an Intel AI Boost NPU to offload background AI tasks. Crucially, this micro-chassis features a dedicated NVIDIA RTX A1000 GPU with 8GB of GDDR6 memory, providing the CUDA performance required for professional 3D design and complex data visualization in a 2.9L footprint.
The technical infrastructure is built on the Intel W880 chipset, featuring 16GB of DDR5-5600 memory and a 512GB PCIe NVMe Gen4 SSD. This configuration is optimized for edge compute deployments where space is at a premium but workstation-class graphics stability is non-negotiable. The system supports up to four external displays and incorporates the latest Wi-Fi 7 standards for high-bandwidth wireless networking.
Designed for enterprise reliability, the J8Y8M includes vPro Enterprise for remote fleet management and hardware-level security. It is an ideal solution for engineering and financial sectors requiring high-density compute nodes, though it utilizes an external 280W power supply to sustain the power requirements of the discrete GPU and 65W processor.
Key Features :
Intel Core Ultra 7,265 20-core CPU scales for advanced AI compute
NVIDIA RTX A1000 8GB GPU enables stable professional 3D workflows
Integrated 13 TOPS Intel AI Boost NPU optimizes localized AI tasks
Next-gen Wi-Fi 7 (802.11be) ensures peak wireless data throughput
Ultra-compact 2.9L chassis delivers full workstation-class performance
Specifications :
| Technical Specifications | Details |
| Brand | Dell |
| Part Number | J8Y8M |
| Product Type | Pro Max Micro Workstation |
| Processor | Intel Core Ultra 7,265 (vPro Enterprise) |
| Core Count | 20-Core (8P + 12E) up to 5.3 GHz |
| NPU Performance | 13 TOPS (Intel AI Boost) |
| Standard Memory | 16 GB DDR5 5600 MT/s (1 x 16 GB) |
| Storage | 512 GB M.2 PCIe NVMe Gen4 SSD |
| Graphics | NVIDIA RTX A1000 (8 GB GDDR6) |
| Wireless | Wi-Fi 7 BE200 (802.11be), Bluetooth 5.4 |
| Wired Networking | 1 x RJ45 Gigabit Ethernet (Intel I219-LM) |
| Interfaces | 1x USB-C 3.2 Gen 2x2, 1x USB-C 3.2 Gen 2, 6x USB-A |
| Video Output | 3 x DisplayPort 1.4a (supports 4x mDP via GPU) |
| Power Supply | 280W External Power Adapter |
