Detailed Specifications

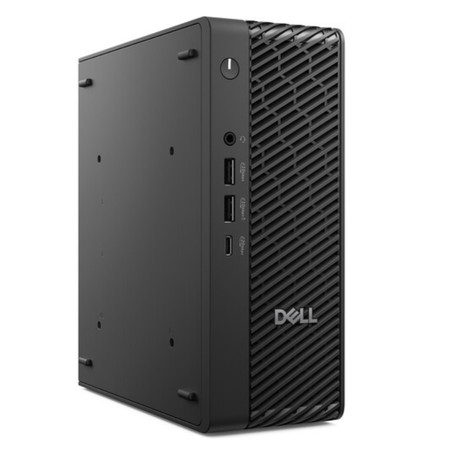

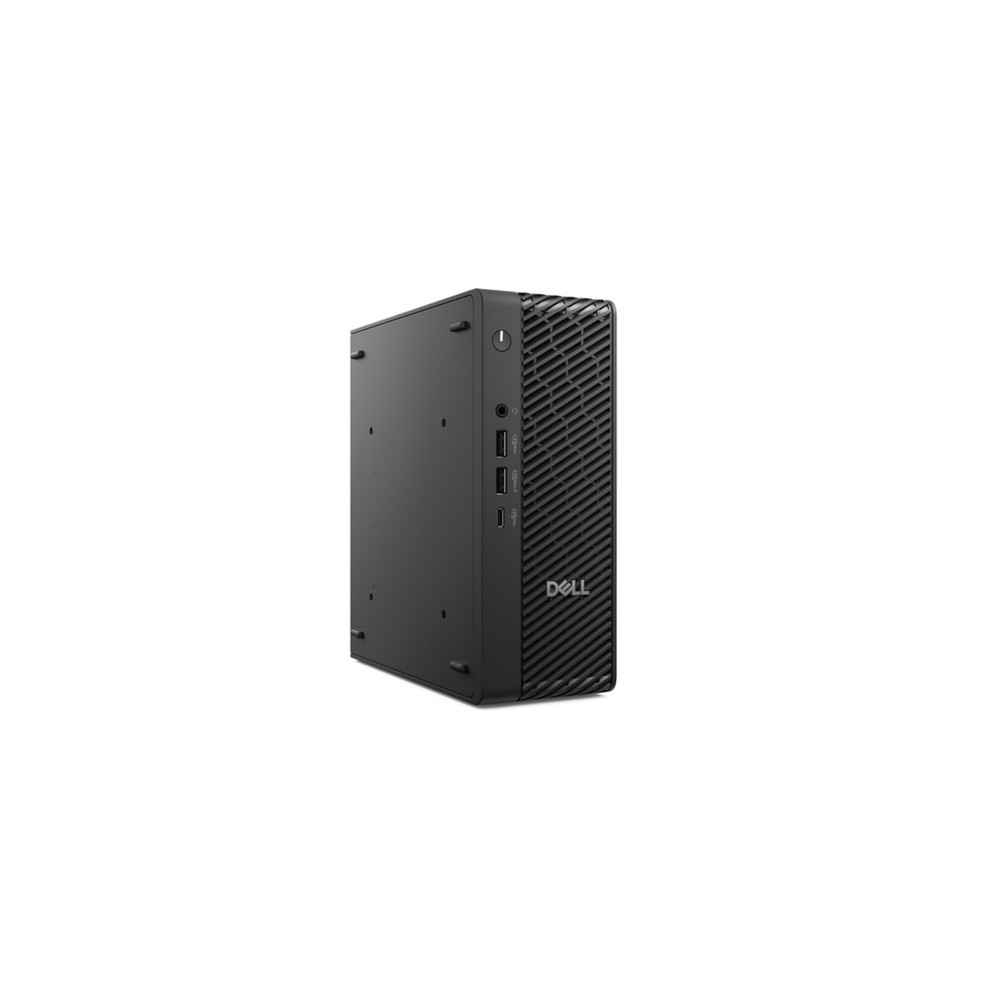

Dell N35W6 - Pro Max Micro FCM2250 with Core Ultra 7 and RTX 2000 Ada
Overview :
The Dell N35W6 is an ultra-small form factor (USFF) Pro Max Micro FCM2250 workstation engineered for elite AI development and high-end visual compute. It is powered by the Intel Core Ultra 7,265 icosa-core processor, featuring the Intel AI Boost NPU. Unlike standard micro PCs, this configuration integrates a dedicated NVIDIA RTX 2000 Ada Generation GPU with 16GB of GDDR6 memory, providing the CUDA cores and tensor performance required for professional 3D rendering and complex machine learning at the edge.
The technical foundation includes 32GB of high-speed DDR5 memory and a 512GB PCIe NVMe Gen4 self-encrypting SSD. This combination ensures secure, high-bandwidth data handling for sensitive enterprise projects. The system architecture supports next-generation Wi-Fi 7 and includes a versatile array of video outputs, including four Mini DisplayPorts specifically for the discrete NVIDIA card, allowing for expansive multi-monitor engineering setups.
Designed for space-constrained data centers or advanced engineering desks, the N35W6 offers the power of a full-sized tower in a 2.9L chassis. It features robust connectivity with USB 3.2 Gen 2x2 (20Gbps) and is built with Intel vPro Enterprise for remote manageability and hardware-level security. It is the ideal solution for AI-integrated professional environments, though it requires an external 280W power source to support its high-performance discrete graphics.
Key Features :
Intel Core Ultra 7,265 20-core CPU scales for advanced AI compute
NVIDIA RTX 2000 Ada 16GB GPU supports professional 3D and ML tasks
32GB DDR5 RAM provides the bandwidth for data-intensive multitasking
Next-gen Wi-Fi 7 and Bluetooth ensure the highest wireless throughput
Ultra-small 2.9L chassis delivers workstation power in a micro footprint
Specifications :
| Technical Specifications | Details |
| Brand | Dell |
| Part Number | N35W6 |
| Product Type | Pro Max Micro Workstation |
| Processor | Intel Core Ultra 7,265 (vPro Enterprise) |
| Core Count | 20-Core (8P + 12E) up to 5.3 GHz |
| NPU Performance | 13 TOPS (Intel AI Boost) |
| Standard Memory | 32 GB DDR5 (1 x 32 GB) |
| Storage | 512 GB PCIe NVMe Gen4 SSD (SED) |
| Graphics | NVIDIA RTX 2000 Ada Generation (16GB GDDR6) |
| Wireless | Intel Wi-Fi 7 BE200 + Bluetooth |
| Wired Networking | 1 x RJ45 Gigabit Ethernet (Intel I219-LM) |
| Interfaces | 1x USB-C 3.2 Gen 2x2, 1x USB-C 3.2 Gen 2, 4x USB-A |
| Video Output | 3 x DisplayPort 1.4a (Rear), 4 x Mini-DP 1.4a (GPU) |
| Power Supply | 280W External Power Adapter |
