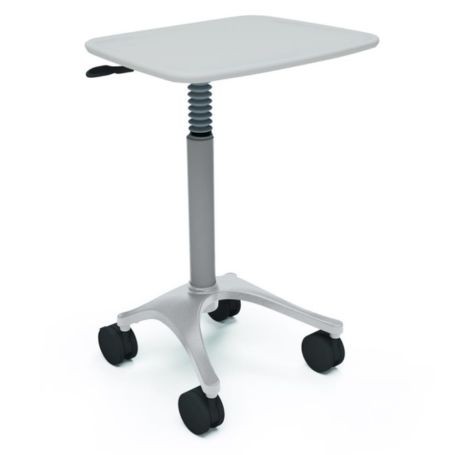

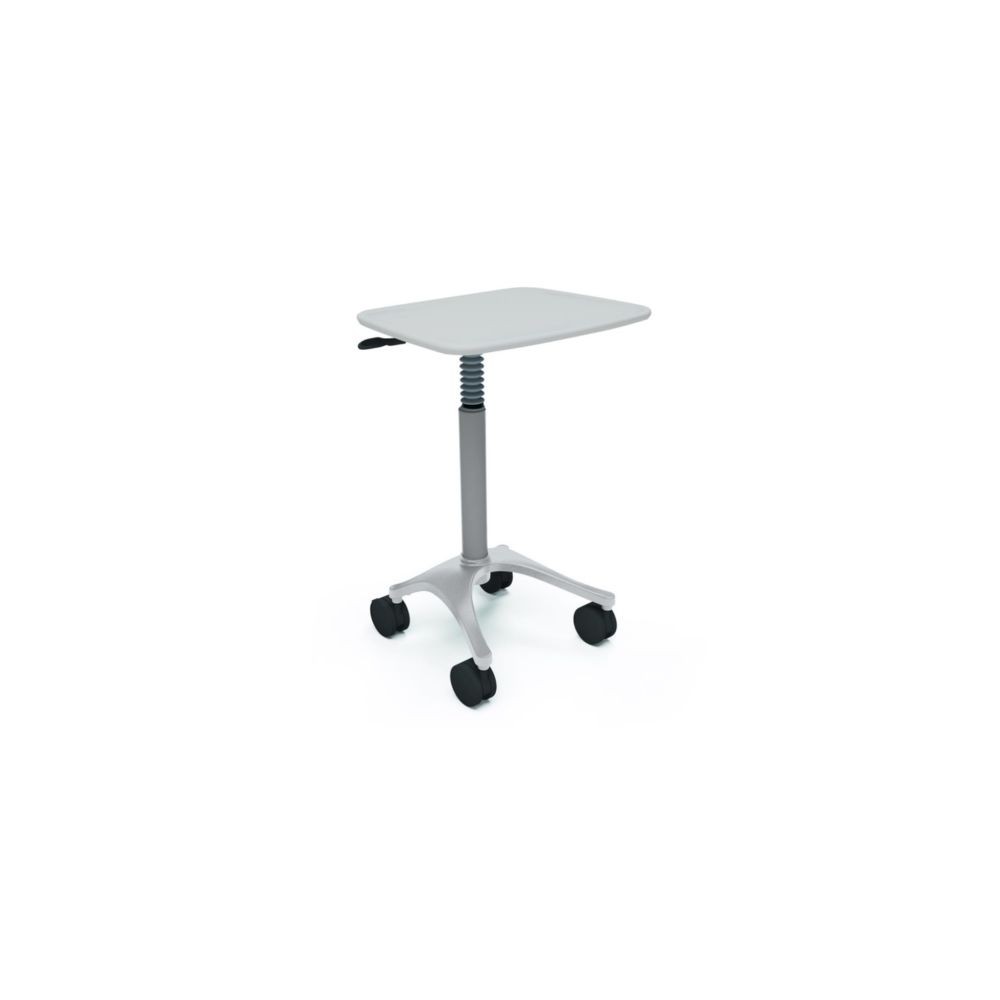

The Ergotron Zido 22 ZAL22CG/CG4 is a compact, adjustable-height mobile cart designed for healthcare, laboratory, and general office environments. Its pneumatic height-adjustment column lets users position the worksurface for different tasks, while the sturdy frame and wheeled base make it easy to move equipment and supplies between work areas.
Adjustable Working Height
The pneumatic adjustment mechanism allows the worksurface height to be set between 30 and 40 inches (76.2–101.6 cm). This 10-inch adjustment range supports a variety of working positions and tasks. The recommended load on the adjustable worksurface is 16–30 lb (7.3–13.6 kg) for easier adjustment.
Durable 22-Inch Worksurface
The 22 x 17-inch (56 x 43 cm) worksurface is made from medium-density fibreboard with a durable thermoplastic laminate and Comfort Edge finish. The surface is designed to resist cracking, chipping, and a wide range of chemicals encountered in everyday work environments.
Stable Construction and Mobile Base
The steel column and heavy cast-metal base provide a stable platform for equipment and supplies. Four 4-inch (10.2 cm) dual-wheel rubber casters support movement around the workplace, and two casters lock to help keep the cart stationary when positioned for use.
Flexible Configuration
The column includes accessory mounting holes at 1-inch (2.54 cm) increments, allowing compatible accessories to be installed at different heights. Additional shelves and other accessories are available separately where compatible.
Key Features
- Pneumatic height adjustment from 30 to 40 inches (76.2–101.6 cm).
- 22 x 17-inch (56 x 43 cm) durable laminated worksurface.
- 150 lb (68.2 kg) total weight capacity, with a 40 lb (18.2 kg) worksurface limit.
- Heavy cast-metal base and steel column with a cool-grey finish.
- Four 4-inch dual-wheel rubber casters, including two locking casters.
Typical Applications
- Healthcare work areas
- Laboratories and technical environments
- General office equipment support
- Mobile storage and equipment positioning
DC Supplies Product Note
Confirm the combined weight of equipment and accessories before use. The cart supports up to 150 lb (68.2 kg) overall, but the worksurface itself is limited to 40 lb (18.2 kg). For easier height adjustment, Ergotron recommends a 16–30 lb (7.3–13.6 kg) load on the adjustable worksurface. Accessories shown in product illustrations may be sold separately.
Specifications
| Brand | Ergotron |
|---|
| Part Number / MPN | ZAL22CG/CG4 |
|---|
| Product Type | Adjustable-height mobile cart |
|---|
| Product Family | Zido 22 |
|---|
| Colour | Cool grey |
|---|
| Frame Material | Steel column and cast-metal base |
|---|
| Worksurface Material | Medium-density fibreboard with thermoplastic laminate |
|---|
| Worksurface Dimensions | 22 x 17 inches (56 x 43 cm) |
|---|
| Height Adjustment | 30–40 inches (76.2–101.6 cm) |
|---|
| Adjustment Mechanism | Pneumatic column with lever control |
|---|
| Total Weight Capacity | 150 lb (68.2 kg) |
|---|
| Worksurface Weight Capacity | 40 lb (18.2 kg) |
|---|
| Recommended Worksurface Load for Adjustment | 16–30 lb (7.3–13.6 kg) |
|---|
| Base Dimensions | 17 x 22.25 inches (43.2 x 56.5 cm) |
|---|
| Casters | Four 4-inch (10.2 cm) dual-wheel rubber casters; two locking |
|---|
| Accessory Mounting | Column holes spaced at 1-inch (2.54 cm) increments |
|---|
| Power Type | Non-powered |
|---|
| Product Weight | 40 lb (18 kg) |
|---|
| Warranty | Limited lifetime; five years for the pneumatic cylinder |
|---|
Frequently Asked Questions
What is the height-adjustment range?
The worksurface adjusts from 30 to 40 inches (76.2–101.6 cm) using the pneumatic adjustment mechanism.
What is the cart's maximum weight capacity?
The total cart capacity is 150 lb (68.2 kg). The worksurface itself supports up to 40 lb (18.2 kg).
Does the cart have locking wheels?
Yes. It has four 4-inch dual-wheel rubber casters, two of which lock to help secure the cart in position.
Can accessories be added?
Yes. Compatible accessories can be attached to the column's mounting holes, which are spaced at 1-inch intervals. Accessory compatibility should be confirmed before ordering.
Is this cart powered?
No. The ZAL22CG/CG4 is a non-powered cart and does not include an integrated electrical power system.
