Overview

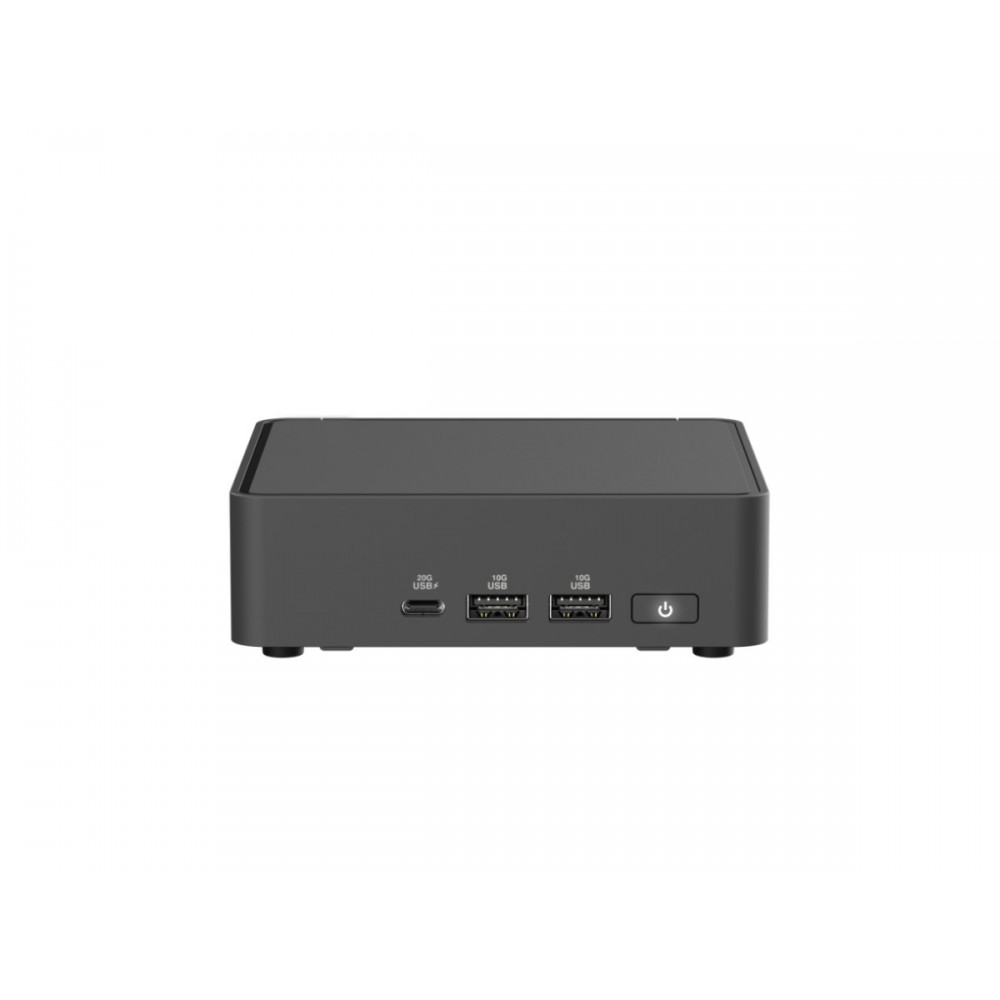

The ASUS NUC 15 Pro Slim Barebone Mini PC (RNUC15CRKU70000U) is a compact computing solution designed for business productivity, office workspaces, and professional applications. It features an Intel Core Ultra 7 255H processor and integrated Intel Arc 140T graphics in a space-saving slim chassis.
This barebone kit allows users to customize their system with compatible memory and storage. It supports up to 96GB of DDR5 memory, two M.2 SSDs, Wi-Fi 7, Bluetooth 5.4, 2.5GbE Ethernet, and Thunderbolt 4 connectivity. Memory, storage, and the operating system are not preinstalled.
Key Features
- Intel Core Ultra 7 255H processor with 16 cores.
- Integrated Intel Arc 140T graphics.
- Slim, compact barebone mini PC design.
- Two DDR5 SO-DIMM memory slots supporting up to 96GB.
- Two M.2 SSD slots for storage expansion.
- Two Thunderbolt 4 ports and two HDMI 2.1 outputs.
- Wi-Fi 7 and Bluetooth 5.4 wireless connectivity.
- 2.5GbE wired Ethernet connection.
- Supports multi-display configurations with compatible connections.
- 120W power adapter.
Technical Specifications
| Specification | Details |
|---|
| Brand | ASUS |
| Part Number / MPN | RNUC15CRKU70000U |
| Product Type | Barebone Mini PC |
| Product Family | ASUS NUC 15 Pro |
| Form Factor | Slim |
| Color | Black |
| Processor | Intel Core Ultra 7 255H |
| Processor Cores | 16 |
| Maximum Processor Frequency | Up to 5.1GHz |
| Graphics | Integrated Intel Arc 140T |
| Installed Memory | None |
| Memory Type | DDR5 SO-DIMM / CSO-DIMM, depending on supported configuration |
| Memory Slots | 2 |
| Maximum Memory | 96GB |
| Installed Storage | None |
| Storage Expansion | 1 × M.2 2280 and 1 × M.2 2242 NVMe SSD slot |
| Operating System | Not preinstalled |
| USB-C | 1 × USB 3.2 Gen 2x2 Type-C |
| Thunderbolt | 2 × Thunderbolt 4 |
| USB-A | 3 × USB 3.2 Gen 2; 1 × USB 2.0 |
| Display Outputs | 2 × HDMI 2.1, plus display output via Thunderbolt 4 |
| Ethernet | 2.5GbE RJ45 |
| Wireless | Wi-Fi 7 |
| Bluetooth | 5.4 |
| Power Adapter | 120W |
| Dimensions (L × W × H) | 4.60 × 4.40 × 1.45 inches |
| Weight | 0.80 lbs |
Applications
- Business and office productivity.
- Compact desktop computing for professional workspaces.
- Meeting rooms and multi-display workstations.
- Digital signage and business display applications.
- Custom PC configurations for IT teams and system integrators.
Compatibility and Installation
This barebone kit requires compatible memory, an M.2 SSD, and an operating system to complete the system configuration. Confirm the supported memory module type and SSD interface before purchasing components.
Connect compatible displays through HDMI 2.1 or Thunderbolt 4. The system supports wired networking through its 2.5GbE Ethernet port and wireless connections through Wi-Fi 7 and Bluetooth 5.4.
Frequently Asked Questions
Does the ASUS RNUC15CRKU70000U include RAM?
No. Memory is sold separately and must be installed before use.
Does this mini PC include an SSD?
No. Storage is not preinstalled. The system provides two M.2 SSD slots.
Which processor is included?
It features the Intel Core Ultra 7 255H processor with integrated Intel Arc 140T graphics.
Does it come with Windows?
No operating system is preinstalled. Install a supported operating system separately.
Can it connect to multiple monitors?
Yes. It has two HDMI 2.1 outputs and two Thunderbolt 4 ports for supported multi-display configurations.
What is the difference between this model and the Tall version?
The RNUC15CRKU70000U is the Slim version, with a chassis height of approximately 1.45 inches. Tall models use a taller chassis design.
DC Supplies Product Note
Before ordering, verify the exact MPN, memory and storage requirements, operating system, and included accessories. This product is a barebone mini PC and requires additional components to become a complete working system.
