Overview

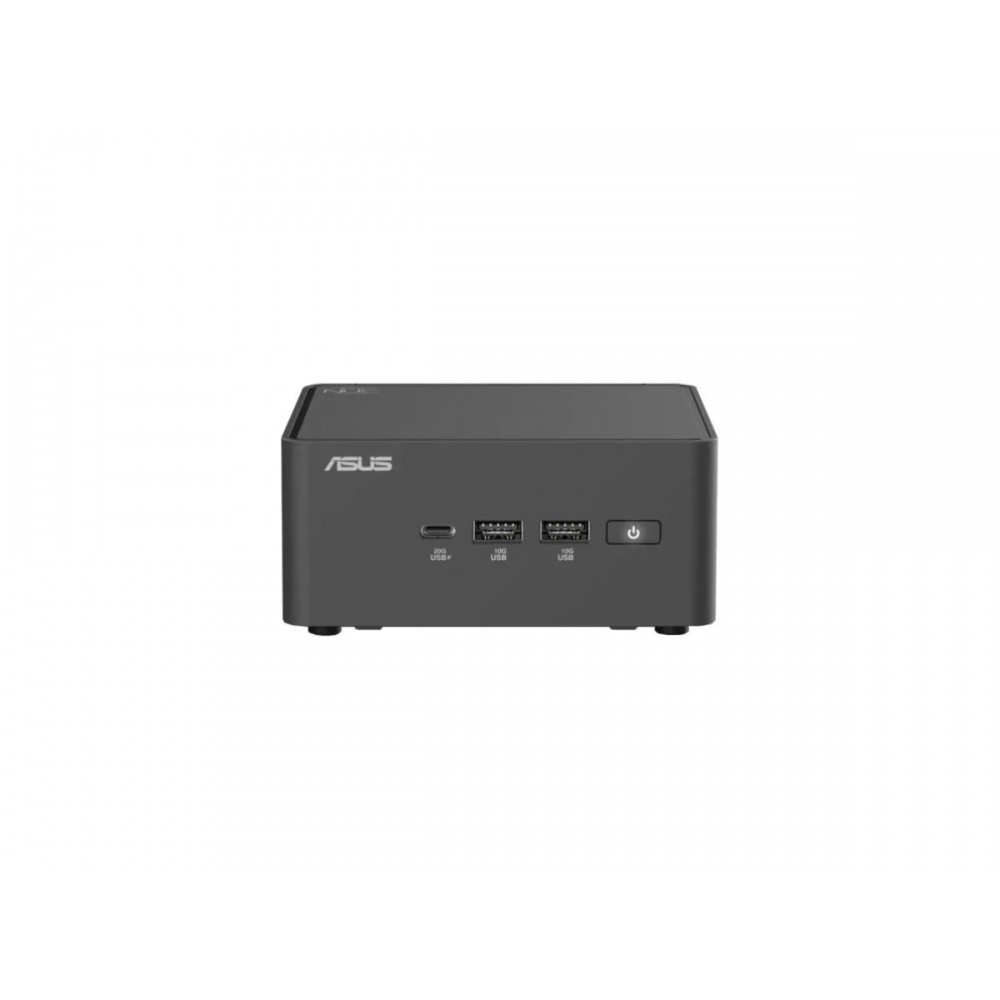

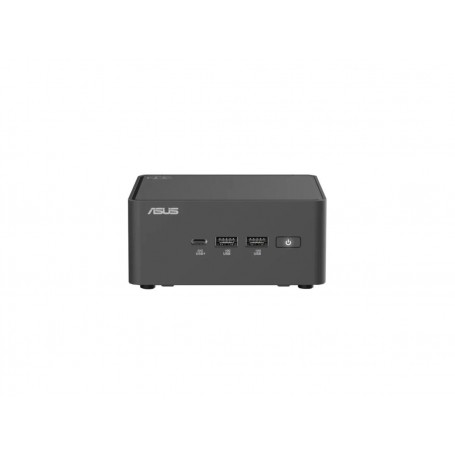

The ASUS NUC 15 Pro Tall Barebone Mini PC (MPN: RNUC15CRHU70000U) is a compact computing system designed for business productivity, office environments, digital signage, and professional applications. It features an Intel Core Ultra 7 255H processor and integrated Intel Arc 140T graphics in a space-saving chassis.
This barebone kit allows users and IT teams to configure memory and storage to suit their needs. It supports up to 96GB of DDR5 memory and two M.2 NVMe SSDs. Wi-Fi 7, Bluetooth 5.4, 2.5GbE Ethernet, dual Thunderbolt 4 ports, and dual HDMI 2.1 outputs provide flexible connectivity for modern workspaces.
Key Features
- Intel Core Ultra 7 255H processor with 16 cores.
- Integrated Intel Arc 140T graphics.
- Barebone configuration with RAM and storage sold separately.
- Two DDR5 SO-DIMM slots supporting up to 96GB of memory.
- Two M.2 NVMe SSD slots for storage expansion.
- Two Thunderbolt 4 ports with DisplayPort support.
- Two HDMI 2.1 outputs supporting up to 4K at 60Hz.
- 2.5 Gigabit Ethernet for wired networking.
- Wi-Fi 7 and Bluetooth 5.4 wireless connectivity.
- Compact 0.7-liter chassis for space-efficient installations.
Technical Specifications
| Specification | Details |
|---|
| Brand | ASUS |
| Part Number / MPN | RNUC15CRHU70000U |
| Product Type | Barebone Mini PC |
| Product Family | ASUS NUC 15 Pro |
| Chassis | Tall |
| Color | Black |
| Processor | Intel Core Ultra 7 255H |
| Processor Cores | 16 |
| Maximum Processor Frequency | Up to 5.1GHz |
| Graphics | Integrated Intel Arc 140T |
| Installed Memory | None |
| Memory Type | DDR5 SO-DIMM |
| Memory Slots | 2 |
| Maximum Memory | 96GB |
| Installed Storage | None |
| Storage Expansion | 1 × M.2 2280 PCIe Gen 4 x4 NVMe; 1 × M.2 2242 PCIe Gen 4 x4 NVMe |
| Operating System | Not preinstalled |
| Front I/O | 1 × USB-C 3.2 Gen 2x2; 2 × USB-A 3.2 Gen 2 |
| Rear I/O | 2 × Thunderbolt 4; 1 × USB-A 3.2 Gen 2; 1 × USB-A 2.0; 2 × HDMI 2.1; 1 × RJ45 LAN; DC-in |
| Ethernet | 2.5GbE |
| Wireless | Wi-Fi 7 |
| Bluetooth | 5.4 |
| Display Support | Up to four 4K displays at 60Hz, depending on configuration |
| Power Adapter | 120W external power adapter |
| Dimensions (L × W × H) | 4.61 × 4.41 × 2.13 inches |
| Weight | 0.80 lbs |
Applications
- Business and office productivity.
- Corporate workstations and meeting rooms.
- Digital signage and information displays.
- Compact computing for small offices and professional environments.
- Multi-display workstations and compatible business applications.
- Custom configurations for IT departments and system integrators.
Compatibility and Installation
This barebone system requires compatible DDR5 memory, an M.2 SSD, and an operating system to be purchased separately. Install supported components according to ASUS documentation before deploying the system.
Connect displays through the HDMI or Thunderbolt 4 ports. Wired networking is available through the 2.5GbE Ethernet port, while Wi-Fi 7 supports compatible wireless networks. Verify memory module compatibility, SSD form factors, operating system requirements, and power requirements before installation.
Frequently Asked Questions
Does this mini PC include RAM and storage?
No. This is a barebone kit, and memory and storage must be purchased separately.
Which processor does it use?
It features the Intel Core Ultra 7 255H processor with integrated Intel Arc 140T graphics.
How much memory can it support?
It has two DDR5 SO-DIMM slots and supports up to 96GB of memory, subject to compatible module specifications.
Can I install two SSDs?
Yes. The system provides one M.2 2280 slot and one M.2 2242 slot for compatible NVMe SSDs.
Does it include Windows?
No operating system is preinstalled. A compatible operating system must be installed separately.
Does it support multiple monitors?
Yes. The dual HDMI 2.1 and dual Thunderbolt 4 ports support configurations of up to four 4K displays at 60Hz, subject to setup and compatibility.
DC Supplies Product Note
DC Supplies recommends confirming the exact MPN, memory and SSD requirements, operating system, and included accessories before ordering. This product is a barebone mini PC, not a fully configured desktop computer.
