Overview

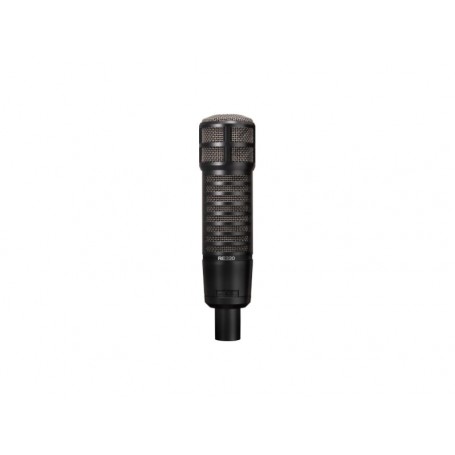

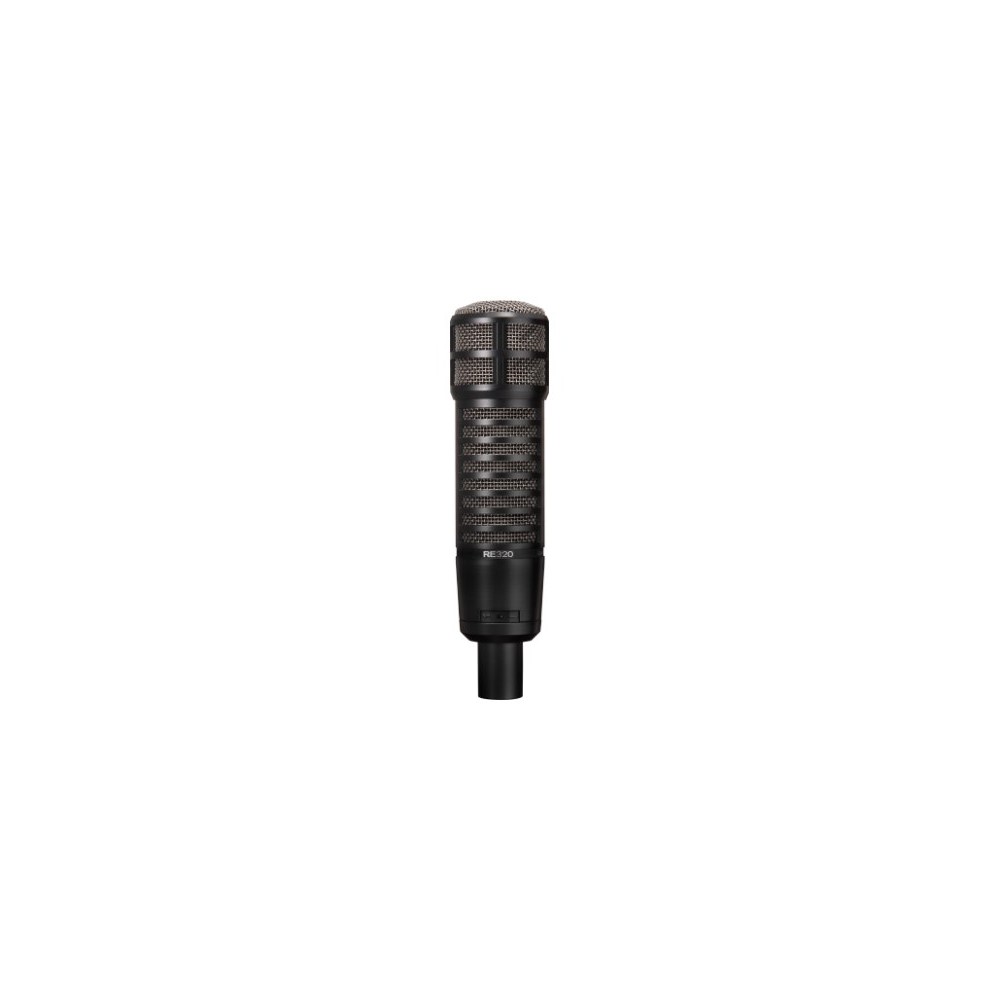

The Electro-Voice RE320 is a professional wired dynamic microphone designed for vocals, instruments, studio recording, live performance, podcasting, and broadcast applications. It combines Variable-D proximity control, an integrated humbucking coil, internal pop filtering, and a selectable dual-voicing response.
Variable-D Technology
Electro-Voice Variable-D technology helps minimize tonal changes caused by variations in microphone-to-source distance and off-axis positioning. This provides more consistent vocal and instrument reproduction across typical recording and performance positions.
Dual-Voicing Response
The RE320 incorporates a dual-voicing switch with separate response curves. The general curve is intended for vocals and most instruments, while the kick curve is specifically shaped for bass drum applications.
Dynamic Capsule and Low-Noise Design
The microphone uses a high-output N/Dym magnet structure and an integrated humbucking coil. The internal pop filters help control plosive noise while the cardioid polar pattern provides focused pickup around the primary sound source.
Connectivity
The RE320 uses a balanced 3-pin XLR connector and does not require external power. Its 150-ohm low-impedance output is suitable for professional microphone preamps, mixers, interfaces, and live sound equipment.
Key Features
- Variable-D proximity control for consistent tonal response
- Dual-voicing switch with general and kick-drum response curves
- Cardioid dynamic N/Dym magnet structure
- Integrated humbucking coil and pop filters
- Balanced 3-pin XLR output with 150-ohm impedance
Applications
The RE320 is suitable for professional vocals, acoustic and electric instruments, kick drum recording, studio production, live sound reinforcement, podcasting, and broadcast applications.
DC Supplies Product Note
The selectable general and kick response curves make the RE320 useful when one microphone needs to cover both conventional vocal/instrument work and dedicated kick-drum applications.
Specifications
| Brand | Electro-Voice |
| Part Number / MPN | RE320 |
| Product Type | Variable-D Dynamic Vocal and Instrument Microphone |
| Microphone Type | Dynamic |
| Polar Pattern | Cardioid |
| Frequency Response - Kick Curve | 30Hz–18kHz |
| Frequency Response - General Curve | 45Hz–18kHz |
| Impedance | 150 Ohms, low-Z balanced |
| Open Circuit Voltage | 2.5mV/Pascal |
| Connector | 3-pin XLR |
| Element | Dynamic N/Dym Magnet Structure |
| Proximity Control | Variable-D |
| Power Requirement | None |
| Finish | Semi-gloss Black |
| Case Material | Metal |
| Maximum Diameter | 49.2mm (1.94") |
| Height | 216.7mm (8.53") |
| Net Weight | 681g (24.02 oz) |
FAQs
What type of microphone is the Electro-Voice RE320?
The RE320 is a wired cardioid dynamic microphone designed for vocal and instrument applications.
Does the RE320 require phantom power?
No. The RE320 is a passive dynamic microphone and does not require external power.
What is the RE320 kick curve?
The kick curve is a dedicated frequency-response setting designed specifically for bass drum and kick-drum microphone applications.
What connector does the RE320 use?
The microphone uses a balanced 3-pin XLR connector.
What is Variable-D on the RE320?
Variable-D is Electro-Voice proximity-control technology designed to minimize tonal changes caused by changes in microphone position relative to the sound source.
