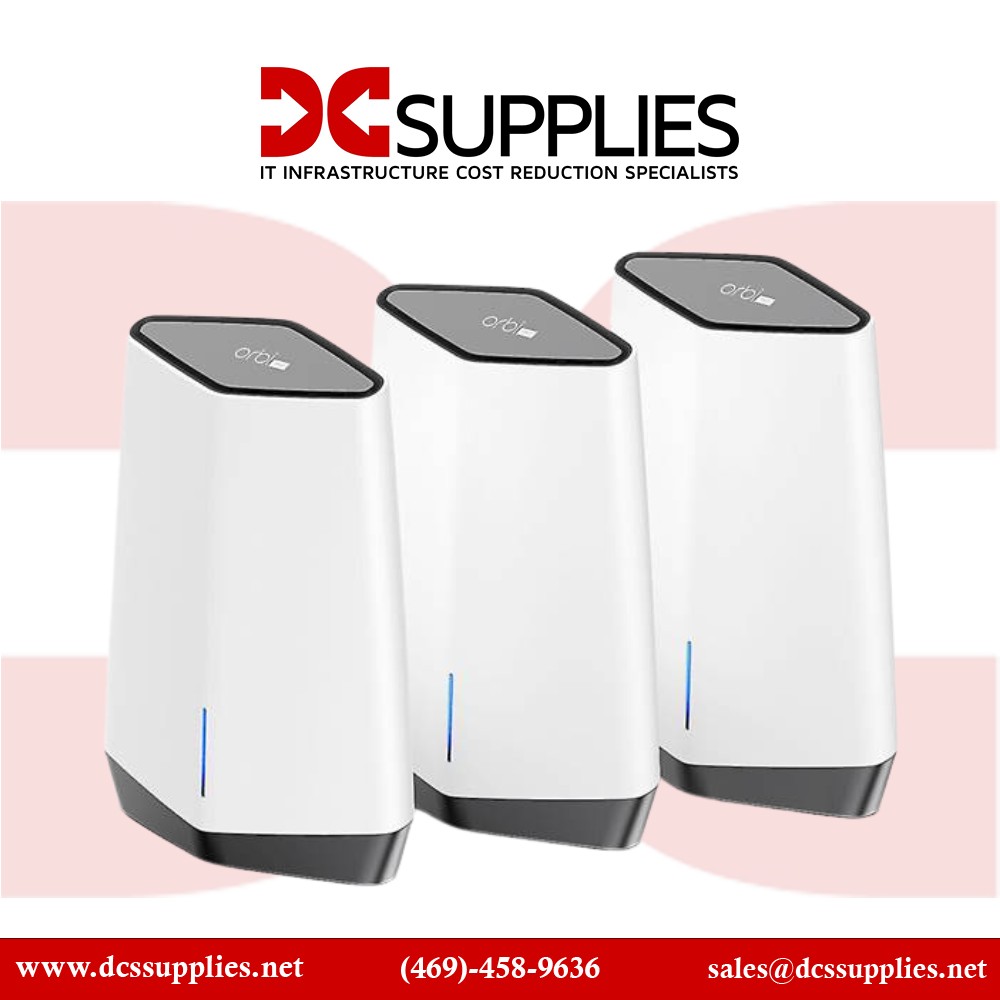

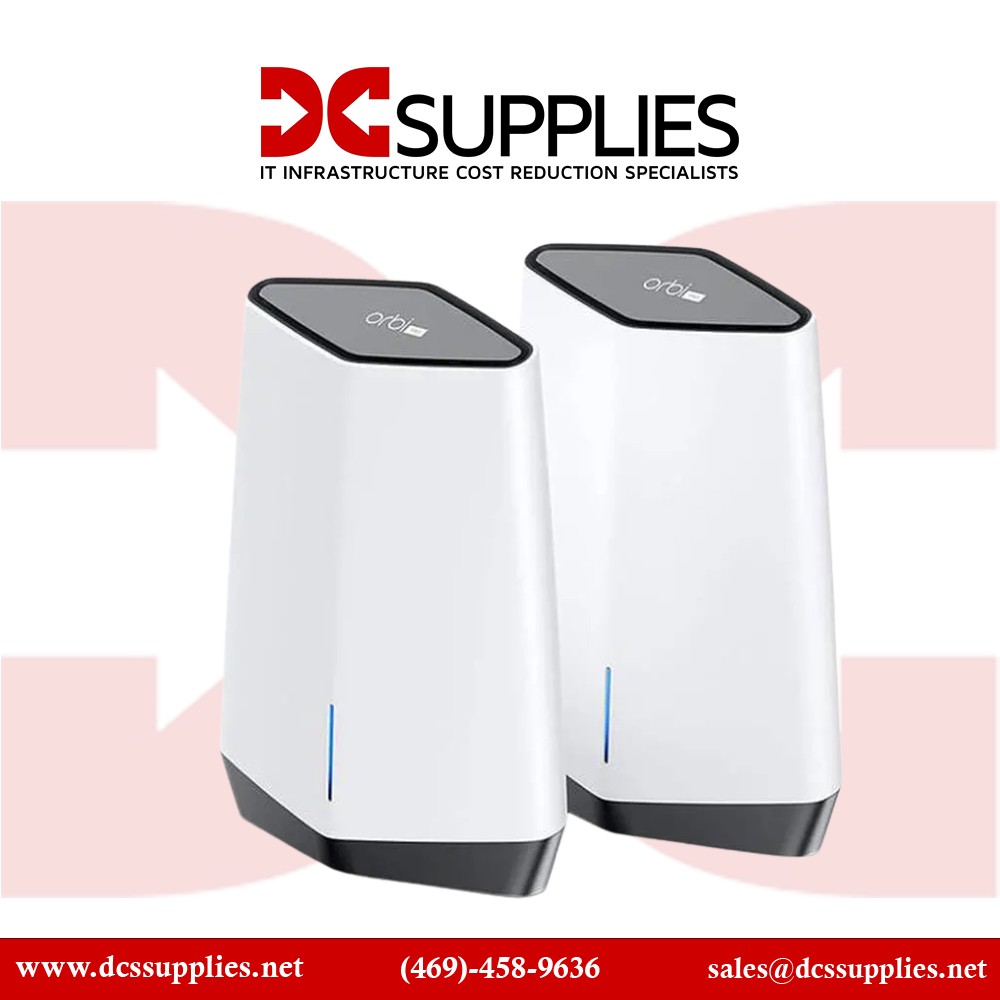

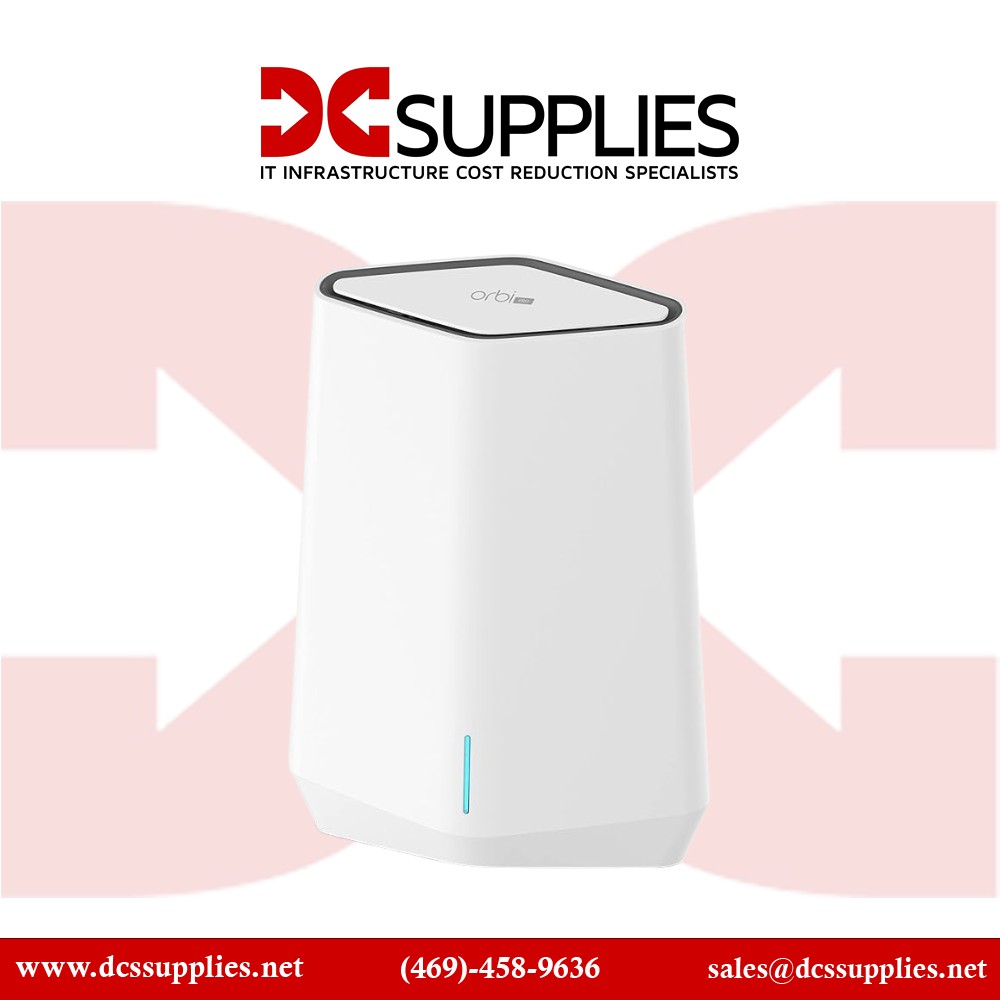

Netgear SXK80-100NAS Orbi Pro AX6000 Tri-Band Mesh Wi-Fi System

New

Netgear Wi-Fi System 2.4 GHz / 5 GHz / 5 GHz (Tri-Band)
×




  • New

Detailed Specifications

Netgear SXK80-100NAS

Orbi Pro AX6000 Tri‑Band Mesh Wi‑Fi System

The NETGEAR SXK80‑100NAS Orbi Pro is a robust tri-band AX6000 mesh Wi‑Fi 6 system tailored for small businesses and home offices.Featuring high-bandwidth capacity, multi-Gig Ethernet, business network segmentation, and centralized cloud management, it tackles demanding environments with ease.

Features

This system’s tri-band architecture includes dual 5 GHz and one 2.4 GHz radio, providing up to 6 Gbps throughput and ensuring wireless device traffic stays off the backhaul band. The SXR80 router, backed by a quad-core 710 MHz CPU, and matching SXS80 satellite deliver strong MU‑MIMO performance, beamforming, and OFDMA efficiency

Advanced Options

The Insight cloud management portal streamlines deployment and monitoring across locations—ideal for IT admins Multi-Gig ports, including 2.5 GbE WAN and LAN, plus link aggregation, ensure wired performance aligns with wireless capacity. Four SSIDs and VLAN support allow secure segmentation between admin, employees, guests, and IoT devices

Product Key Features

    •  Tri‑Band Wi‑Fi 6 AX6000, offering up to 6 Gbps total throughput (2.4 GHz + two 5 GHz bands)

    •  Coverage up to 6,000 ft² with included router and satellite—scalable up to 21,000 ft² with extra units

    •  4×4 MU‑MIMO, OFDMA & Beamforming+, powered by powerful quad-core 710 MHz CPU

    •  Multi‑Gig WAN/LAN ports: Router features 2.5 GbE WAN + 4×1 GbE LAN; Satellite includes 2.5 GbE + 4×1 GbE LAN, with link aggregation

    •  Business‑grade security & segmentation: WPA3, VLANs, 4 SSIDs, guest and IoT network isolation

    •  NETGEAR Insight remote cloud management, with 1-year subscription included

Reliability & Performance

Independent testing confirms excellent coverage—6,000 ft² with optional expansion—and strong 5 GHz speeds in real environments . However, some users report AC band performance lagging consumer models, especially in AP modeStill, its business-grade segmentation, VLAN flexibility, and cloud capabilities make it a compelling choice for professional setups .

Key Features (Bullet List)

    • Tri‑Band AX6000 Wi‑Fi 6 (2.4 GHz + 2×5 GHz)

    • Dual 5 GHz radios dedicated for device & backhaul usage

    • 4×4 MU‑MIMO, OFDMA, Beamforming+

    • Quad‑core 710 MHz CPU per unit

    • Multi‑Gig Ethernet: 2.5 GbE WAN/LAN + link aggregation

    • VLAN, WPA3, 4 SSIDs, guest/IoT segmentation

    • NETGEAR Insight cloud management with remote access

    • Expandable scalability—up to 100 devices & 21,000 ft²

SpecificationDetail
Model Number SXK80‑100NAS (One SXR80 + one SXS80)
Product Type Tri‑Band Mesh Wi‑Fi 6 System (AX6000)
Wi‑Fi Standard IEEE 802.11ax (Wi‑Fi 6)
Theoretical Throughput Up to 6 Gbps (2.4GHz + 2×5GHz)
Coverage Area 6,000 ft²; up to 21,000 ft² with 3 satellites
MU‑MIMO / OFDMA Yes; 4×4 across bands
CPUs Quad‑core 710 MHz each unit
Ethernet Ports (Router) 1× 2.5 GbE WAN + 4× 1 GbE LAN (2 support link aggregation)
Ethernet Ports (Satellite) 1× 2.5 GbE LAN + 4× 1 GbE LAN (2 support link aggregation)
SSIDs / VLANs Four SSIDs: Admin, Employee, Guest, IoT; VLAN support
Security Protocols WPA3, WPA2, guest network isolation, VLAN segmentation
Cloud Management NETGEAR Insight (1‑year included)
Antennas 8 high-performance internal per unit
TWT Support Yes, for IoT battery optimization
Dimensions (H×W×D) 9.7 × 3.3 × 6.8 in (246 × 84 × 173 mm)
Weight ~2.06 lb (936 g) each
