Netgear RBK763S-100NAS Orbi Tri Band WiFi Mesh Router System View larger

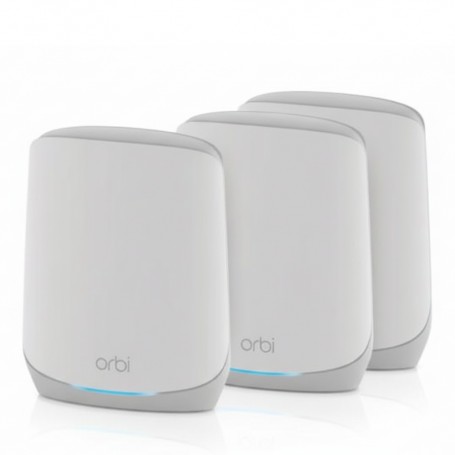

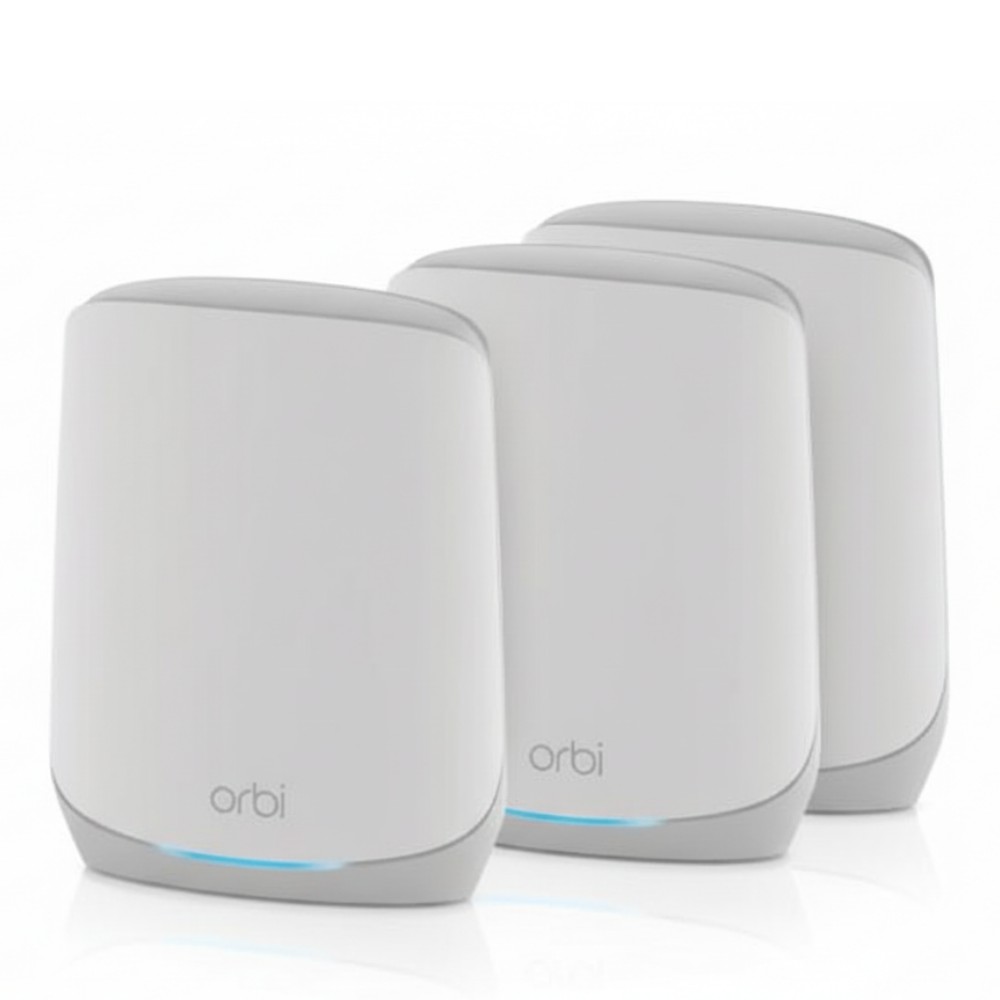

Netgear RBK763S-100NAS Orbi Tri Band WiFi Mesh Router System

New

Mesh WiFi 6 System – AX5400 / Tri‑band
×




  • New

Detailed Specifications

NETGEAR RBK763S-100NAS– Tri‑Band Mesh WiFi 6 System

Overview

The NETGEAR RBK763S is a tri‑band mesh WiFi 6 system comprising one router and two satellites, designed to deliver high-speed wireless coverage in medium to large environments. It offers a dedicated 5 GHz backhaul band to ensure consistent performance across the network. Ideal for deployments in homes, small offices, or branch environments, it supports seamless roaming and can be managed via the NETGEAR Orbi app or web interface.

Key Features

  • Dedicated 5 GHz backhaul band

  • AX5400 tri‑band throughput (600 + 2400 + 2400 Mbps)

  • Supports up to 75 concurrent devices

  • 7 × Gigabit Ethernet ports (router + satellites)

Technical Specifications

SpecificationValue
Brand NETGEAR
Part Number RBK763S-100NAS
Product Type Tri‑band Mesh WiFi 6 System
WiFi Standard IEEE 802.11ax / 802.11ac / 802.11n / 802.11a/b/g
Aggregate Wireless Throughput Up to 5.4 Gbps (600 + 2400 + 2400 Mbps)
Processor Dual-core 1 GHz
Memory 1 GB RAM + 4 GB eMMC Flash
Ethernet Ports (Router) 1 × WAN + 3 × LAN (Gigabit)
Ethernet Ports (Each Satellite) 2 × LAN (Gigabit)
Antennas 4 internal high-performance antennas (per unit)
Coverage (Indoor) Up to 7,500 ft²
Supported Clients Up to 75 devices simultaneously
Operating Temperature 0 °C to 40 °C
Dimensions (each unit) 211 × 168 × 64 mm
Weight (each unit) ~0.73 kg
Security WPA / WPA2 / WPA3 (where supported)
Included Security Subscription NETGEAR Armor (1-year)
