Detailed Specifications

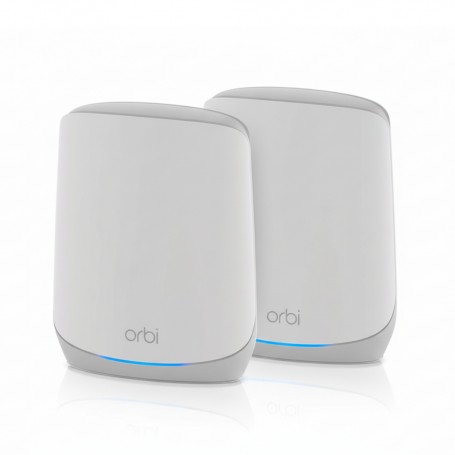

NETGEAR RBK762S-100NAS Tri-Band Mesh WiFi 6 System
Overview
This is a mesh WiFi 6 system (router + satellite) aimed at users wanting broad, consistent wireless coverage in homes or small offices. It supports tri-band operation with a dedicated backhaul to maintain throughput as nodes scale. It's suited for mid-sized deployments (e.g. residential, small branch, campus zones). The units can be managed via the Netgear Orbi app or web interface and integrate into existing networks.
Key Features
Dedicated 5 GHz backhaul link
AX5400 tri-band throughput
Supports up to 75 concurrent devices
5 × Gigabit Ethernet ports (router + satellite)
Technical Specifications
| Specification | Value |
|---|
| Brand | NETGEAR |
| Part Number | RBK762S-100NAS |
| Product Type | Tri-band Mesh WiFi 6 System |
| WiFi Standard | IEEE 802.11ax / 802.11ac / 802.11n / 802.11a/b/g |
| Aggregate Wireless Throughput | Up to 5.4 Gbps (600 + 2400 + 2400 Mbps) |
| Processor | Dual-core 1 GHz |
| Memory | 1 GB RAM + 4 GB eMMC Flash |
| Ethernet Ports (Router) | 1 × WAN + 3 × LAN, all 10/100/1000 Mbps |
| Ethernet Ports (Satellite) | 2 × LAN 10/100/1000 Mbps |
| Antennas | 4 internal high-gain per unit |
| Coverage (Indoor) | Up to ~5,000 ft² |
| Supported Clients | Up to 75 devices |
| Power Input | 100-240 V AC, 50-60 Hz |
| Operating Modes | Router, Satellite (mesh) |
| Security | WPA / WPA2 / WPA3 (where supported) |
| Dimensions (each unit) | 211 × 168 × 64 mm |
| Weight (each unit) | ~0.73 kg |
