Detailed Specifications

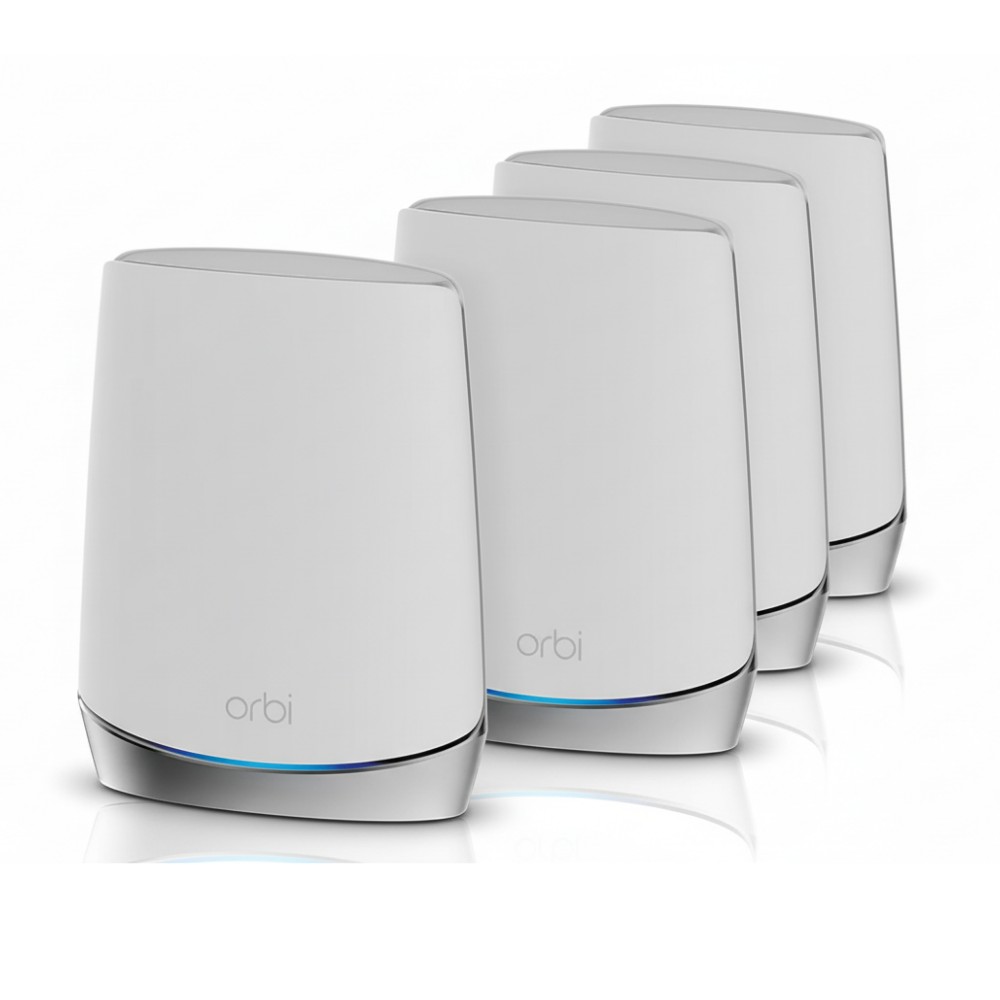

NETGEAR RBK754P-100NAS Orbi AX5200 Tri-Band Mesh System
Overview
The RBK754P-100NAS is a tri-band WiFi 6 mesh system comprising one router and three satellites, intended for large homes or multi-story dwellings requiring broad, uniform coverage. It offers aggregate throughput up to 5.2 Gbps with a dedicated 5 GHz backhaul channel separating mesh traffic. It is suited for residences where high device density and seamless roaming are needed. The system is managed through the Orbi app and includes security features such as NETGEAR Armor.
Key Features
AX5200 total throughput (400 + 2400 + 2400 Mbps)
Dedicated 5 GHz backhaul band to isolate mesh traffic
Covers up to 10,000 ft² with 4 units
Supports up to 75 connected devices
Technical Specifications
| Specification | Value / Detail |
|---|
| Brand | NETGEAR |
| Part Number | RBK754P-100NAS |
| Product Type | Tri-band WiFi 6 Mesh System (1 router + 3 satellites) |
| WiFi Standard | IEEE 802.11ax / ac / n / a / b / g |
| Aggregate Throughput | Up to 5.2 Gbps (AX5200 class) |
| Band Speeds | 2.4 GHz: 400 Mbps; 5 GHz (fronthaul): 2400 Mbps; backhaul: 2400 Mbps |
| Coverage Area (all 4 units) | Up to 10,000 ft² |
| Concurrent Devices Supported | Up to 75 devices |
| Ethernet Ports (Router) | 1 × Gigabit WAN + 3 × Gigabit LAN |
| Ethernet Ports (Satellite) | 2 × Gigabit LAN per satellite |
| Memory / Flash (Router) | 1 GB RAM + 4 GB eMMC flash |
| Processor (Router) | Dual-core 1.0 GH |
