Detailed Specifications

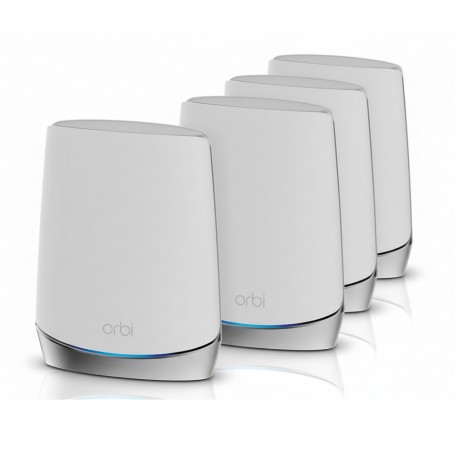

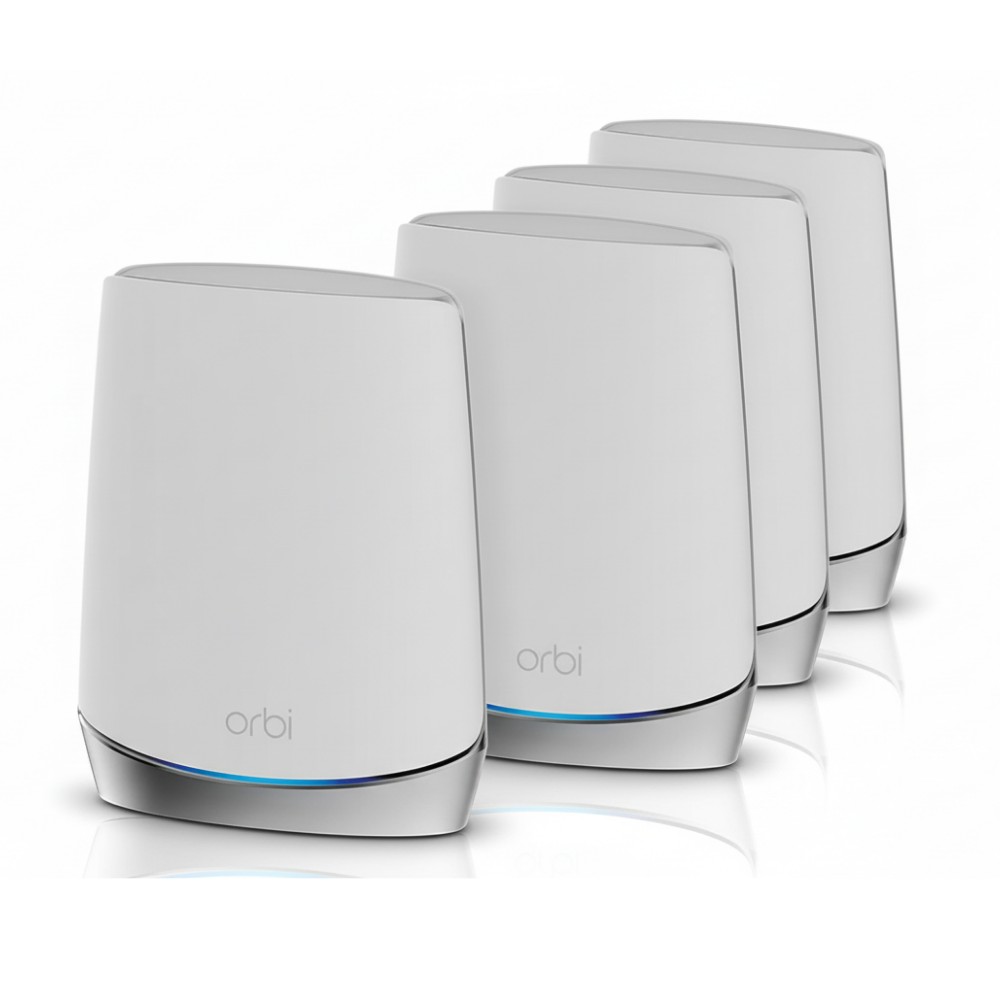

NETGEAR RBK754-100NAS Orbi AX4200 Mesh WiFi Kit
Overview
The RBK754-100NAS is a four-unit (1 router + 3 satellites) tri-band WiFi 6 mesh system designed for large homes or properties requiring extensive coverage. It delivers up to 4.2 Gbps aggregate throughput with a dedicated 5 GHz backhaul channel to separate mesh traffic. It targets environments with many rooms, multiple floors, or heavy device density. It is managed via the Orbi app and includes NETGEAR Armor for network security.
Key Features
AX4200 tri-band (600 + 1200 + 2400 Mbps)
Dedicated 5 GHz backhaul link
Covers up to ~10,000 ft²
Router: 1 WAN + 3 LAN; each satellite: 3 LAN
Technical Specifications
| Specification | Value / Detail |
|---|
| Brand | NETGEAR |
| Part Number | RBK754-100NAS |
| Product Type | Tri-band WiFi 6 Mesh System (1 router + 3 satellites) |
| WiFi Standard | IEEE 802.11ax / 802.11ac / 802.11n / a / b / g |
| Aggregate Throughput | Up to 4.2 Gbps (AX4200 class) |
| Coverage (4 units) | Up to 10,000 ft² |
| Client Device Support | Over 40 devices |
| Router Ethernet Ports | 1 × Gigabit WAN + 3 × Gigabit LAN |
| Satellite Ethernet Ports | 3 × Gigabit LAN per satellite |
| Processor (Router) | Quad-core 1.4 GHz |
| Internal Memory (Router) | 1 GB RAM + 512 MB flash |
