Detailed Specifications
NETGEAR RBK753-100NAS - Orbi AX4200 Mesh WiFi System
Overview

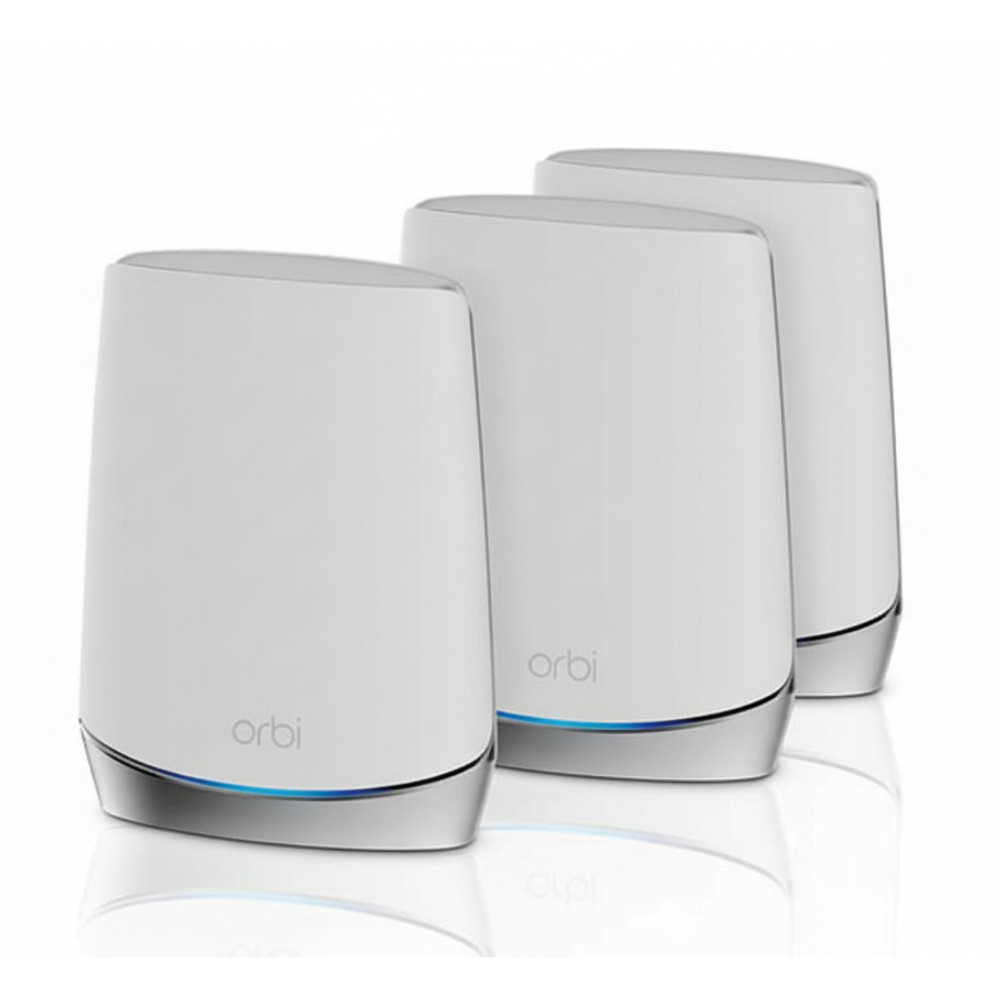

The RBK753-100NAS is a tri-band mesh WiFi 6 kit comprising one router and two satellites, intended for residential or light commercial broadband scenarios needing strong coverage. It offers AX4200 aggregate throughput with a dedicated 5 GHz backhaul for isolating mesh traffic. It is deployed in medium to large homes (e.g. multi-story) to eliminate dead zones. It integrates with the Orbi app for setup, monitoring, firmware, and includes NETGEAR Armor security features.
Key Features
AX4200 total throughput (600 + 1200 + 2400 Mbps)
Dedicated 5 GHz backhaul channel
8 Gigabit Ethernet ports across nodes
Supports over 40 client devices
Technical Specifications
| Specification | Value / Detail |
|---|
| Brand | NETGEAR |
| Part Number | RBK753-100NAS |
| Product Type | Tri-band WiFi 6 Mesh System (1 router + 2 satellites) |
| WiFi Standard | IEEE 802.11ax / ax / ac / n / a / b / g |
| Aggregate Throughput | Up to 4.2 Gbps (AX4200 class) |
| Coverage | Up to 7,500 ft² (~696 m²) |
| Number of Devices Supported | 40+ devices |
| Router Ethernet Ports | 1 × Gigabit WAN + 3 × Gigabit LAN |
| Satellite Ethernet Ports | 2 × Gigabit LAN per satellite |
| Internal Memory / Flash | 1 GB RAM + 512 MB flash (router) |
