Detailed Specifications
NETGEAR RBK663-100NAS - Orbi AX3800 Mesh System
Overview

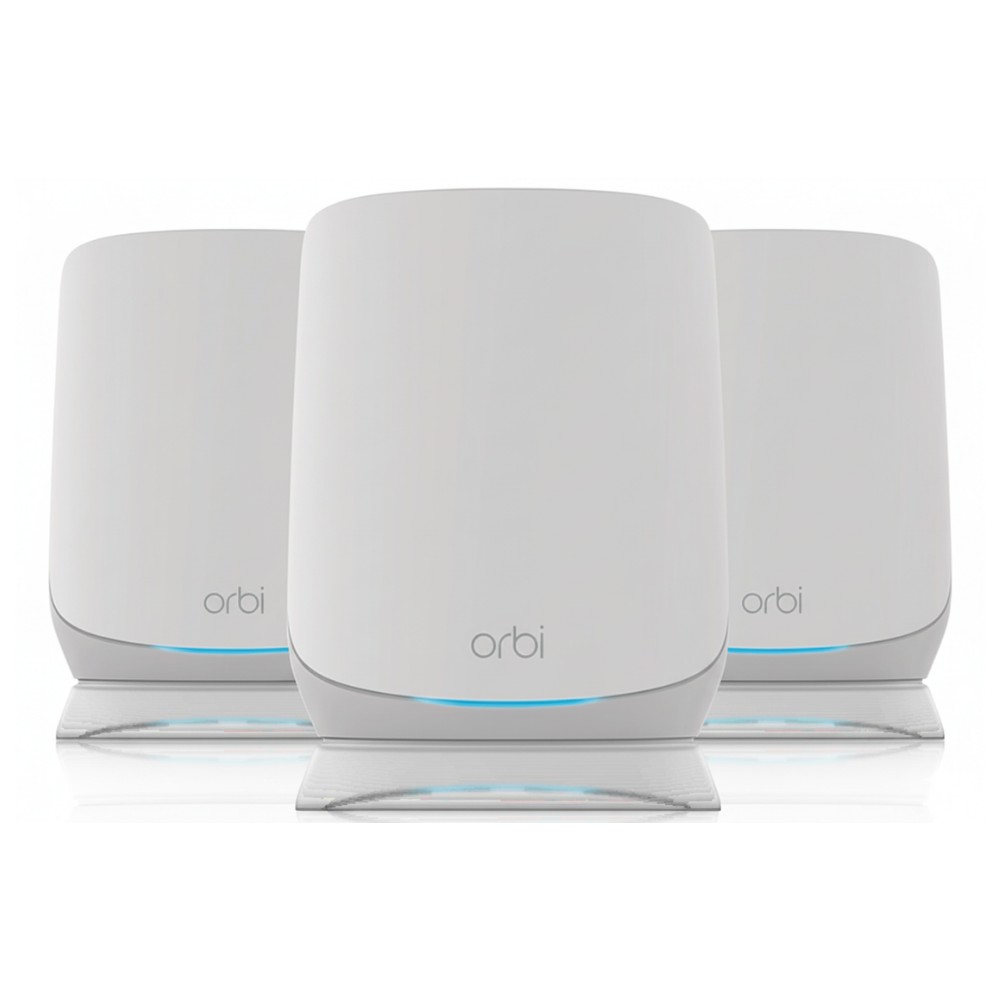

The RBK663-100NAS is a tri-band WiFi 6 mesh system composed of one router and two satellites, used in homes or small offices to eliminate wireless dead zones. It supports AX3800 aggregate throughput and uses a dedicated 5 GHz backhaul band to separate mesh traffic. The system is intended for medium to large residence deployment. It is managed via the Orbi mobile app and includes NETGEAR Armor security features.
Key Features
AX3800 tri-band throughput (492 + 960 + 2400 Mbps)
Dedicated 5 GHz backhaul band
Router: 3 × LAN + 1 × WAN Gigabit ports
Satellites: 2 × Gigabit LAN ports each
Technical Specifications
| Specification | Value / Detail |
|---|
| Brand | NETGEAR |
| Part Number | RBK663-100NAS |
| Product Type | Tri-band WiFi 6 mesh system (router + 2 satellites) |
| WiFi Standard | IEEE 802.11ax / WiFi 6 |
| Aggregate Throughput | Up to 3.8 Gbps (AX3800 class) |
| Coverage Area | Up to 6,600 ft² |
| Maximum Client Devices | Up to 75 devices |
| Router Ethernet Ports | 1 × Gigabit WAN, 3 × Gigabit LAN |
| Satellite Ethernet Ports | 2 × Gigabit LAN per satellite |
| Processor / Memory (Router) | Dual-core 1.0 GHz, 4 GB eMMC + 1 GB RAM |
| Antennas | 6 internal high-gain antennas in each unit |
