Detailed Specifications

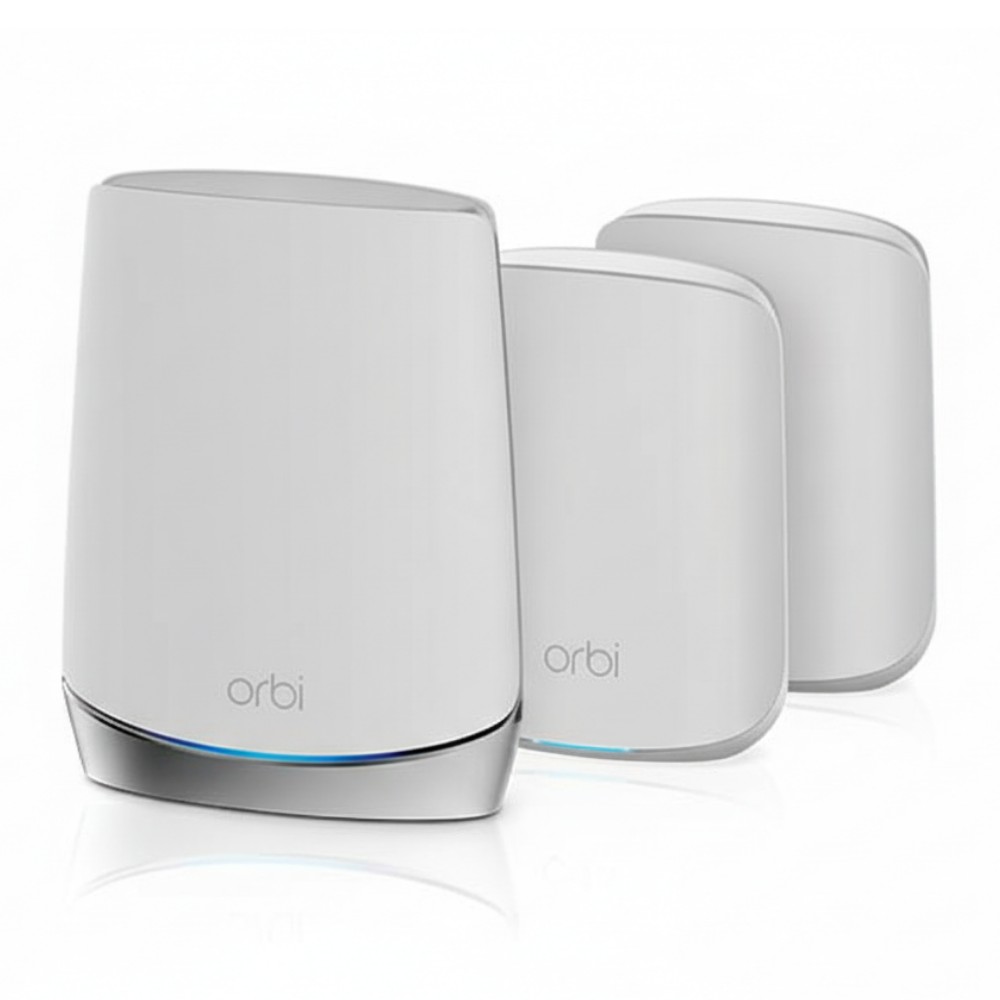

NETGEAR RBK653-100NAS - Orbi AX3000 Mesh System
Overview
The RBK653-100NAS is a tri-band mesh WiFi 6 system comprised of one router and two satellites, designed to blanket homes with high-speed wireless coverage. It delivers up to 3 Gbps aggregated throughput (AX3000 class) while separating backhaul traffic on a dedicated band. It is suited for medium to large residences and supports up to 40 client devices. It operates under the Orbi app environment and includes a one-year subscription to NETGEAR Armor for network security.
Key Features
AX3000 tri-band mesh (2.4 + 5 + 5 GHz)
Dedicated 5 GHz backhaul band
Router: 3 × LAN + 1 WAN Gigabit ports
Satellite: 2 × LAN ports each
Technical Specifications
| Specification | Value / Detail |
|---|
| Brand | NETGEAR |
| Part Number | RBK653-100NAS |
| Product Type | Tri-band WiFi 6 Mesh System (1 router + 2 satellites) |
| WiFi Standard | IEEE 802.11ax / ax / ac / n / a / b / g |
| Aggregate Throughput | Up to 3 Gbps (AX3000 class) |
| Coverage Area | Up to 6,000 ft² (approx.) |
| Number of Clients Supported | Up to 40 devices |
| Router Ethernet Ports | 1 × WAN + 3 × LAN (Gigabit) |
| Satellite Ethernet Ports | 2 × LAN (Gigabit) per satellite |
| CPU / Memory (Router) | Quad-core 1.4 GHz CPU, 1 GB RAM, 512 MB flash |
