Detailed Specifications
NETGEAR RBK652S-100NAS - Orbi AX3000 Mesh System
Overview

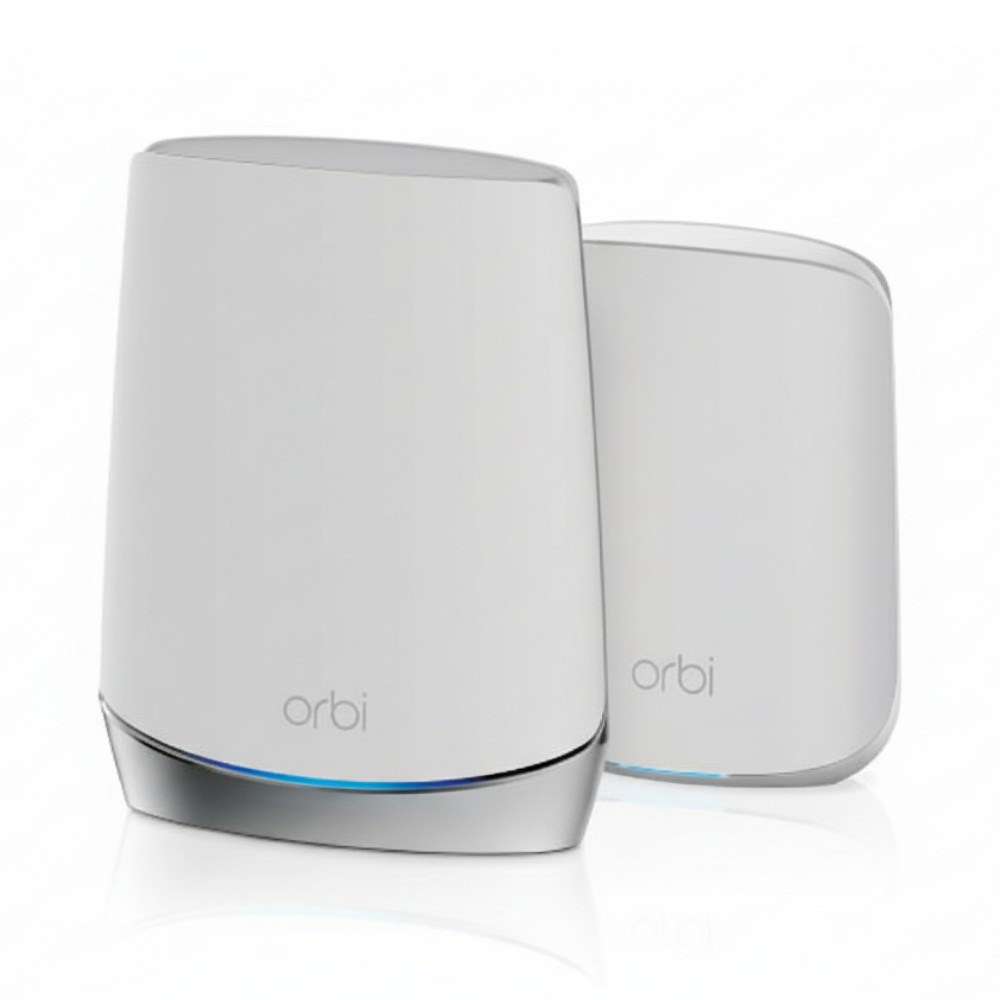

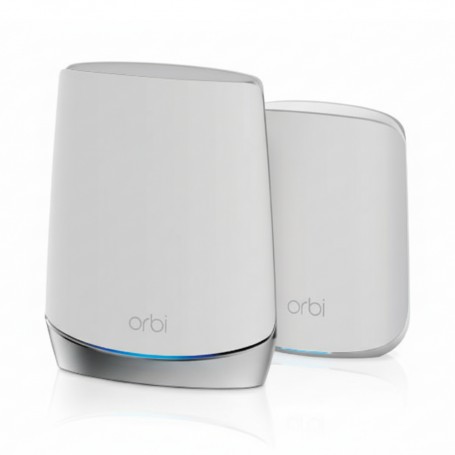

The RBK652S-100NAS is a tri-band WiFi 6 mesh kit (router + satellite) designed to deliver full-home wireless coverage with minimal dead zones. It aggregates up to 3 Gbps across its bands and uses a dedicated backhaul link to separate mesh traffic from client data. It is suited for medium to large homes or multi-floor residential deployments. It integrates with the Orbi mobile app and supports NETGEAR Armor security.
Key Features
AX3000 tri-band system (600 + 1200 + 2400 Mbps)
Dedicated 5 GHz backhaul for mesh link
Quad-core 1.4 GHz router + quad-core 1.8 GHz satellite
Up to 3,500 ft² coverage with one satellite
Technical Specifications
| Specification | Value / Detail |
|---|
| Brand | NETGEAR |
| Part Number | RBK652S-100NAS |
| Product Type | Tri-band WiFi 6 Mesh System (Router + Satellite) |
| WiFi Standard | IEEE 802.11ax / ax / ac / n / a / b / g |
| Aggregate Throughput | Up to 3 Gbps (AX3000 class) |
| Bands & Speeds | 2.4 GHz: 600 Mbps; 5 GHz: 1200 Mbps; 5 GHz backhaul: 2400 Mbp |
| Processors | Router: quad-core 1.4 GHz; Satellite: quad-core 1.8 GHz |
| Memory / Flash | Router: 1 GB RAM + 512 MB flash; Satellite: 512 MB RAM + 256 MB flash |
| Ethernet Ports (Router) | 1 × Gigabit WAN, 3 × Gigabit LAN |
| Ethernet Ports (Satellite) | 2 × Gigabit LAN |
| Antennas | Router: 6 internal high-gain; Satellite: 2 internal high-gain |
| Coverage (with one satellite) | Up to ~3,500 ft² |
| Security | WPA3-PSK, 128-bit AES, guest WiFi, NETGEAR Armor (1-year) |
| Beamforming / MU-MIMO | Implicit & explicit beamforming, MU-MIMO support |
