Detailed Specifications

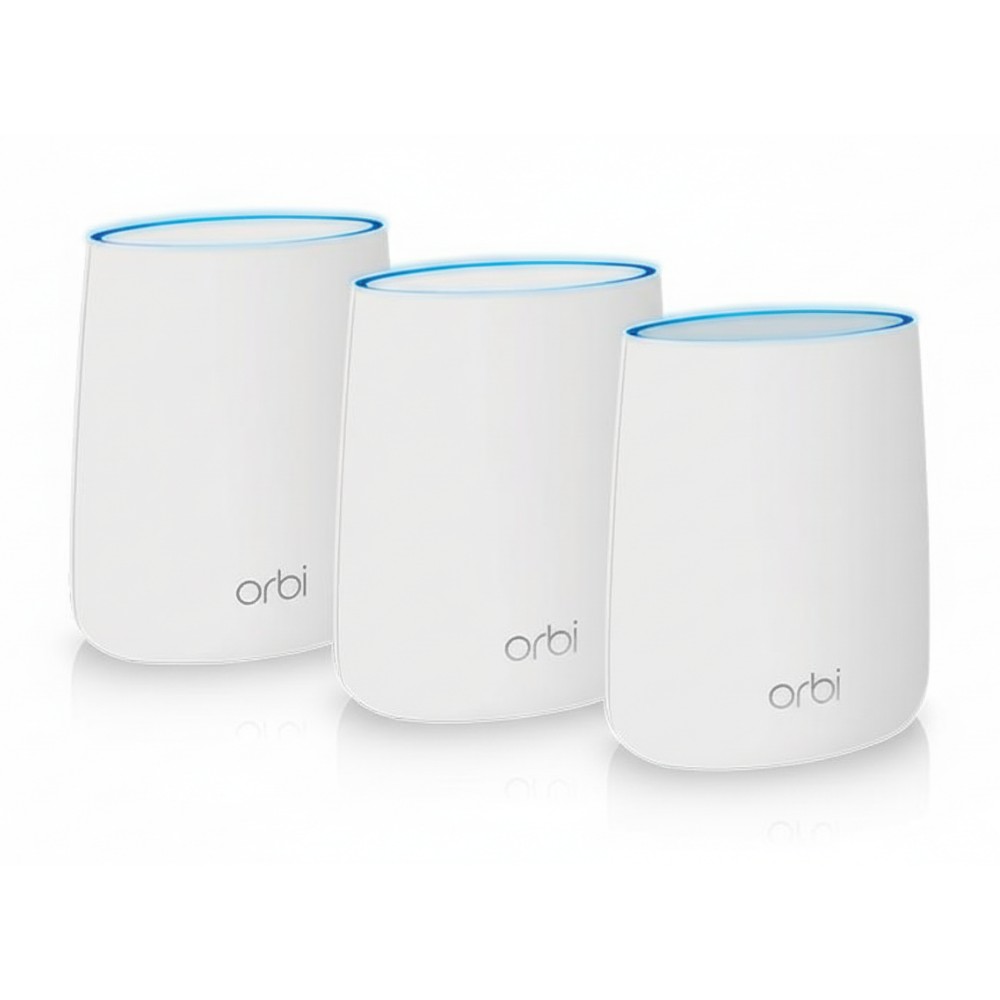

NETGEAR RBK23-100NAS - Orbi AC2200 Mesh WiFi Kit
Overview
The RBK23-100NAS is a tri-band mesh WiFi system combining a router and two satellites for whole-home coverage. It is used by homes or small offices to eliminate dead zones and maintain seamless connectivity. It offers AC2200 aggregate throughput and a dedicated 5 GHz backhaul channel to isolate inter-unit traffic. It is deployed in residences, multi-story homes, or medium campus-style houses. It integrates with the NETGEAR Orbi app for network setup, monitoring, and firmware management.
Key Features
AC2200 tri-band throughput (866+866+400 Mbps)
Quad-core 710 MHz CPU in router & satellites
Two Gigabit Ethernet ports per unit
Dedicated 5 GHz backhaul channel
Technical Specifications
| Specification | Value / Detail |
|---|
| Brand | NETGEAR |
| Part Number | RBK23-100NAS |
| Product Type | Mesh WiFi system (router + 2 satellites) |
| WiFi Standard | IEEE 802.11a/b/g/n/ac (tri-band) |
| Aggregate Throughput | 2,200 Mbps (866 + 866 + 400 |
| Radio Chain Configuration | 2×2 (2.4 GHz), 2×2 (5 GHz), 2×2 (5 GHz backhaul) |
| Processor (Each Unit) | Quad-core 710 MHz |
| Memory | 256 MB flash + 512 MB RAM |
| Ethernet Ports (Router) | 1 WAN + 1 LAN (Gigabit) |
| Ethernet Ports (Satellites) | 2 × Gigabit LAN per satellite |
| Coverage Area | Up to 6,000 ft² (approx.) |
| Physical Dimensions (each unit) | 5.6 × 2.4 × 6.6 in (142.4 × 60.9 × 167 mm) |
| Weight (each unit) | 476 g (≈ 1.05 lb) |
| Security Support | WPA / WPA2-PSK, guest WiFi |
