Detailed Specifications
NETGEAR RBE973SB-100NAS - Orbi 970 Series Quad-Band Mesh System
Overview

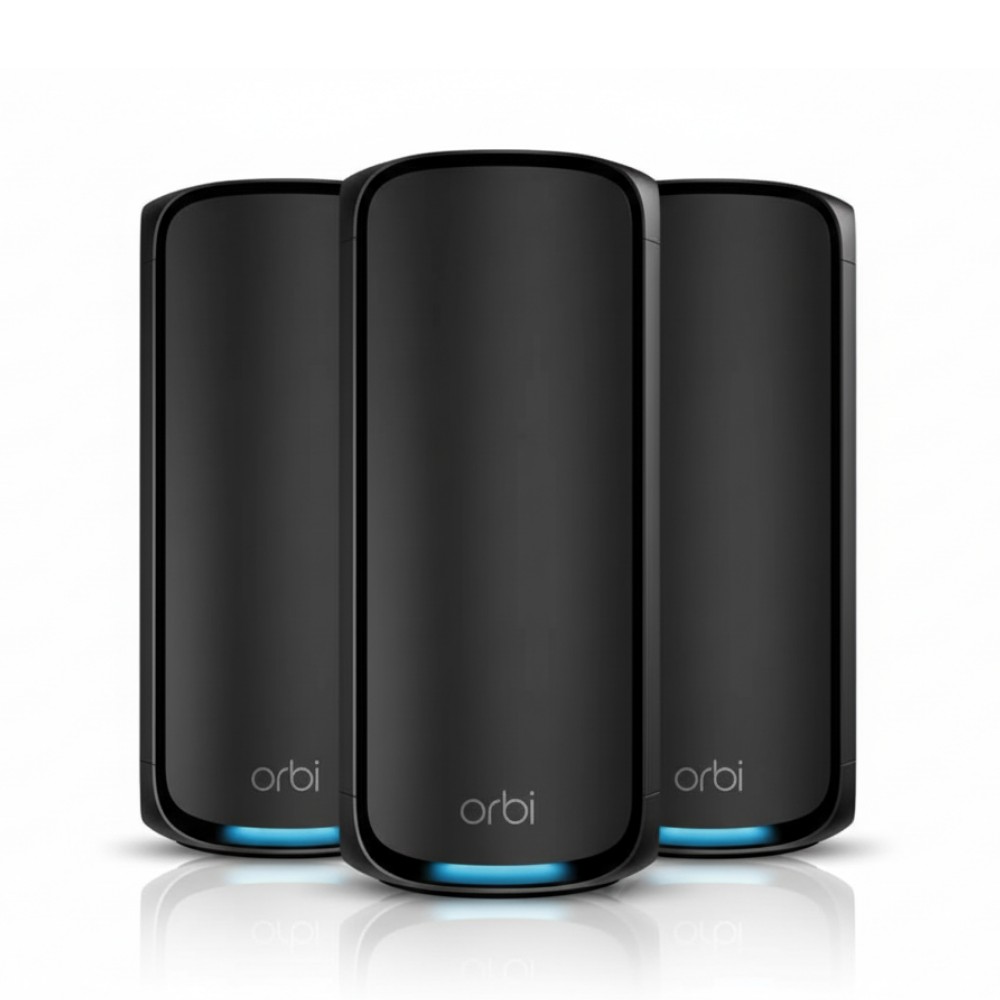

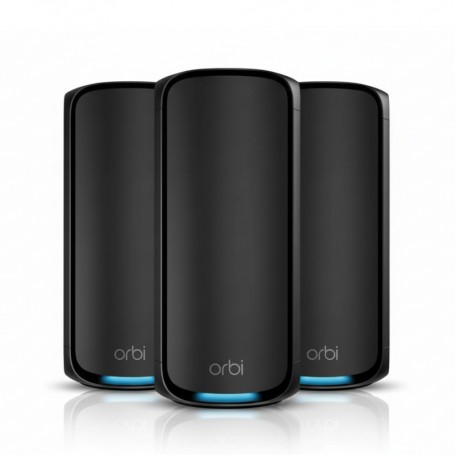

The NETGEAR RBE973SB-100NAS is a three-unit mesh WiFi 7 system (router + two satellites) built for full-home high-speed connectivity. It supports combined wireless throughput up to 27 Gbps using four simultaneous bands with a dedicated backhaul. Each unit contains multi-gig wired ports to support high-bandwidth clients or wired backhaul. The system is intended for large homes or multi-floor layouts needing seamless, wide coverage. Configuration and network management are handled via the Orbi app or web interface.
Key Features
Quad-band WiFi 7 with dedicated backhaul
Up to 27 Gbps combined throughput
Multi-gig Ethernet ports on all units
Coverage up to 10,000 sq ft (system)
| Attribute | Specification |
|---|
| Brand | NETGEAR |
| Part Number | RBE973SB-100NAS |
| Product Type | Mesh WiFi 7 System (Router + 2 Satellites) |
| Wireless Standard | IEEE 802.11be (WiFi 7) |
| Frequency Bands | 2.4 GHz + 5 GHz-1 + 5 GHz-2 + 6 GHz (quad-band) |
| Max Wireless Speed | 27 Gbps total (11,530 + 8,647 + 5,765 + 1,147 Mbps) |
| Coverage (System) | Up to 10,000 sq ft |
| Device Support | Up to 200 devices |
| Processor / Memory / Flash | Quad-core 2.2 GHz with 2 GB RAM + 4 GB flash |
| Router Wired Ports | 1 × 10G WAN, 1 × 10G LAN, 4 × 2.5G multi-gig LAN |
| Satellite Wired Ports | 1 × 10G LAN, 2 × 2.5G multi-gig LAN per satellite |
| Antennas | 12 internal antennas per unit |
