Detailed Specifications

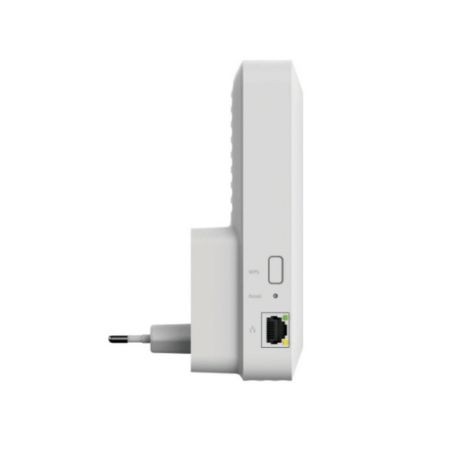

NETGEAR EAX17-100NAS WiFi 6 Mesh Extender
Overview :
The NETGEAR EAX17-100NAS is an AX3000 dual-band WiFi 6 mesh extender designed to expand an existing wireless network. It is intended for home and small-office deployments where additional WiFi coverage is required without replacing the primary router.
The extender provides up to 3 Gbps combined wireless throughput, with 600 Mbps on 2.4 GHz and 2400 Mbps on 5 GHz. A 1.3 GHz dual-core processor and 4-stream WiFi architecture support higher device capacity and bandwidth.
Connectivity includes one 10/100/1000 Gigabit Ethernet port for attaching a wired device. The unit supports One WiFi with Smart Roaming and can operate with existing 2.4 GHz and/or 5 GHz 802.11a/b/g/n/ac/ax routers or gateways.
It is designed for wall-outlet deployment rather than rack installation. It should not be selected where multi-port Ethernet switching, enterprise rack mounting, or WiFi 6E/7 capability is required.
Key Features :
- AX3000 WiFi 6 delivers up to 3 Gbps combined speed
- 600 Mbps 2.4 GHz and 2400 Mbps 5 GHz throughput
- One Gigabit Ethernet port supports wired connectivity
- 1.3 GHz dual-core processor supports demanding workloads
- Smart Roaming maintains one WiFi network across coverage
Specifications :
| Specification | Verified Value |
|---|
| Brand | NETGEAR |
| Part Number | EAX17-100NAS |
| Product Type | WiFi 6 Mesh Extender |
| WiFi Class | AX3000 |
| Maximum WiFi Speed | Up to 3 Gbps |
| 2.4 GHz Speed | 600 Mbps |
| 5 GHz Speed | 2400 Mbps |
| Wireless Standards | 802.11a/b/g/n/ac/ax |
| Ethernet Port | 1 × 10/100/1000 Gigabit Ethernet |
| Processor | 1.3 GHz dual-core |
| Antennas | 3 internal high-performance antennas |
| WiFi Security | WPA3, WPA-PSK, AES, WEP |
| Form Factor | Wall-plug extender |
| Compatibility | 2.4/5 GHz 802.11a/b/g/n/ac/ax router or gateway |
